The cart is used for transportation of headers and attachments with gripping width from 5 to 12 m, as well as sowing attachment with a mass of up to 4 000 kg along the general purpose roads, as well as field roads.
Trolley as part of the vehicle may:
While parked transporting trolley is used as an aid for unloading / loading mounting, removal) the header or attachments of harvester or vehicle.
The cart is used for transportation of headers and attachments with gripping width from 5 to 12 m, as well as sowing attachment with a mass of up to 4 000 kg along the general purpose roads, as well as field roads.
Trolley as part of the vehicle may:
- to move forward and reverse;
- duplicate the lights of the vehicle's electrical appliances.
While parked transporting trolley is used as an aid for unloading / loading mounting, removal) the header or attachments of harvester or vehicle.
About the availability of equipment and basic configuration check at the dealership
- Description
- Technical parameters
- Ask a question
-
Quality advantages of Uni Cart 4000
Multifunctionality
Beside its main work on reaper transportation, the trolleys can be used on parking as auxiliary equipment for unloading/loading (mounting/removal) the header or attachments of harvester or vehicle.

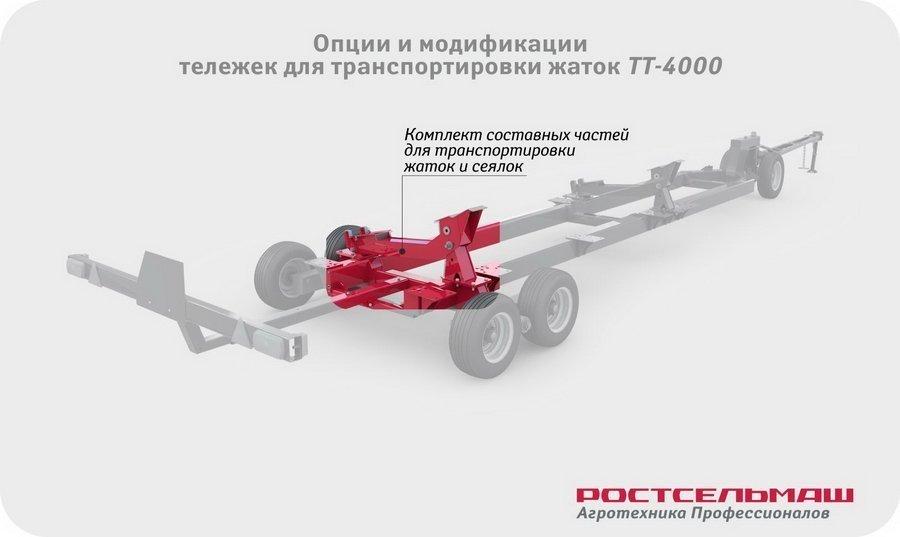

Transportation of sowing attachments

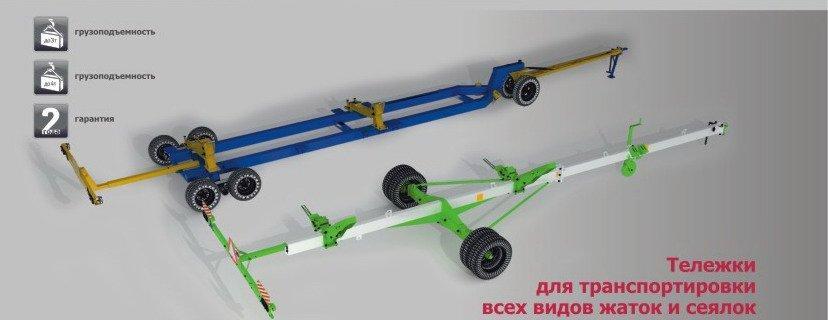

The trolleys can be used not only for transportation of headers and their devices, but for transportation of sowing attachments of various modifications

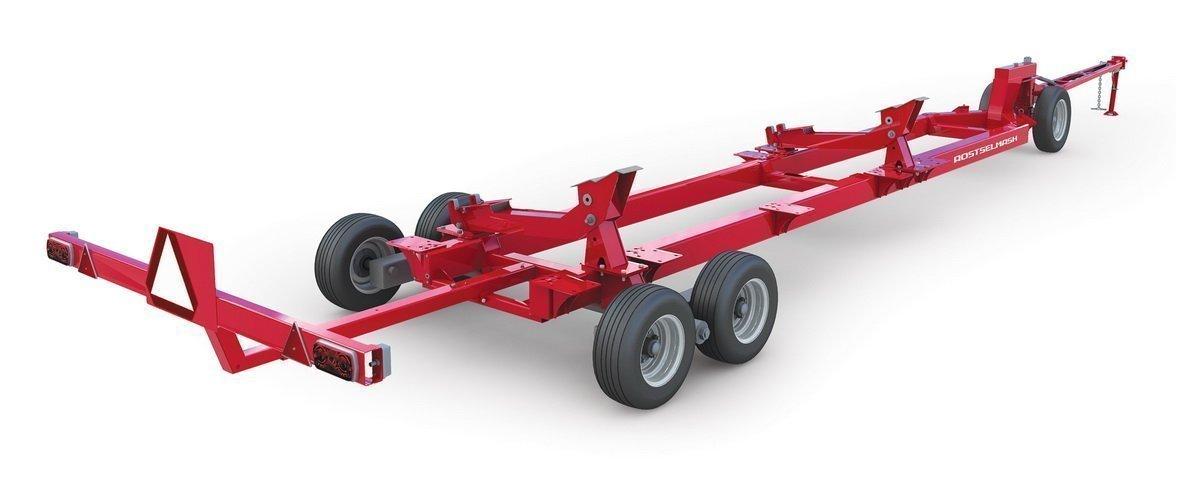

Distinctive feature of Uni Cart 4000 design
The machine feature is double-axle frame allowing to transport equipment weighing up to 4000 kg
High loads
Axle shaft (assembly) made of imported components is an additional reliability guarantee of the trolley structure. The trolleys successfully stand loads occurring when moving the general purpose roads, as well as field roads.
Safety requirements
During the movement, the trolleys can double the lights of towing vehicle. It provides convenience and safety during operation. -
Technical specification Model Uni Cart 4000 Uni Cart 3000 Uni Cart 3000-01 Type Trailed double-axe Trailed single-axe For transporting the headers with width, m 5-12 m. 5-7 m. 9 m. Overall dimensions of the device, mm, not more
- length
- width
- height
12 980
2 354
1 050
10 409±30
2 813
1 272
12 396±30
2 813
1 272МаDesign weight, kg, not more: 1400 756±22 811±24 Clearance under frame, mm, not less.
300 274 274 Load-lifting capacity, kg, not more 4000 3000 Transporting speed, km/h, not more:
without reaper
with header
on sharp turns and descends, km/h
30
20
5
25
20
5
25
20
5 -
