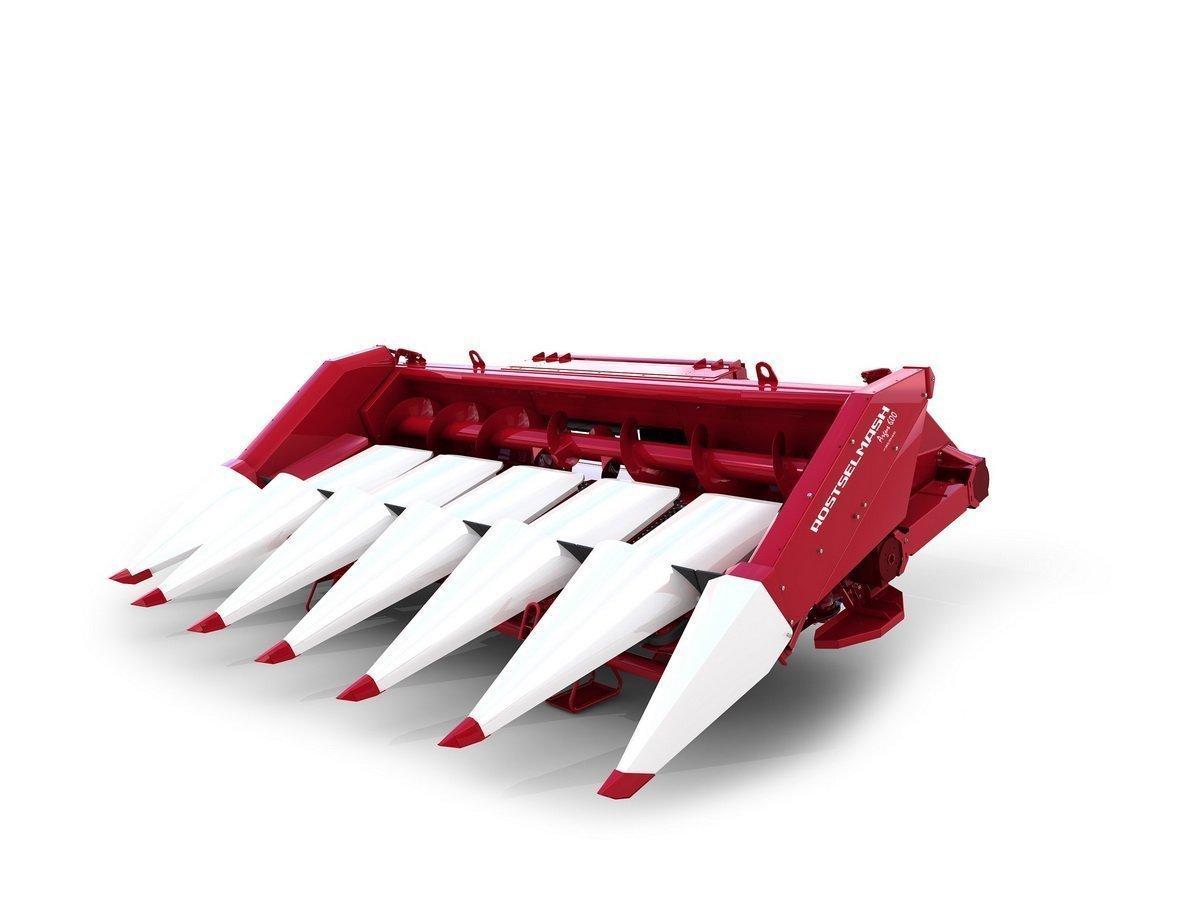

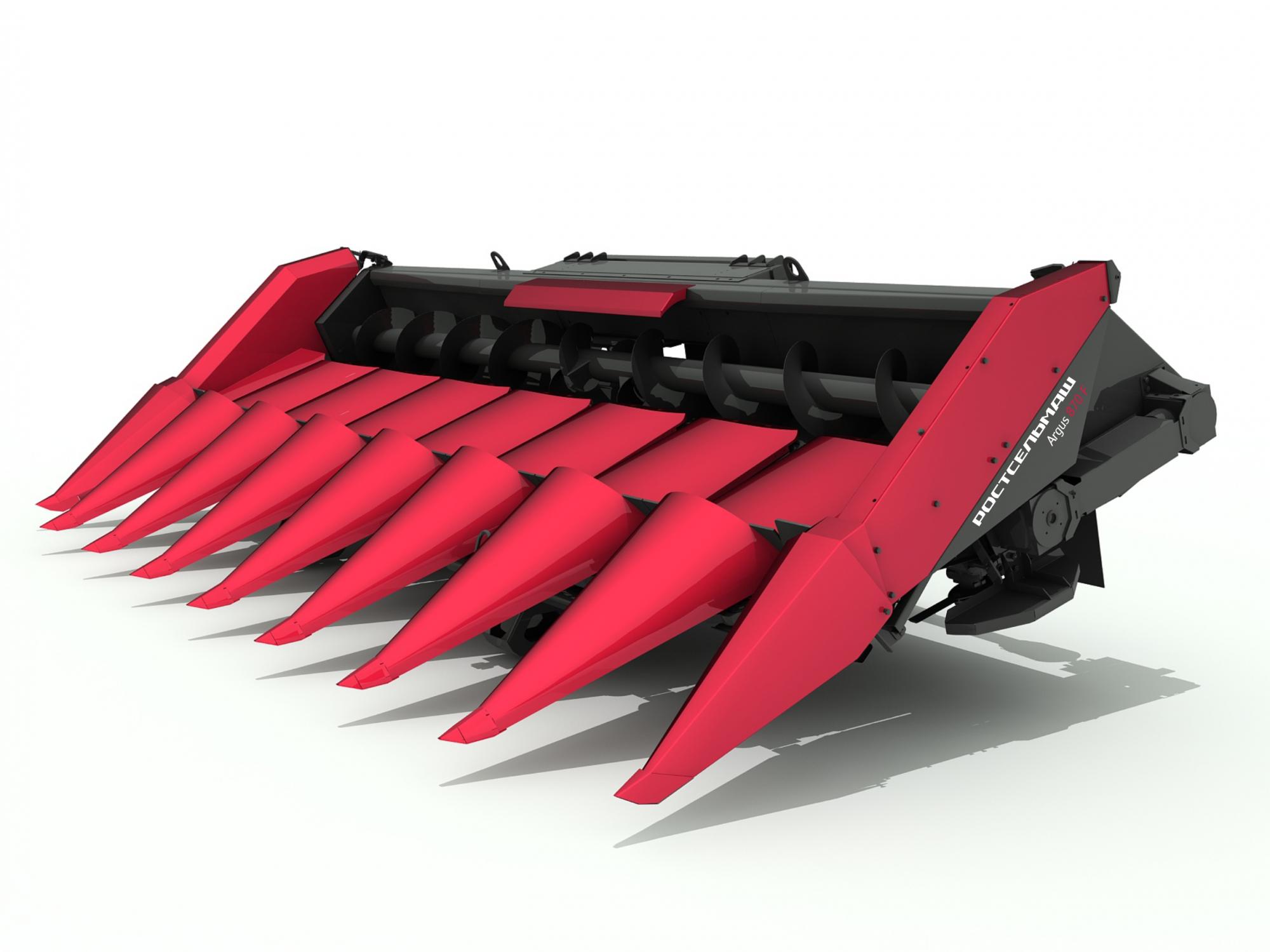

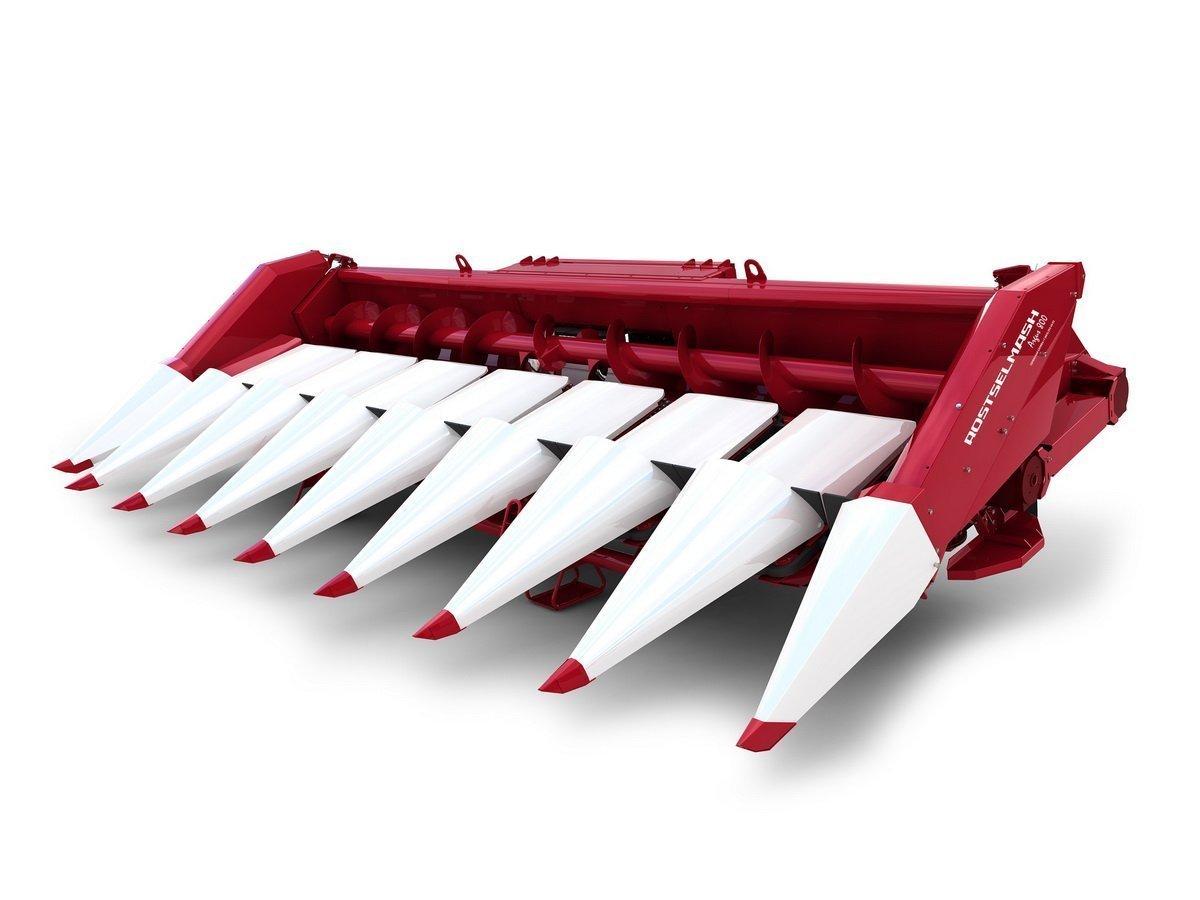

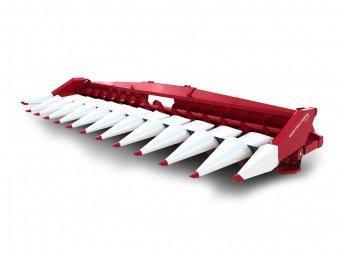

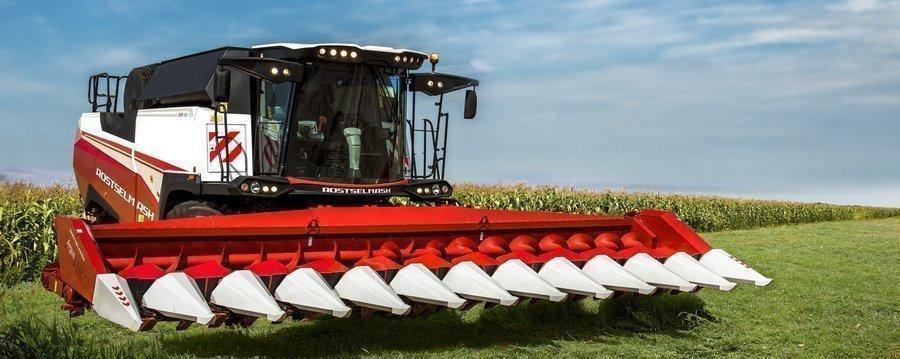

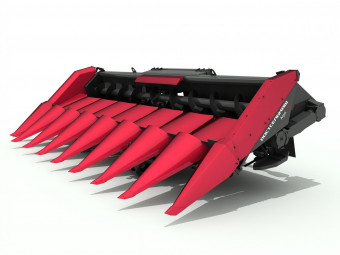

A series of highly productive 4- 6- 8- 12-row header ARGUS is designed for harvesting of technical maturity corn for food and fodder grain. Careful attitude to crop - the main operating principle of corn headers ARGUS. Corn headers in tandem with a highly productive self-propelled grain harvesting combine show excellent results. Convenient operation allows to work without hassle and special arrangements of preventing overloads ensure reliable exploitation. It is aggregated with all types of combine harvesters, including harvesters Niva.

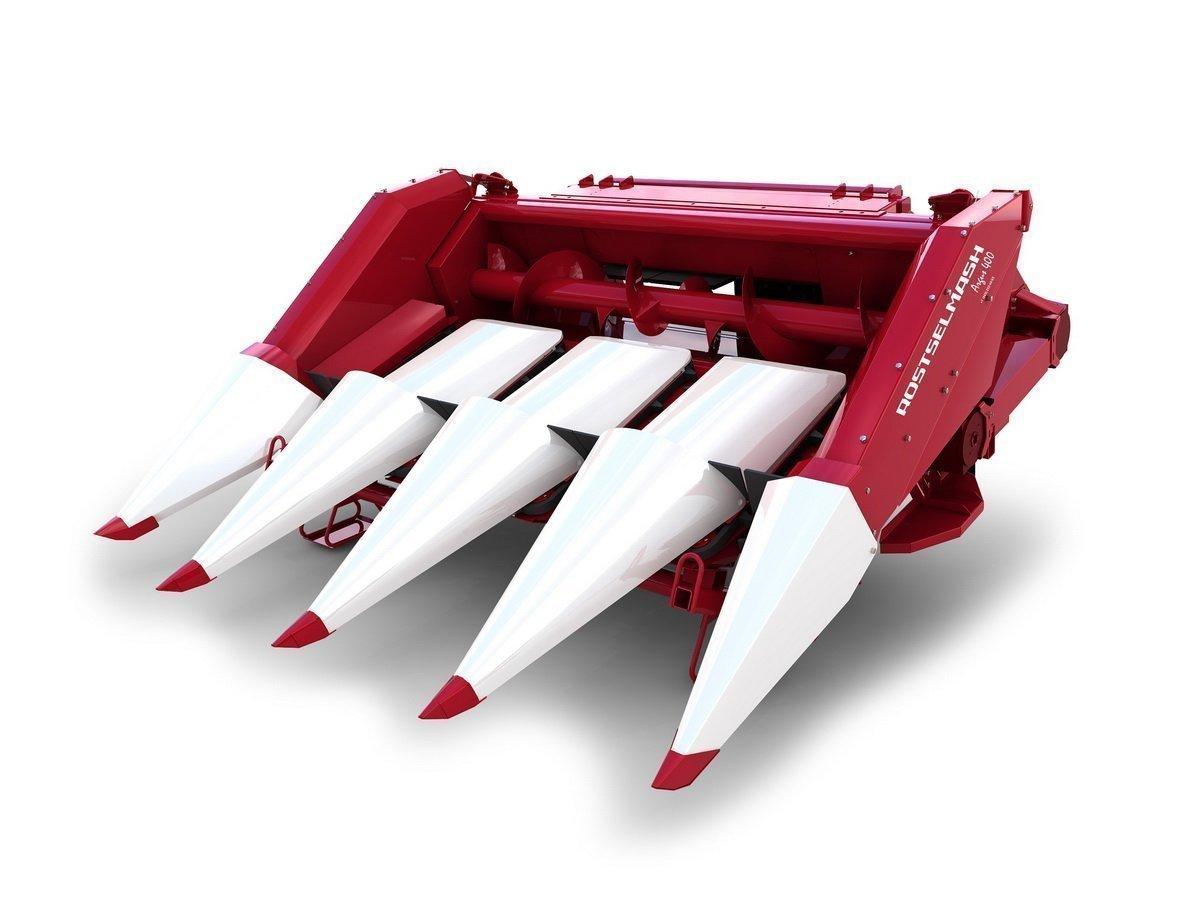

Novelty: 4-row corn header for combine harvester Niva.
Corn headers are supplied without multi connector, kit should be purchased from the harvester producer.
Options:
A series of highly productive 4- 6- 8- 12-row header ARGUS is designed for harvesting of technical maturity corn for food and fodder grain. Careful attitude to crop - the main operating principle of corn headers ARGUS. Corn headers in tandem with a highly productive self-propelled grain harvesting combine show excellent results. Convenient operation allows to work without hassle and special arrangements of preventing overloads ensure reliable exploitation. It is aggregated with all types of combine harvesters, including harvesters Niva.
Novelty: 4-row corn header for combine harvester Niva.
Corn headers are supplied without multi connector, kit should be purchased from the harvester producer.
Options:
- Conversion kit for harvesting sunflower
- Kit for harvester’s front wheels protection against the stubble
About the availability of equipment and basic configuration check at the dealership
- Description
- Technical parameters
- Video
- Ask a question
-
Quality advantages of corn headers ARGUS 470-1270
Easy setup

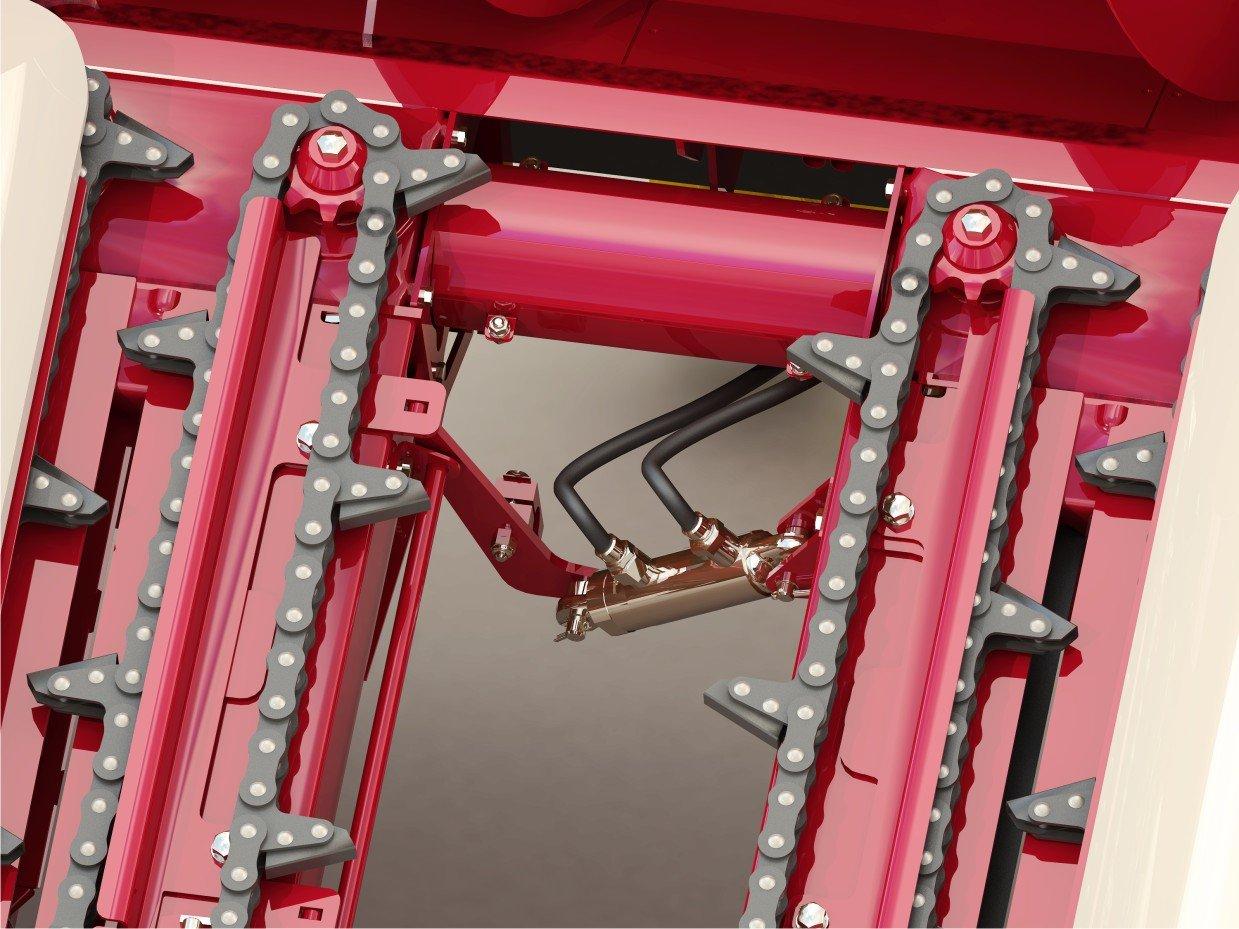

The design of the header to separate the cobs allows to regulate the distance between the plates from the harvester’s workplace. It allows to reduce setup time when cleaning different varieties of maize.
A rational scheme of drawing and grinding stems
Knife rolling press not only draw the stem, but preliminarily grind, splitting it lengthwise. Moreover, cleavage of the stem is done uniformly throughout its length. After grinding in the field there are not whole sections of the stems, but splitted along the grain small lengths of less than 100 mm, that are fully processed by soil during the season. Reduced the additional cost of processing field with heavy disc harrow are.
Additional safety
Header is equipped with reducers manufactured in Europe, which guarantee additional reliability and durability of the work.
Fortitude of drive mechanisms

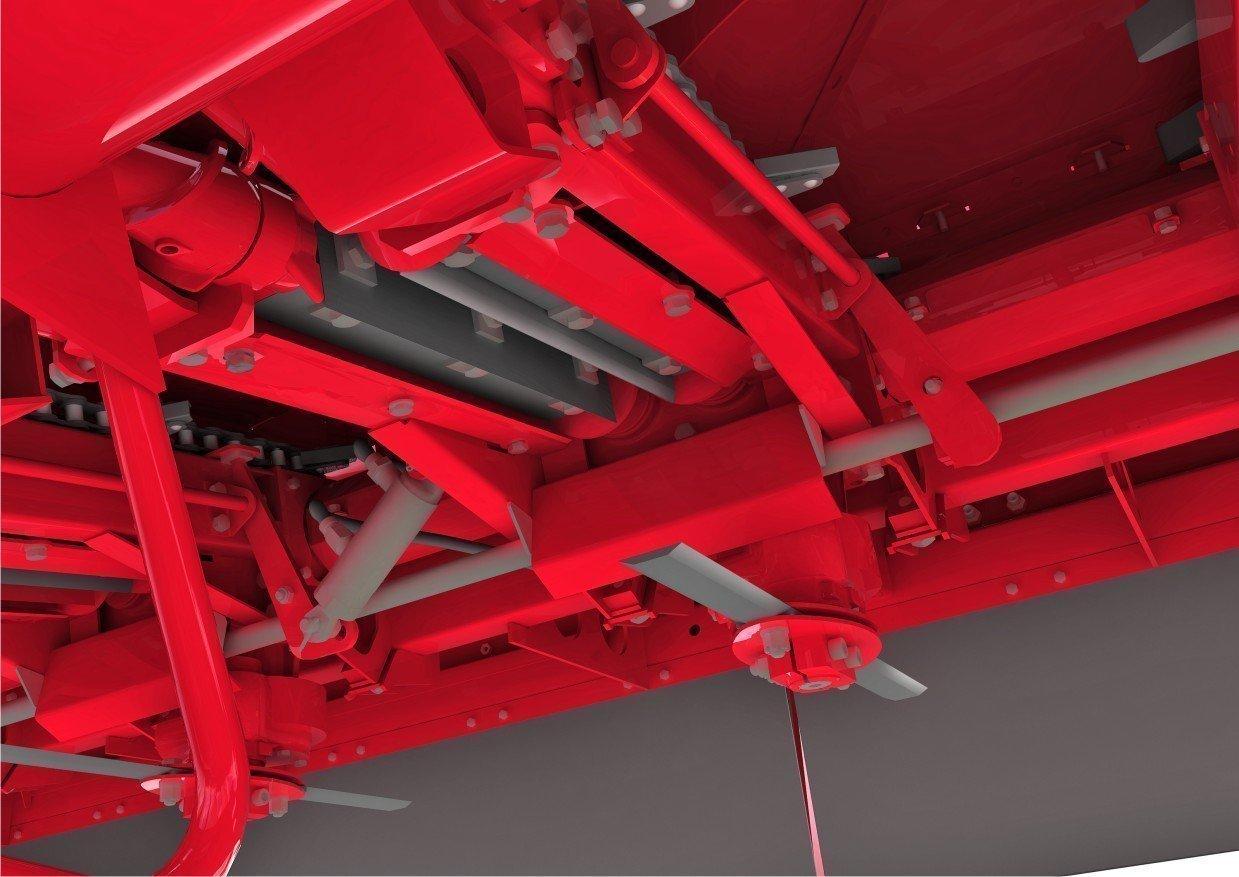

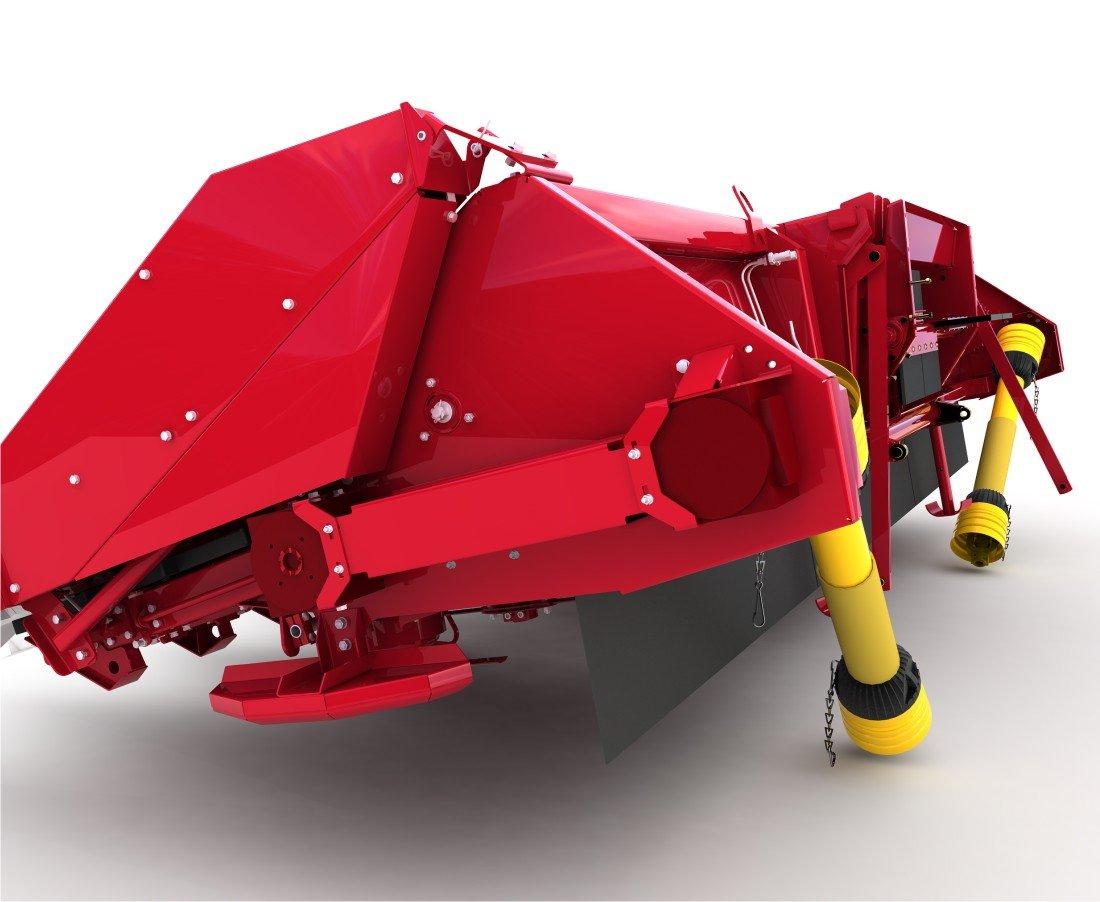

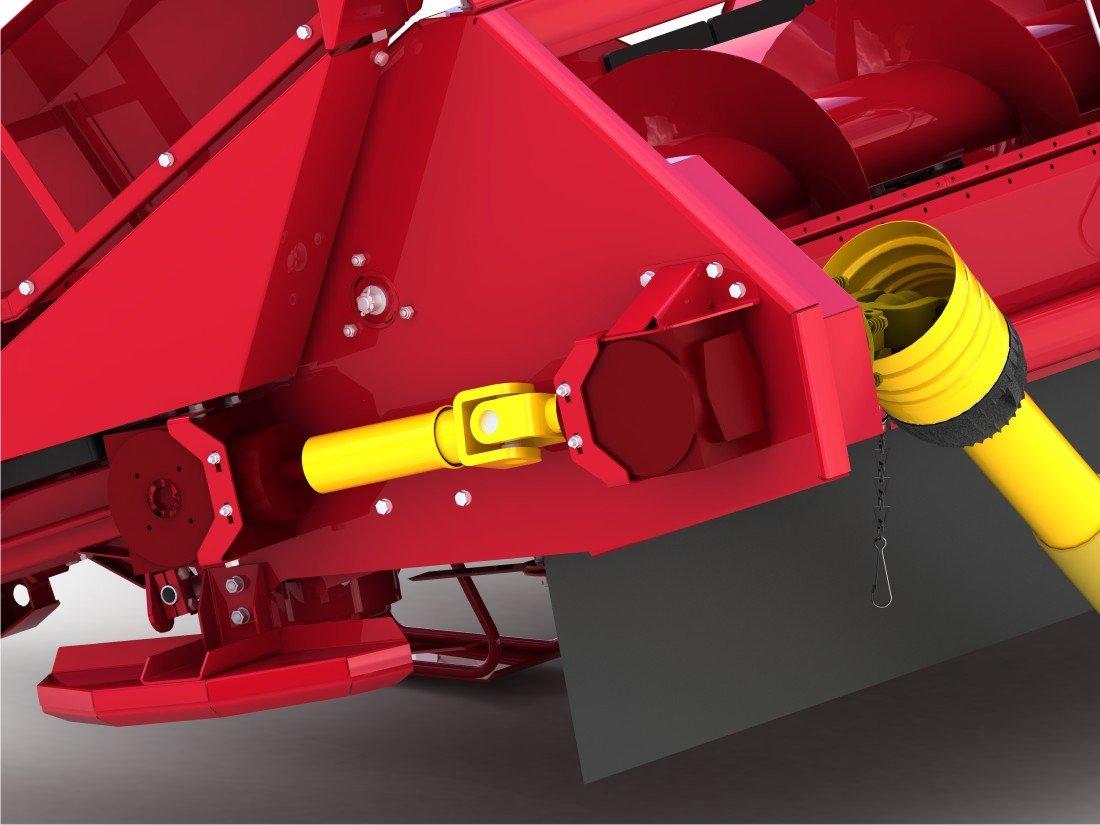

The machine has bilateral drive scheme, which consists of conical reducers and cardan gear. This scheme is much more reliable than the scheme, consisting of chain-drives, used in the analogues.
Durability of service
The system consisting of cardan shafts and conical reducers needs minimal maintenance during the season, and provides extremely reliable, durable and noiseless operation.
Saving of energy
Low weight and wide nomenclature allow header to be aggregated even with light harvesters without additional loads. Energy consumption and wheels pressure on the soil are reduced.Documents
Certificate of Conformity_09.06.2023_Argus Размер: 562,6 кб -
Technical specification Model Argus-470 Argus-670 Argus-870 Argus-1270 Type Mounted Efficiency, t/h, up to 6-9 9-13 14-25 20-40 Working width, m 2,8 4,2 5,6 8,6 Number of harvested rows, pcs 4 6 8 12 Row-spacing witdth, cm 70 Device weight (structural weight), kg, not more than 1300 1950 2450 3600 Operating forward speed, km / h, up to 9 9 9 8 Overall dimensions of the device in the operating position, mm, not more than:
- length
- width
- height
3920
2990
1600
3920
4390
1600
3920
6350
1600
3920
9500
1700Grain crushing by the device, % 3-6 Grain losses by the device, %, not more than 2,5 Header drive propeller type, through cone gearboxes -
-
