Adapters for harvesting machines
Forage-harvesting machinesTrailer sprayersFertilizationGrain-processing machinesAdapters for harvesting machinesMunicipal machinesTillage equipment
-
Header
Sunflower harvestingCorn harvestingPlatforms with a sorterCarts for transportation of harvesters
-Float Stream Multipurpose Close-Cutting Headers

Float Stream Multipurpose Close-Cutting Headers


  • Float Stream Multipurpose Close-Cutting Headers
  • Float Stream Multipurpose Close-Cutting Headers
  • Float Stream Multipurpose Close-Cutting Headers
  • Float Stream Multipurpose Close-Cutting Headers
  • Float Stream Multipurpose Close-Cutting Headers
  • Float Stream Multipurpose Close-Cutting Headers
  • Float Stream Multipurpose Close-Cutting Headers
  • Float Stream Multipurpose Close-Cutting Headers
  • Float Stream Multipurpose Close-Cutting Headers
Order
Ширина захватаШирина захватаШирина захватаШирина захватаКопирование рельефаВысота срезаГарантия

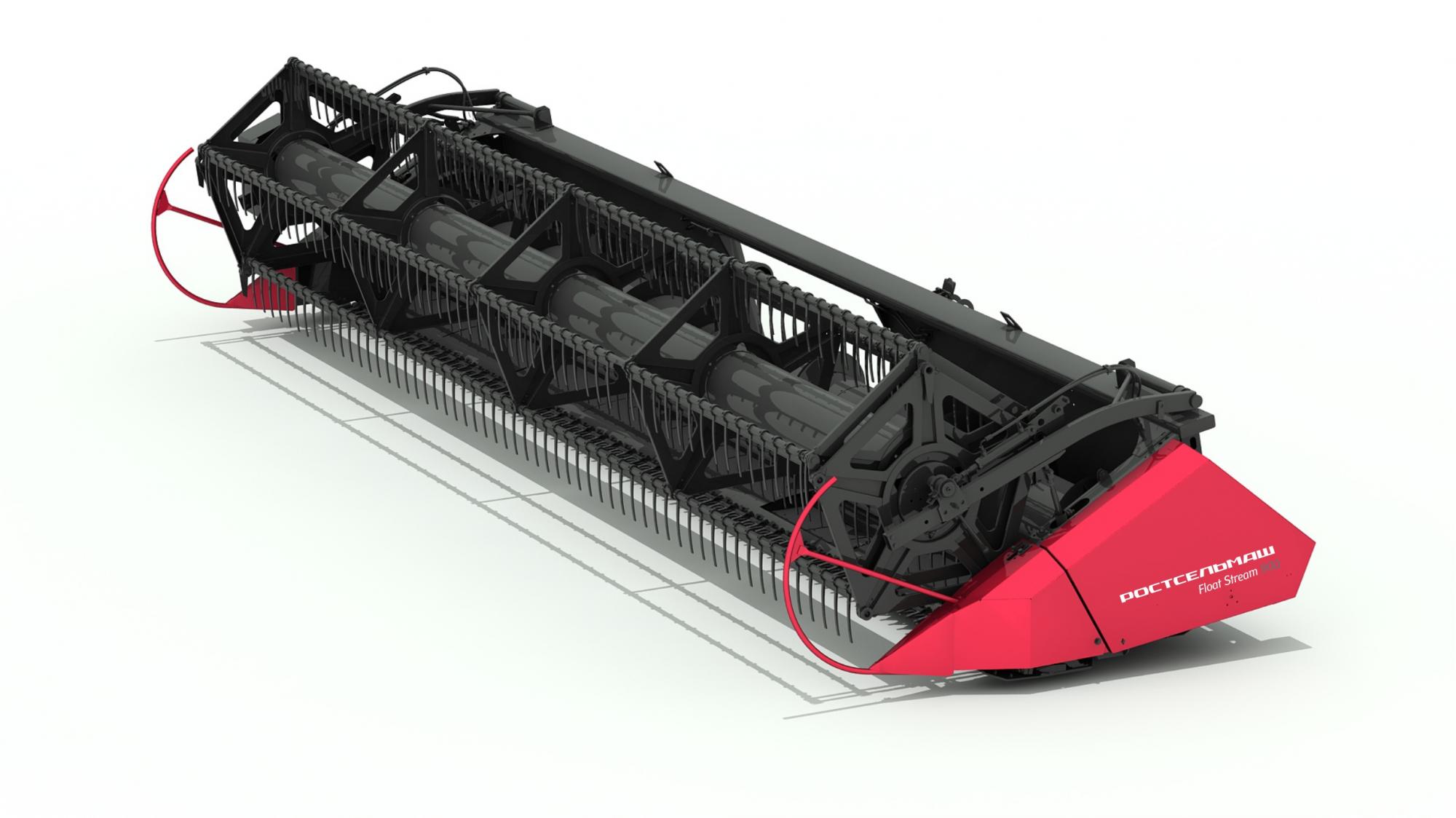

The Float Stream multipurpose close-cutting headers provide cutting grain crops, cereal crops, grain legumes, and flax at a height from 3 to 14 cm. The minimum distance from the field surface to the cutting elements of the header allows harvesting beaten down plants, as well as soy or chick-pea having first beans low position very efficiently. Due to the mechanism of contour following the Float Stream machine eliminates the problem of grain damage. The ergonomic bottom consisting of a series of spring-loaded plates responds to any change of the terrain, and the special-purpose electronic sensors transfer relevant data to a combine equipped with an electrical-and-hydraulic contour following system (CFS).
Wide model range (5, 6, 7, or 9 meters) allows selecting the optimum header meeting your combine requirements or depending on the field width. To provide careful gathering of the stalks of beaten down, matted, or beaten down by hail cereals and grain legume crops it is recommended to use the ZhSU 701.00.07.100 set of stalk gatherers being supplied on separate order.
The distinctive feature of soy combine harvesting is the necessity of its close cutting on humid and soft soil. The Float Stream header perfectly copes with that task due to its supporting shoes set throughout the header bottom, its floating knife, and its two contour following mechanisms installed on the header body and on the cutterbar unit. When harvesting soybean they operate simultaneously.
When harvesting grain crops, cereal crops, and grain legumes it is possible to operate applying “fixed knife” procedure consisting in contour following with the header body being performed without involving the cutterbar unit.
The header is designed for being ganged up with Rostselmash's Vector, Acros, Torum.
Share
About the availability of equipment and basic configuration check at the dealership
  • Description
  • Technical parameters
  • Video
  • Ask a question
  • Quality advantages of the Float Stream multipurpose close-cutting header

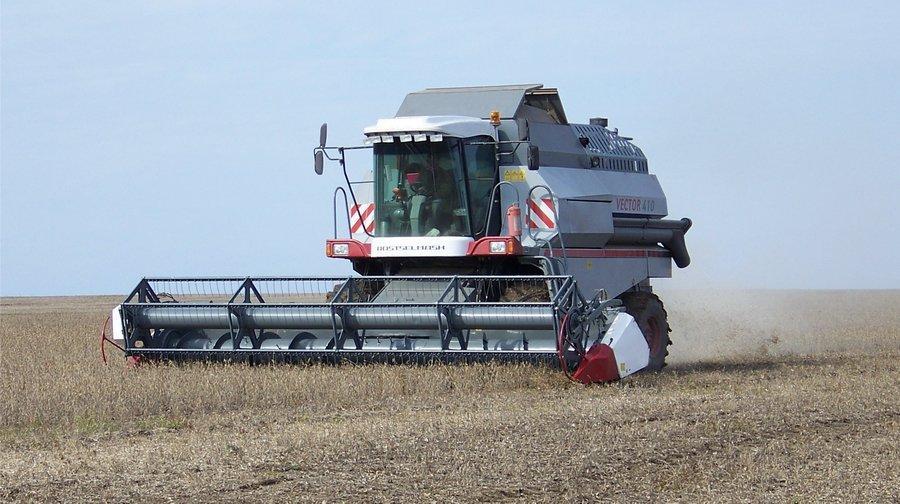

    Grain harvesting Grain harvesting
    The header is used for harvesting grain crops and cereal crops applying fixed knife procedure. In this case field contour following is performed due to the contour following system and supporting shoes installed on the header body.

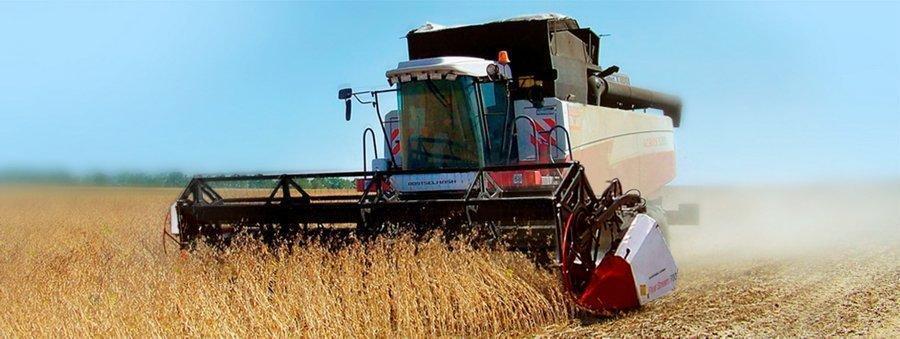

    Grain legumes harvesting Grain legumes harvesting
    The cutterbar unit of the Float Stream machine being in the mode of using the floating knife is able to perform close cutting at a height of up to 30 mm from the surface applying contour following, which allows picking even the lowest beans. Besides, the automatic contour following mode allows changing the position of the crop feed elevator for the purpose of providing necessary cutting height and reducing the load on the bar.

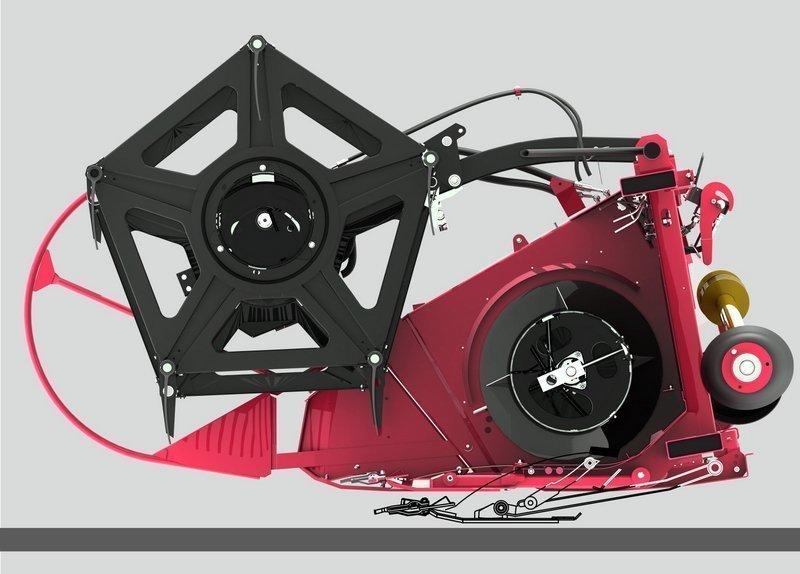

    Wide range of contour following ways Wide range of contour following ways
    The Float Stream cutterbar with a floating knife set on spring-loaded levers is able to move 130 mm downwards and upwards following the field contour. Contour following is performed by the slides (runners) fixed under the bar of the cutterbar unit.
    Maintainability Maintainability
    There are high-maintainability plastic fingers installed on the header, which do not damage the cutterbar unit in case of their accidental coming off and getting under the knife.

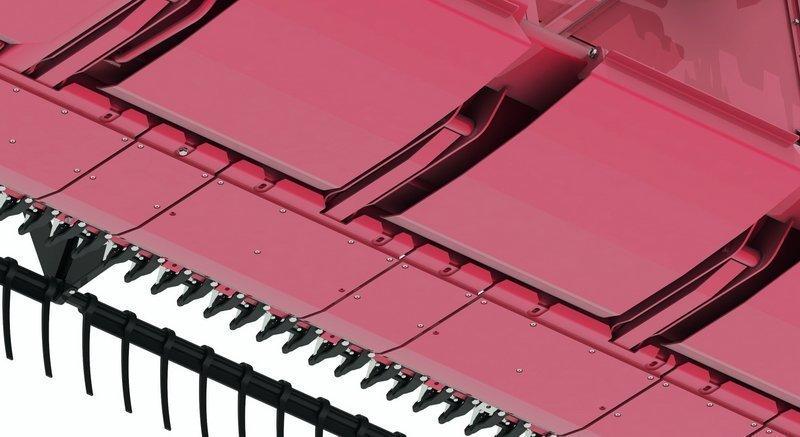

    Minimum cutting height Minimum cutting height
    Due to the availability of the supporting shoes set throughout the bottom of the header, the floating knife, and the contour following system the problem of close cutting at a height of 30 mm is eliminated.
    Damage protection Damage protection
    The oversized stone deflectors with a “skirt” prevent stones from getting on the machine tools, as well as prevent the area of the cutterbar unit and the contour-following bottom from being blocked.
    Long operating life Long operating life
    Slack-free joint of the fulcrum lever eliminates inertial vibrations originating from the reducer, which extends the operating life of the cutterbar unit.
  • Technical characteristics
    Model: Float Stream FS-500 FS-600 FS-700 FS-900
    Operating width (designed), mm 5000 6000 7000 9000
    Tare weight, kg, not more 1700 1950 2350 2800
    Operation speed, km/h, up to
    - in “fixed knife” mode ;
    - in “floating knife” mode;

    9
    7
    Adjusted height of cutting with “fixed knife”, mm 40-100-140
    Minimum adjusted height of cutting when harvesting soya bean, mm 30
    Consumed power, kW, not more 30
    Overall dimensions of the header in operating position, mm, not more
    -length 3200
    -width 5500 6500 7500 9500
    -height 2400
    Reel speed, RPM 14…55
    Reel Eccentric bat reel with spring pins
    Header tools control:
    - raising and lowering the header;
    - vertical and horizontal movement of the reel;
    - change of the reel rotation frequency (speed)
    Electrohydraulic control
    (performed at the combine operator’s workplace)
    Plant guides (dividers) Rod dividers
    Automatic field contour following transversely and longitudinally Performed by lever-and-spring balance unit or by electrohydraulic system
