Pick-up platform with grasp width of 3 and 4 m successfully removes rolls of several types of crops: headed grains, leguminous crops and rice. Clean gathering of mass, high productivity and damage protection system Productive work over the years is guaranteed by a robust design and ease of maintenance. By special order the model can be made with plastic fingers. It is aggregated with all kinds of harvesters.
-up platforms are supplied without multi connector, kit should be purchased from the manufacturer of harvester.
Pick-up platform with grasp width of 3 and 4 m successfully removes rolls of several types of crops: headed grains, leguminous crops and rice. Clean gathering of mass, high productivity and damage protection system Productive work over the years is guaranteed by a robust design and ease of maintenance. By special order the model can be made with plastic fingers. It is aggregated with all kinds of harvesters.
-up platforms are supplied without multi connector, kit should be purchased from the manufacturer of harvester.
About the availability of equipment and basic configuration check at the dealership
- Description
- Technical parameters
- Video
- Ask a question
-

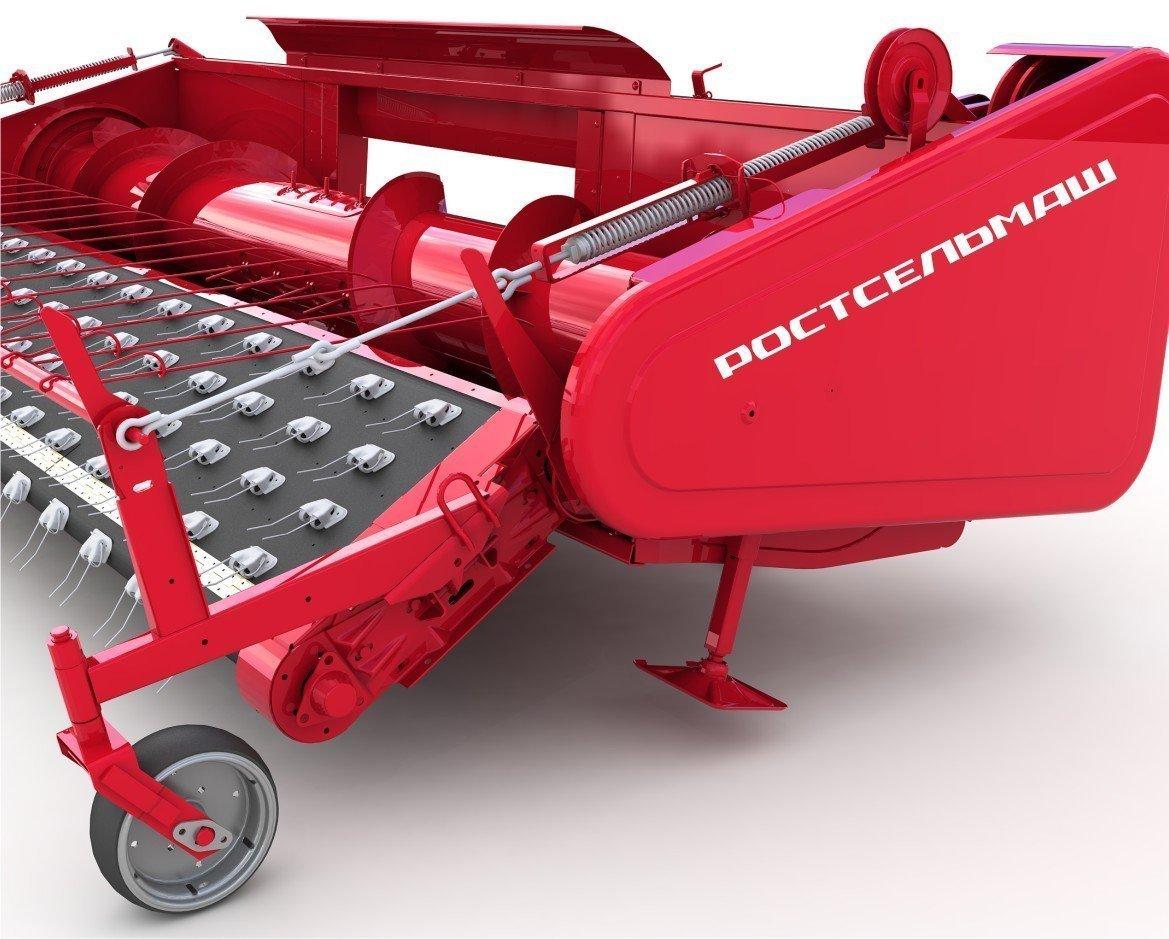

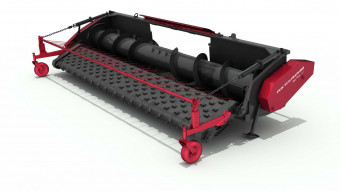

Quality advantages of pick-up platform for harvester Swa Pick 340/430
Provided with high-performance machinery
The structure includes a pick-up transporter, normalizer and balancing device, which ensure uninterrupted operation of the whole machine while harvesting crops.
Overload protection system
Special pendulum system of the pickup counter-drive attachment provides protection of mechanisms from overloads.
Great opportunities for copying
The relief copying in longitudinal and lateral directions is provided by the hinged suspension of transporter to platform.
Auger
Eccentric finger mechanism is mounted on the auger.
Transporter
More than 200 transporter pins collect the crop with high quality.
Works in different conditions
Pick-up platform can be used in all soil-climatic zones equally providing the high-effective crop collectionDocuments
Certificate of Conformity_09.06.2023_PICK-UP Platform PP Размер: 485,4 кб -
Technical specification Model Swa Pick 340 Swa Pick 430 Working width, m 3,4 4,3 Working weight, kg* 506 796 Overall dimensions (length x width x height, mm)* 1490/4240/1335 2285/4250/1313 Transporter drive Hydraulic, from the harvester hydraulic system Auger With pin mechanism and RH and LH helix coiling Auger drive Chain type, from inclined chamber propeller counterdrive Rotational speed of auger 190
*Weight and dimensions may vary depending on the version. -
-
