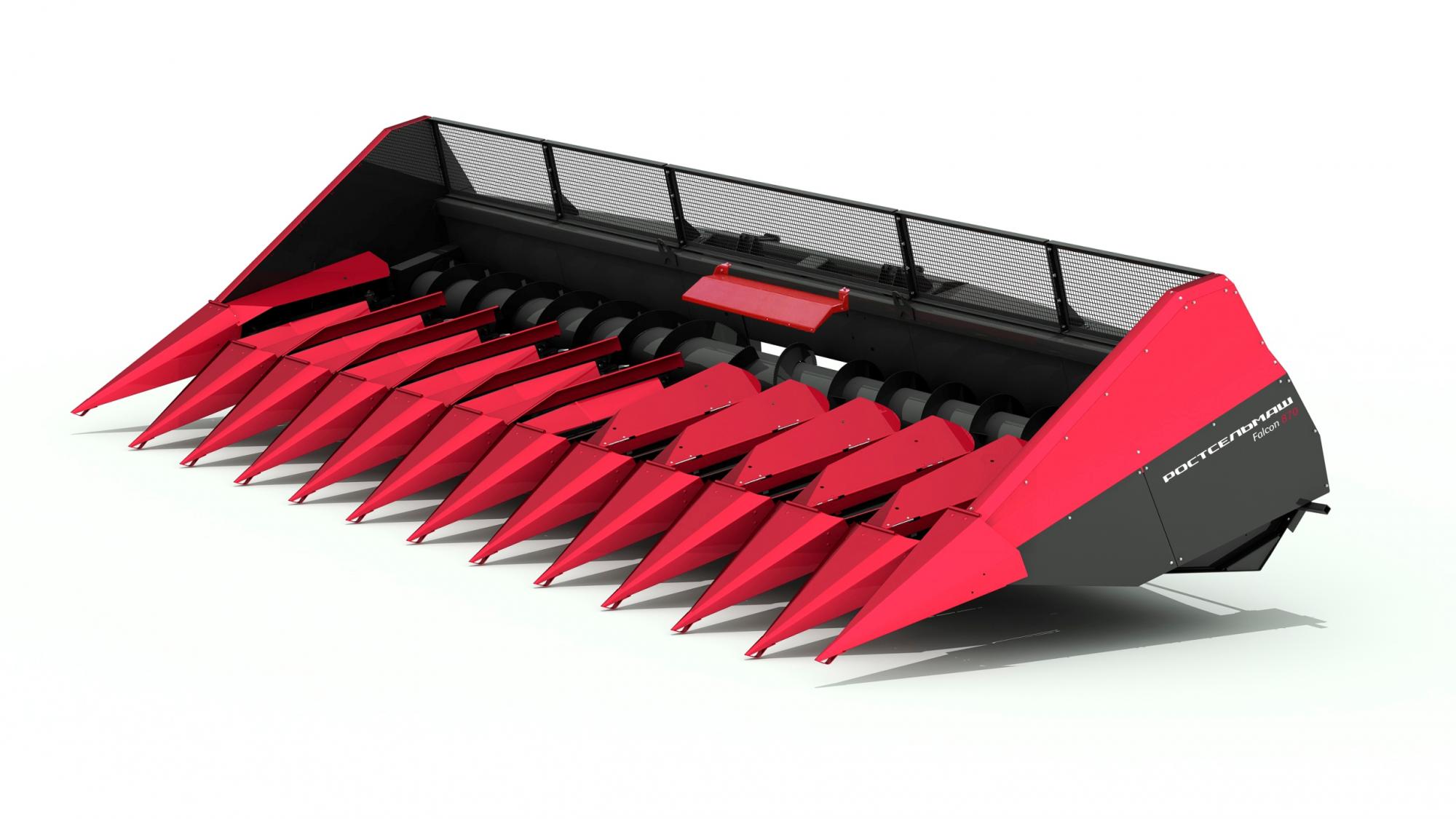

Specialised 6, 8, 12- row unique header FALCON is intended for sunflower harvesting. High productivity and careful attitude to sunflower seeds - the main features of the FALCON sunflower headers, that are equally effective in all cultivation areas both in harvesting of tall and low-growing varieties: header can pick up baskets of sunflowers located at an altitude of only 600 mm. This is achieved by hinged divisors which are adjustable in height. The conveyor belt provides high productivity – it will help to avoid damaging and clogging of lifters. Sunflower header Falcon is aggregated with any harvester.

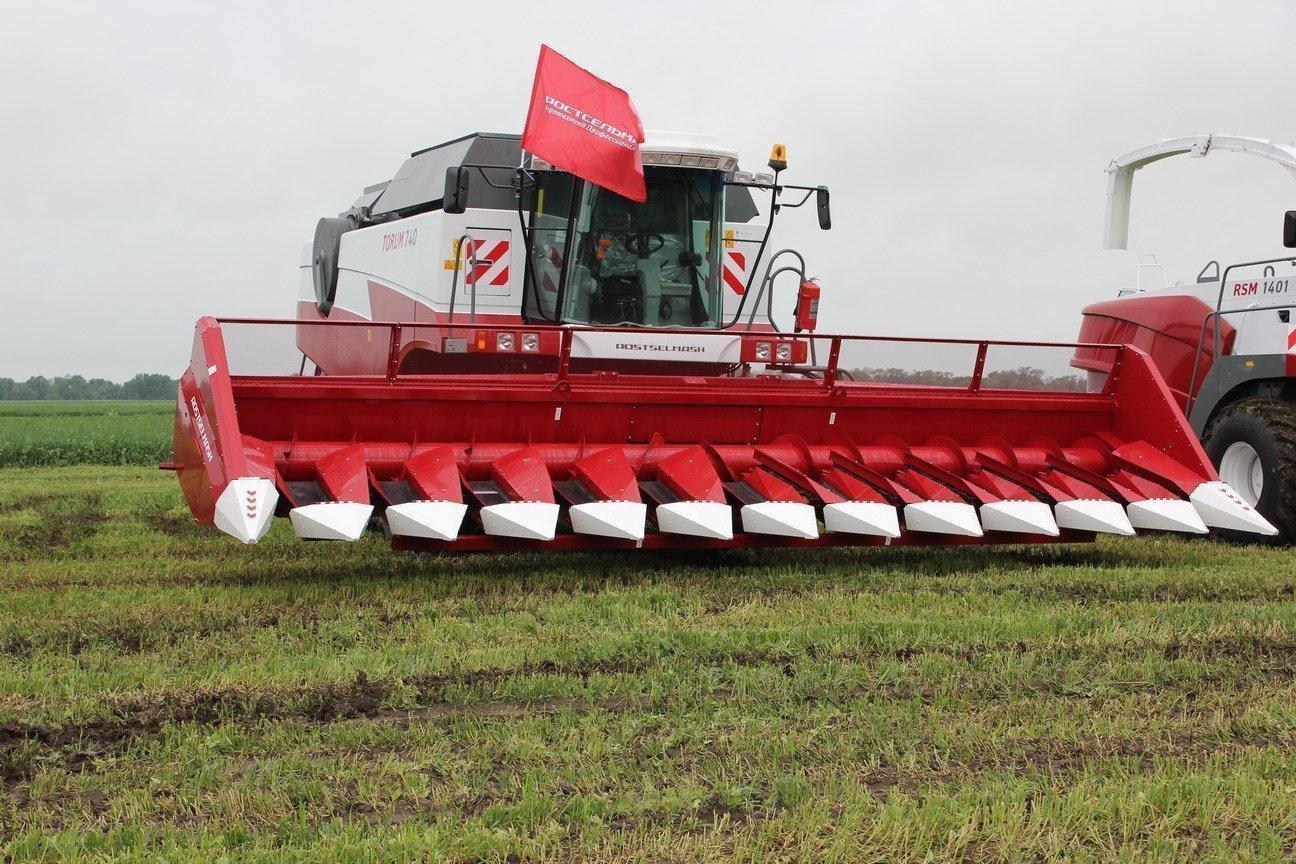

Harvester in the unit with sunflower header provides:
Options:
Specialised 6, 8, 12- row unique header FALCON is intended for sunflower harvesting. High productivity and careful attitude to sunflower seeds - the main features of the FALCON sunflower headers, that are equally effective in all cultivation areas both in harvesting of tall and low-growing varieties: header can pick up baskets of sunflowers located at an altitude of only 600 mm. This is achieved by hinged divisors which are adjustable in height. The conveyor belt provides high productivity – it will help to avoid damaging and clogging of lifters. Sunflower header Falcon is aggregated with any harvester.
Harvester in the unit with sunflower header provides:
- cut of plants;
- collection of purified seed into the bunker;
- separation of the masses;
- threshing seeds from the baskets;
- shredding and spreading of stems on the field;
- grinding threshed baskets and throwing across the field.
Options:
- Kit for decreasing screw speed of device for sunflower harvesting (n = 503min)
About the availability of equipment and basic configuration check at the dealership
- Description
- Technical parameters
- Video
- Ask a question
-
Quality advantages of Sunflower headers Falcon
Reducing of losses
The design feature of lifter channels shape provides feeding of sunflower heads with their simultaneous inclination over the belt transporters. Due to this, the sunflower seeds are directed to the reaper worm and, further, to the harvester inclined chamber without losses. It is the additional factor of losses reducing. Due to this sunflower seed are sent to the header auger and into the combine’s sloping camera without losses. It is an additional factor that reduces losses.
Exclusion of failures

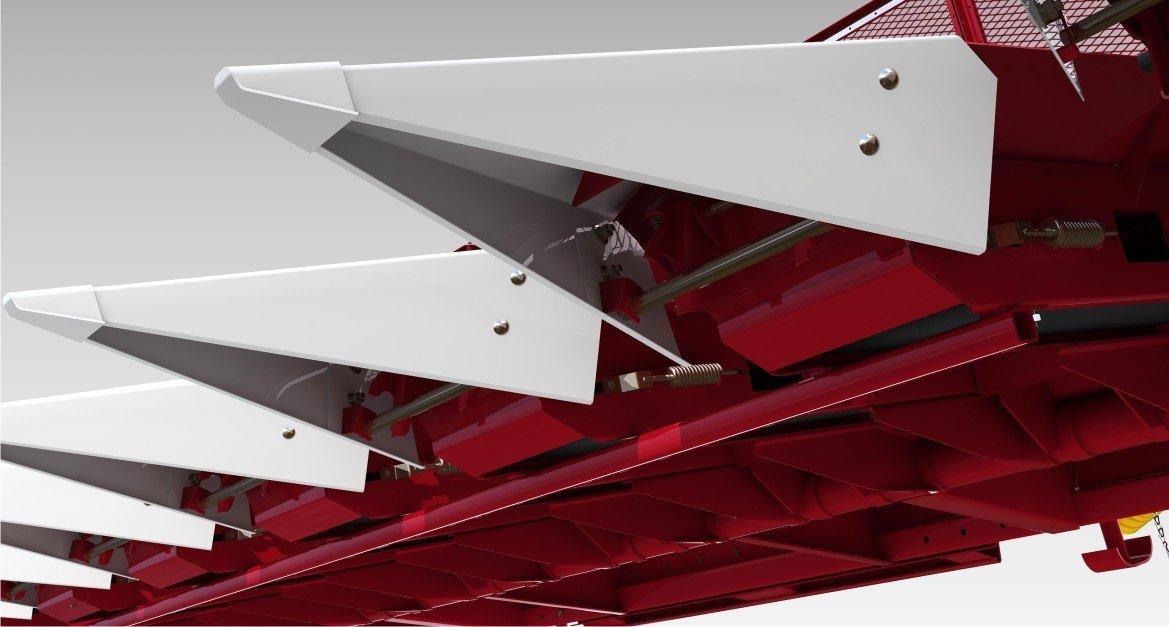

The stem dividers hinged attachments exclude the machine failure when hitting an obstacle.
Double protection

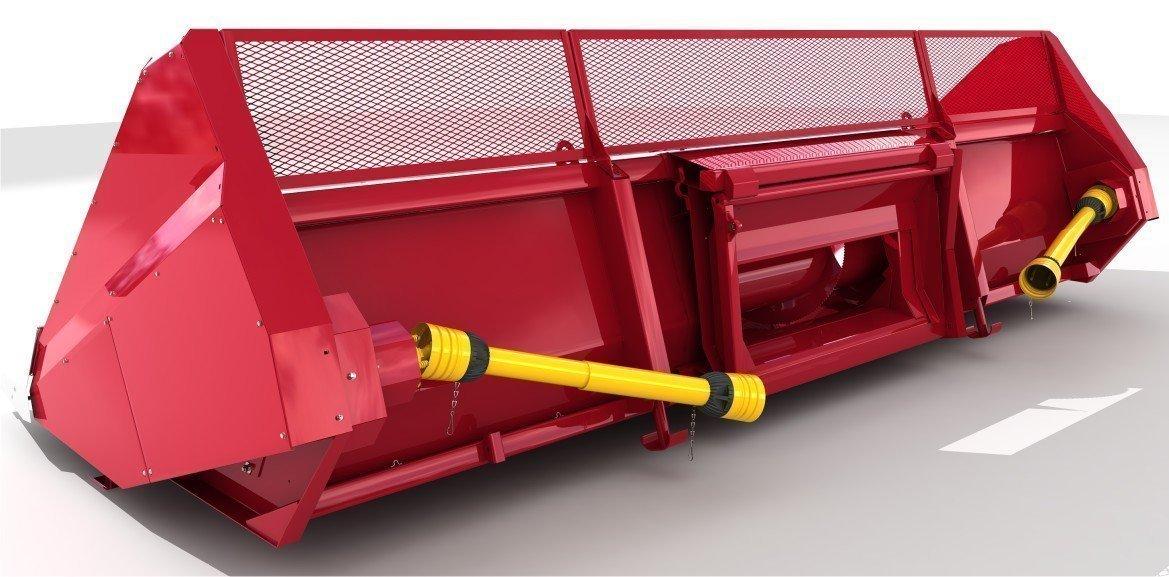

Two safety clutches provide trouble-free drive stop in case of in the event of critical overload of working mechanisms.
Suitability for harvesting many-tier sunflower

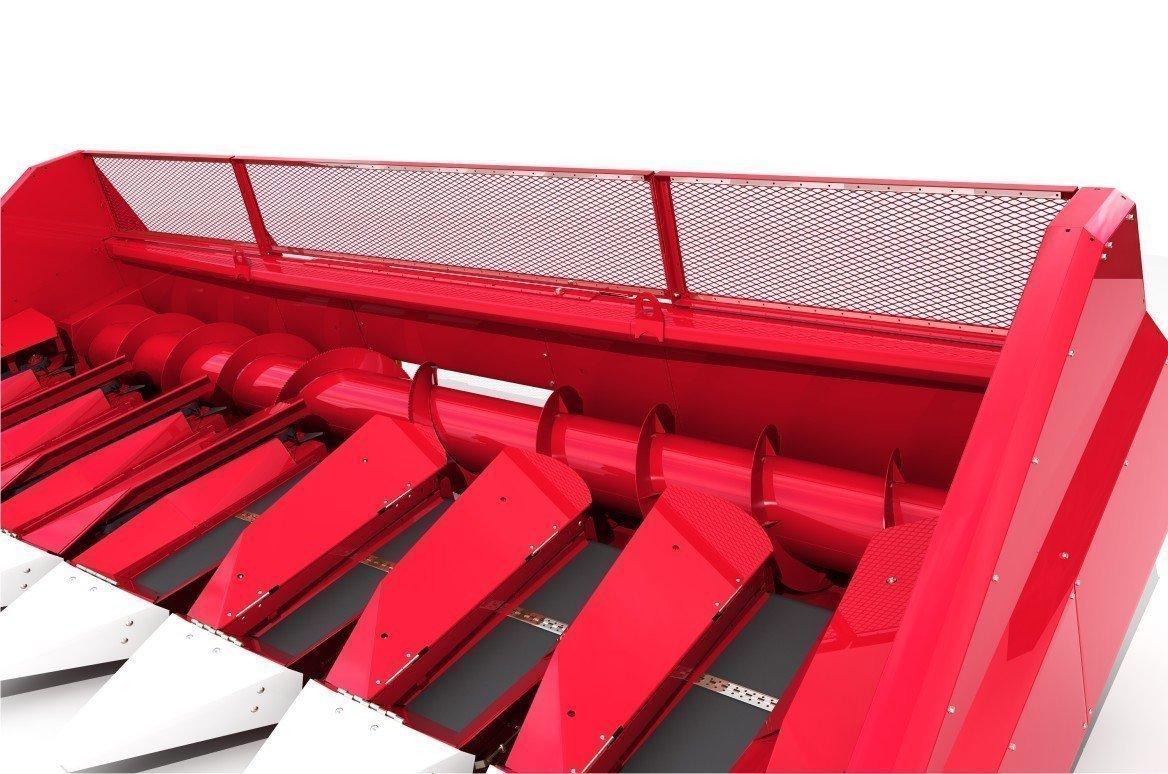

High wind shield reduces losses during harvesting many-tier sunflower.
Universality

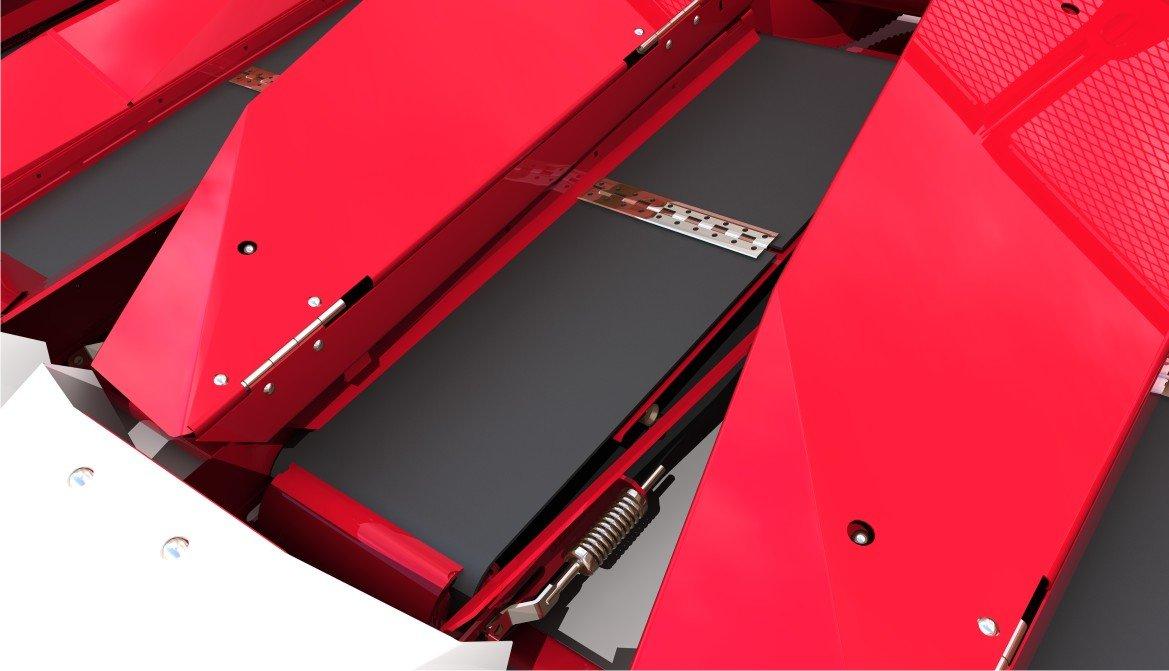

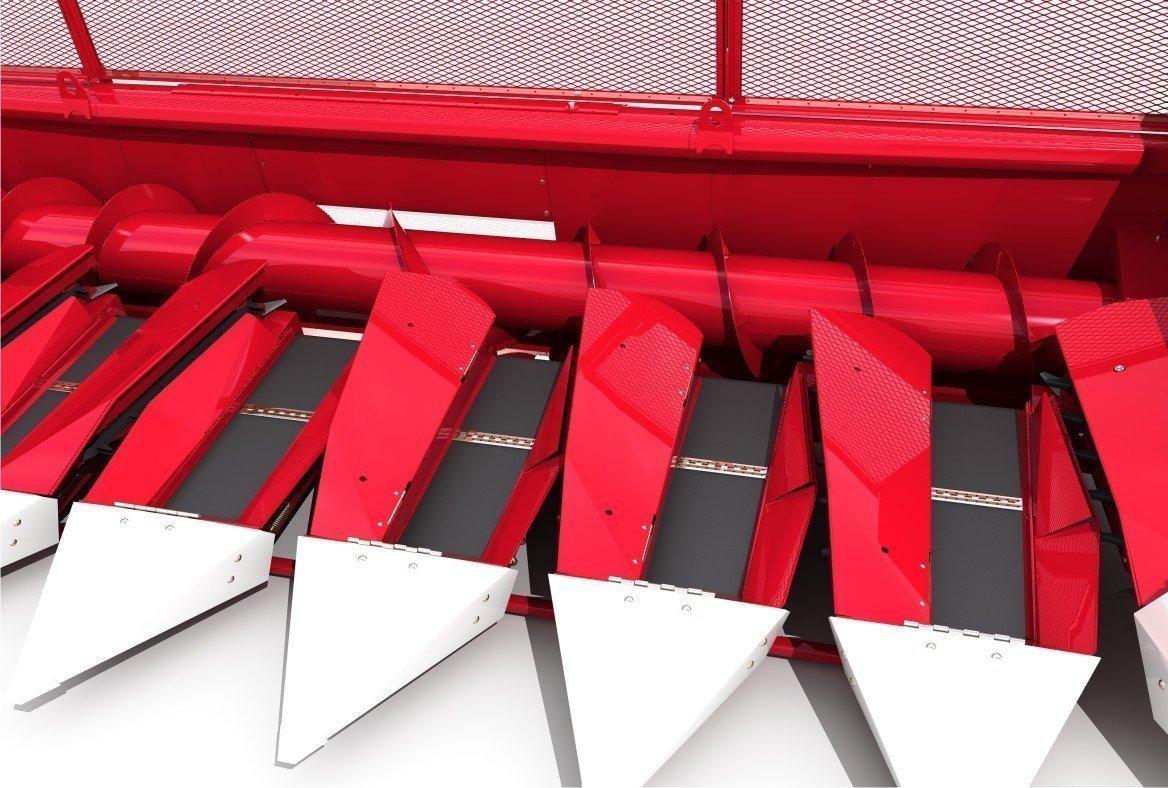

Conveyor belt with automatic tension directs crumbled seeds and baskets with stems of any length from fields of any productivity in various weather conditions.
Reliability and infallibility

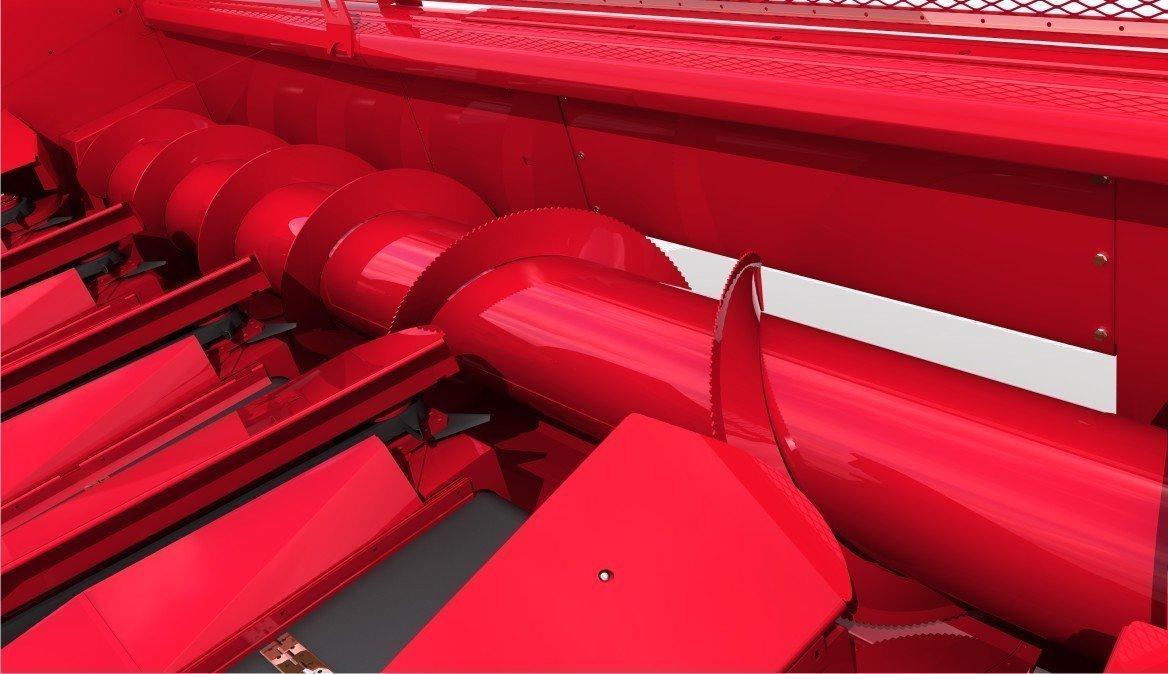

The original design of auger with toothed whorls in the center provides uniform supply of mass to harvester and prevents mass accumulation under the auger, protecting it from bending and jamming.Documents
Certificate of Conformity_09.06.2023_Falcon Размер: 535,1 кб -
Technical specification Model Falcon-670 Falcon-870 Falcon-1270 Type Mounted Efficiency per 1 hour at 20 centner/ ha crop capacity, not less than, t/h 4,9 6,5 9,7 Operating speed, km / h 5…9 Weight of the device with harvester reequipping set, kg, not more than 1 400 2 000 3 200 Overall dimensions, mm:
- length
- width
- height
3020
4 040
1 700
2 700
6 020
1 700
2 788
8 779
1 759Number of cutting apparatus, pcs 6 8 12 Number of stem transporters, pcs 6 8 12 Number of seeds transporters, pcs 5 7 11 Row-spacing processing width, cm 70 Cutting apparatus Disk type Header drive Propeller type, through cone gearboxes Drive shaft speed, rpm 500…530 -
-
