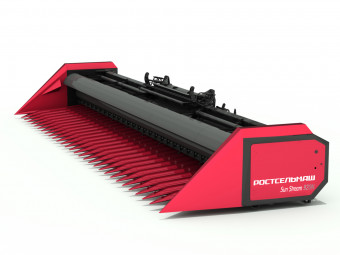

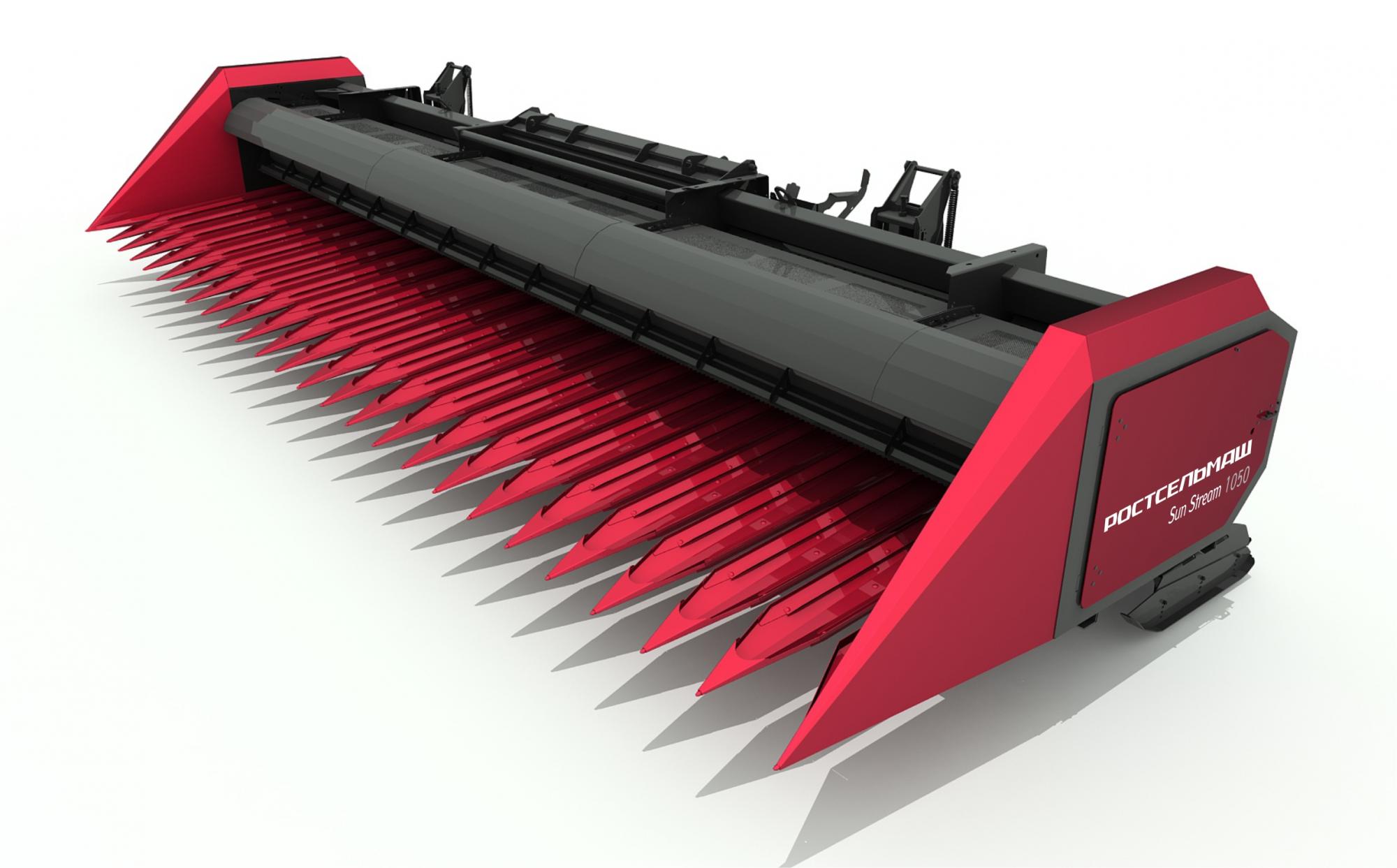

Sun Stream 1200 is a multipurpose sunflower chopper, which allows avoiding the dependence on row width. The simple and robust construction guarantees long operation life and reliable operation providing the possibility of using the machine for sunflower harvesting in each region, where this culture is cultivated. Sunflower harvesting is possible independently of seeding direction and row width. Special design of the lifters provides efficient harvesting of all cultivars and hybrids providing continuous flow of mass to the combine threshing drum.
Sun Stream choppers are designed for maximum possible increase of combine performance at the time of sunflower harvesting. Due to their reduced weight they guarantee lower fuel costs, and the simplicity of their design provides technical maintenance convenience.

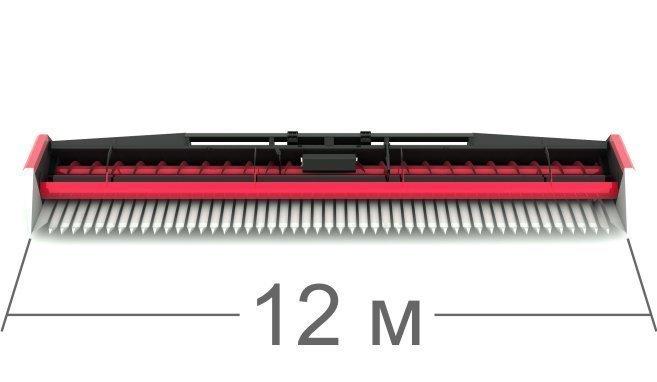

Sun Stream choppers having operating width of 12 m are aggregated with high-power combines such as TORUM and RSM 161.
Sun Stream choppers are designed for maximum possible increase of combine performance at the time of sunflower harvesting. Due to their reduced weight they guarantee lower fuel costs, and the simplicity of their design provides technical maintenance convenience.
Sun Stream choppers having operating width of 12 m are aggregated with high-power combines such as TORUM and RSM 161.
About the availability of equipment and basic configuration check at the dealership
- Description
- Technical parameters
- Ask a question
-
Quality advantages of Sun Stream free row width sunflower choppers
Reliable chopping operation

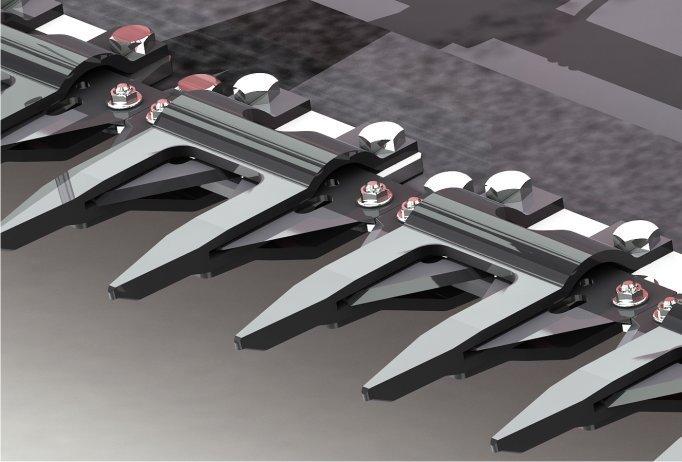

A long-established high-precision cutting unit with changeable knives is installed on the chopper. It provides reliable chopping operation even under conditions of wet harvesting. The knife segments are easily replaces without the necessity of dismounting the whole cutting unit.
Versatility
The special design and the position of the dividers allow harvesting sunflower carefully undependable of the combine travelling direction easily covering up to 16 rows. Gripping of a sunflower head is possible in any position of the plant.
Reducing losses

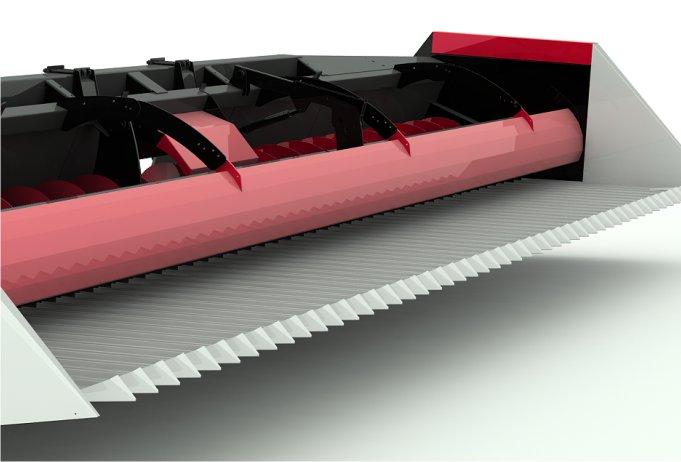

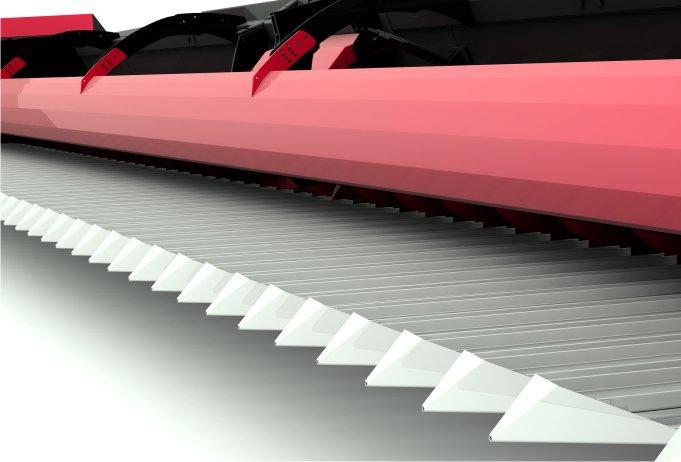

The width and the distance between the lifters allow performing harvesting undependable of seeding direction at any row width. The special steel heads protect sunflower being harvested shocks, damage, and catching.
Cost effectiveness
Sun Stream 1200 free row width sunflower chopper has low weight, which reduces fuel consumption and increases cost effectiveness. Besides, the pressure of tires of soil is also reduced.
Operation simplicity
Due to the convenient access to the devices and mechanism works for maintenance and parts replacement are performed quickly and easily. The robust construction and high-quality materials and parts of the minimize wear of the chopper.
Reliable derive mechanism
The machine has a bilateral drive system consisting of bevel gear speed reducers and gimbal gear. This system is more reliable than the drive system consisting of chain gears used in similar choppers.Documents
Certificate of Conformity_09.06.2023_Sun Stream RSM SS Размер: 490,1 кб -
Technical characteristics Model SunStream-1200 Type Hitch-type Performance, under the yield of 20 centner/ha, not less, t/h 9.7 Operation speed, km/h, up to 8 Chopper weight, kg, not more 3500 Overall dimensions, mm
- length
- width
- height
2 535
12 181
1 228Number of rows being treated by the machine, rows 16 Width of treated space between the rows, cm 45/70/75 Cutting unit segment-and-finger-type Chopper drive Gimbal drive, through lateral reducers Rotation frequency of the combine drive shaft, rpm from 500 to 530 -
