-RSM AP-3000/4000 Liquid Fertilizer Applicator

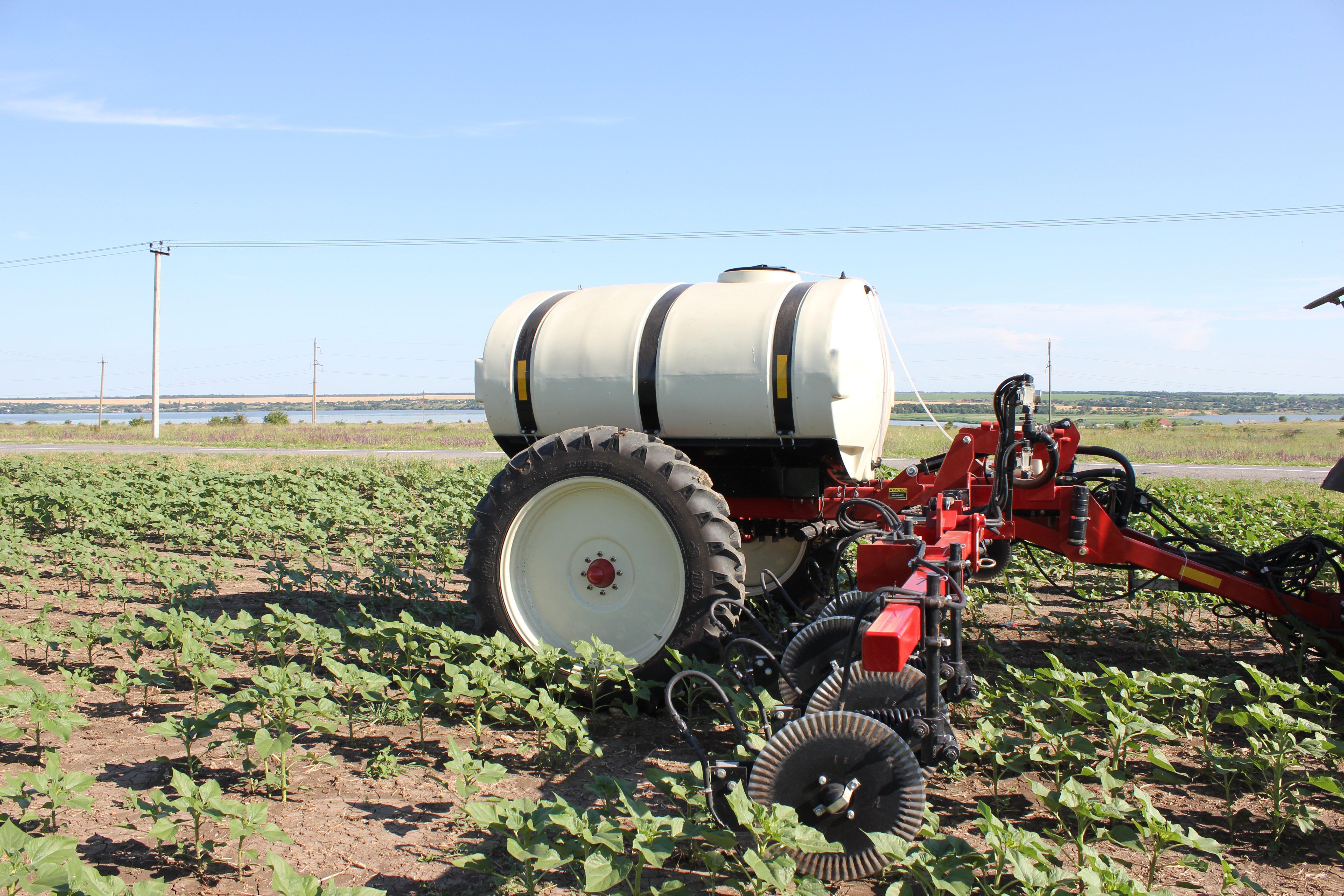

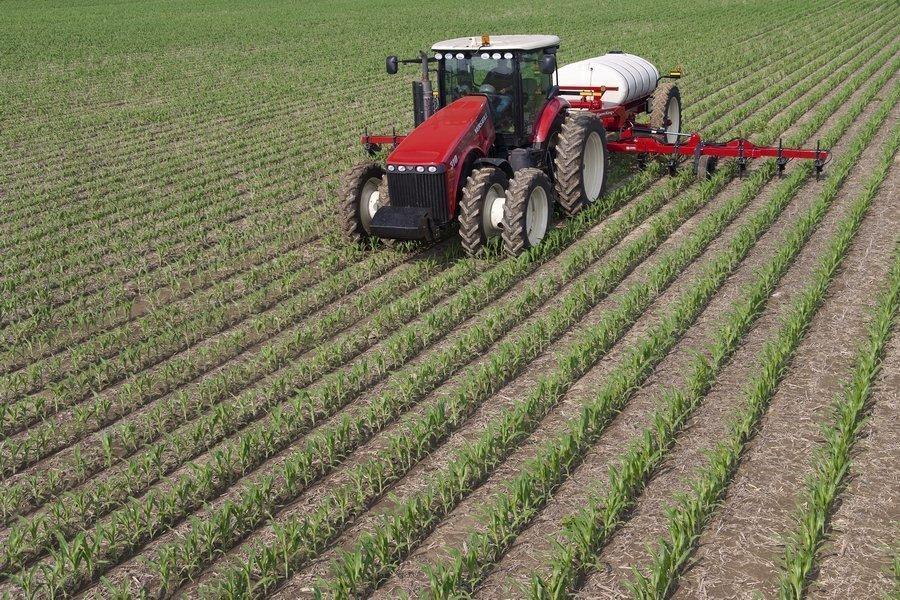

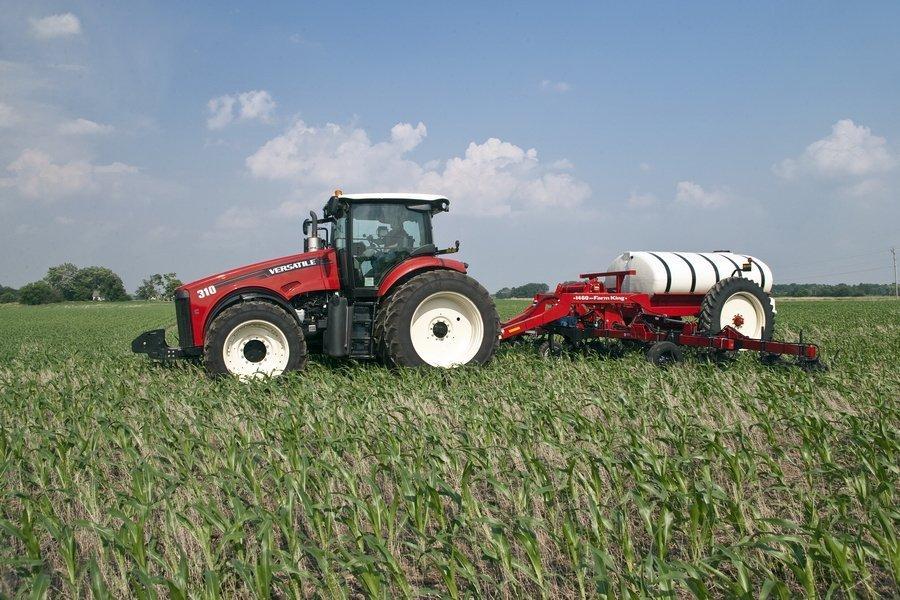

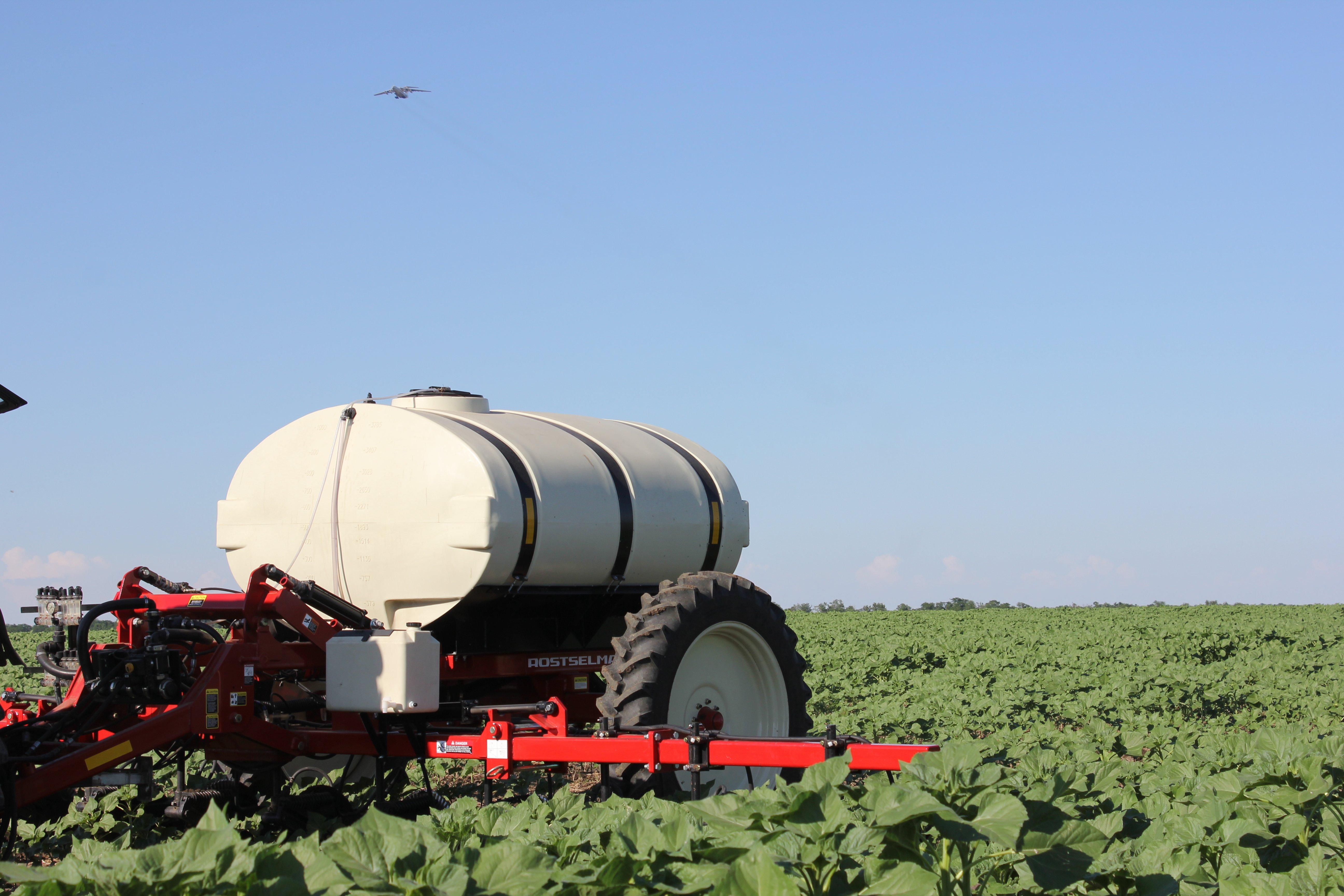

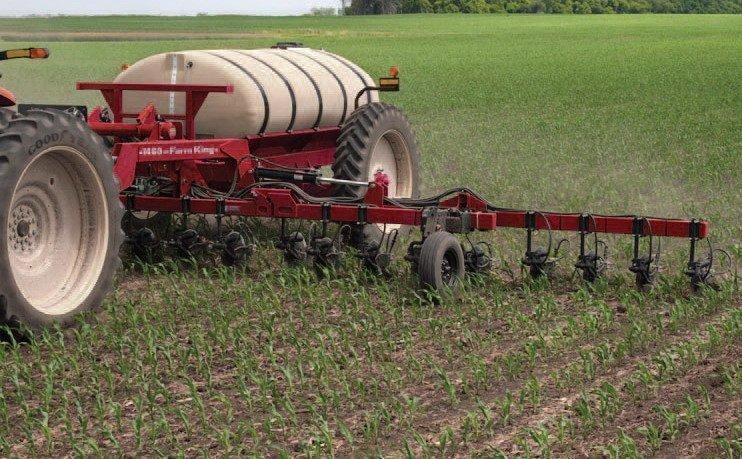

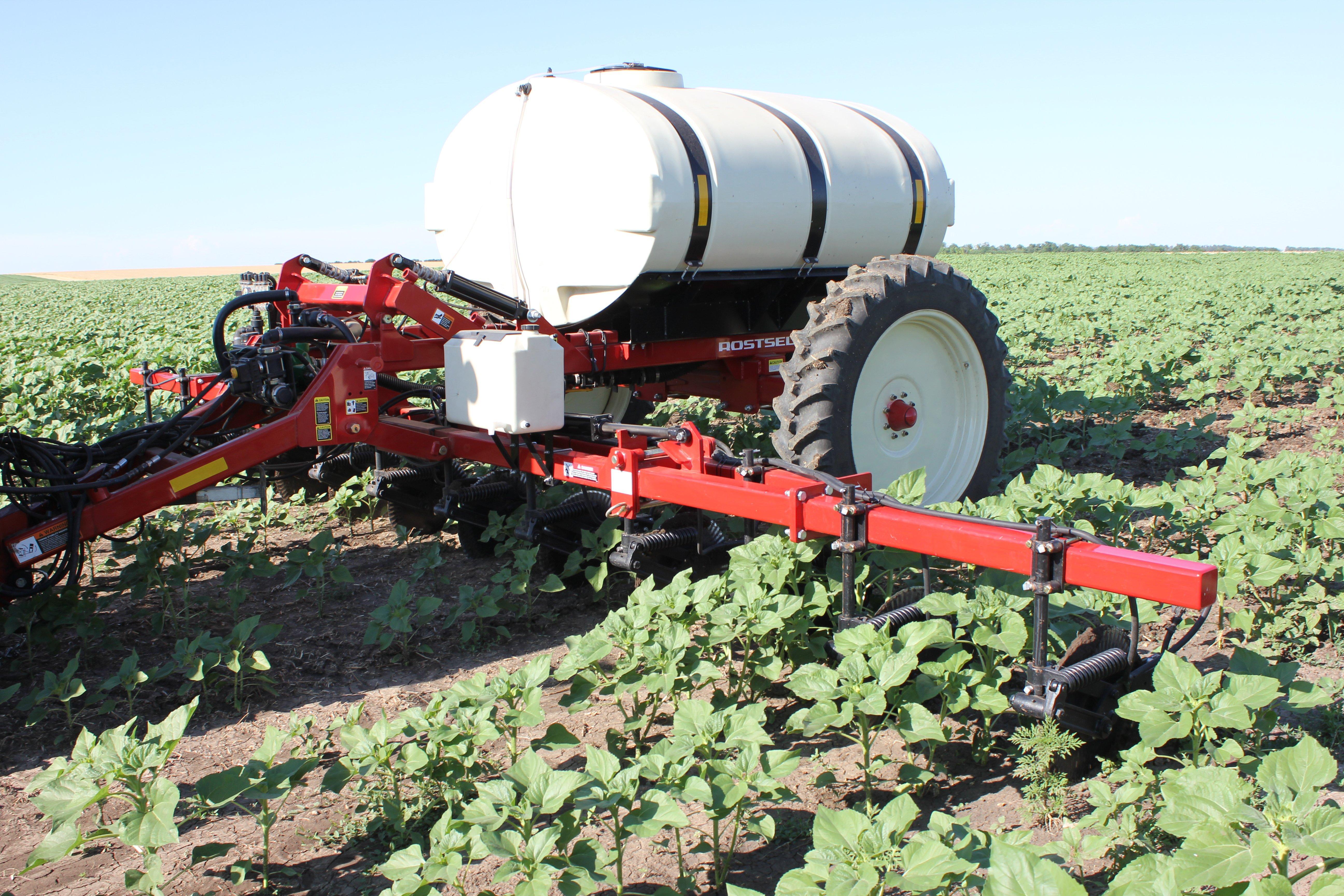

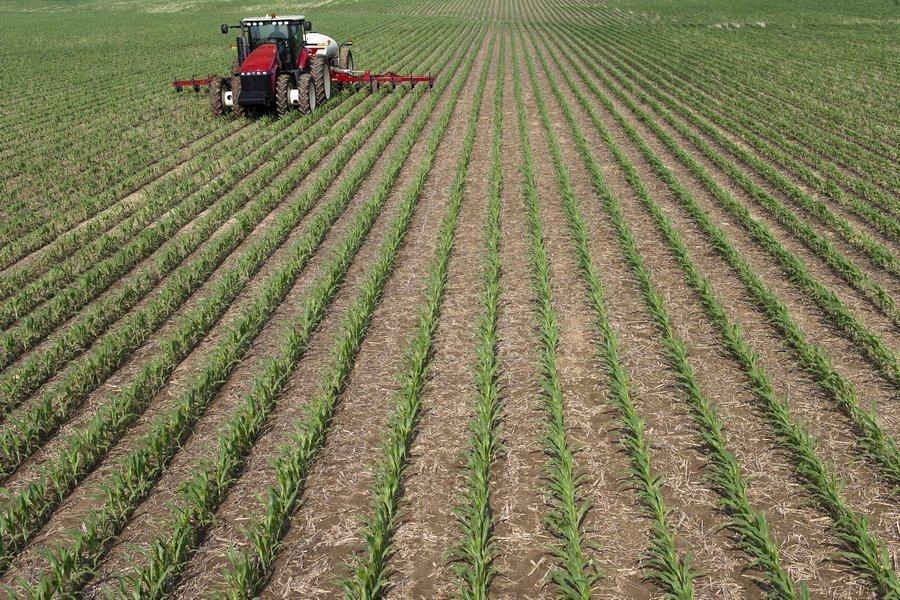

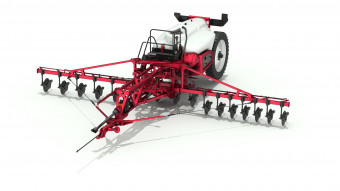

RSM AP-3000/4000 Liquid Fertilizer Applicator


  • RSM AP-3000/4000 Liquid Fertilizer Applicator
  • RSM AP-3000/4000 Liquid Fertilizer Applicator
  • RSM AP-3000/4000 Liquid Fertilizer Applicator
  • RSM AP-3000/4000 Liquid Fertilizer Applicator
  • RSM AP-3000/4000 Liquid Fertilizer Applicator
  • RSM AP-3000/4000 Liquid Fertilizer Applicator
  • RSM AP-3000/4000 Liquid Fertilizer Applicator
  • RSM AP-3000/4000 Liquid Fertilizer Applicator
  • RSM AP-3000/4000 Liquid Fertilizer Applicator
  • RSM AP-3000/4000 Liquid Fertilizer Applicator
  • RSM AP-3000/4000 Liquid Fertilizer Applicator
  • RSM AP-3000/4000 Liquid Fertilizer Applicator
  • RSM AP-3000/4000 Liquid Fertilizer Applicator
  • RSM AP-3000/4000 Liquid Fertilizer Applicator
  • RSM AP-3000/4000 Liquid Fertilizer Applicator
  • RSM AP-3000/4000 Liquid Fertilizer Applicator
  • RSM AP-3000/4000 Liquid Fertilizer Applicator
  • RSM AP-3000/4000 Liquid Fertilizer Applicator
  • RSM AP-3000/4000 Liquid Fertilizer Applicator
  • RSM AP-3000/4000 Liquid Fertilizer Applicator
  • RSM AP-3000/4000 Liquid Fertilizer Applicator
  • RSM AP-3000/4000 Liquid Fertilizer Applicator
  • RSM AP-3000/4000 Liquid Fertilizer Applicator
  • RSM AP-3000/4000 Liquid Fertilizer Applicator
  • RSM AP-3000/4000 Liquid Fertilizer Applicator
  • RSM AP-3000/4000 Liquid Fertilizer Applicator
  • RSM AP-3000/4000 Liquid Fertilizer Applicator
  • RSM AP-3000/4000 Liquid Fertilizer Applicator
  • RSM AP-3000/4000 Liquid Fertilizer Applicator
  • RSM AP-3000/4000 Liquid Fertilizer Applicator
  • RSM AP-3000/4000 Liquid Fertilizer Applicator
  • RSM AP-3000/4000 Liquid Fertilizer Applicator
  • RSM AP-3000/4000 Liquid Fertilizer Applicator
  • RSM AP-3000/4000 Liquid Fertilizer Applicator
  • RSM AP-3000/4000 Liquid Fertilizer Applicator
  • RSM AP-3000/4000 Liquid Fertilizer Applicator
  • RSM AP-3000/4000 Liquid Fertilizer Applicator
  • RSM AP-3000/4000 Liquid Fertilizer Applicator
  • RSM AP-3000/4000 Liquid Fertilizer Applicator
  • RSM AP-3000/4000 Liquid Fertilizer Applicator
  • RSM AP-3000/4000 Liquid Fertilizer Applicator
  • RSM AP-3000/4000 Liquid Fertilizer Applicator
Order
диаметр дисковОбъем бакаШирина захватаТочность внесенияЭкономия средствШирина междурядьяПанель управленияКолея

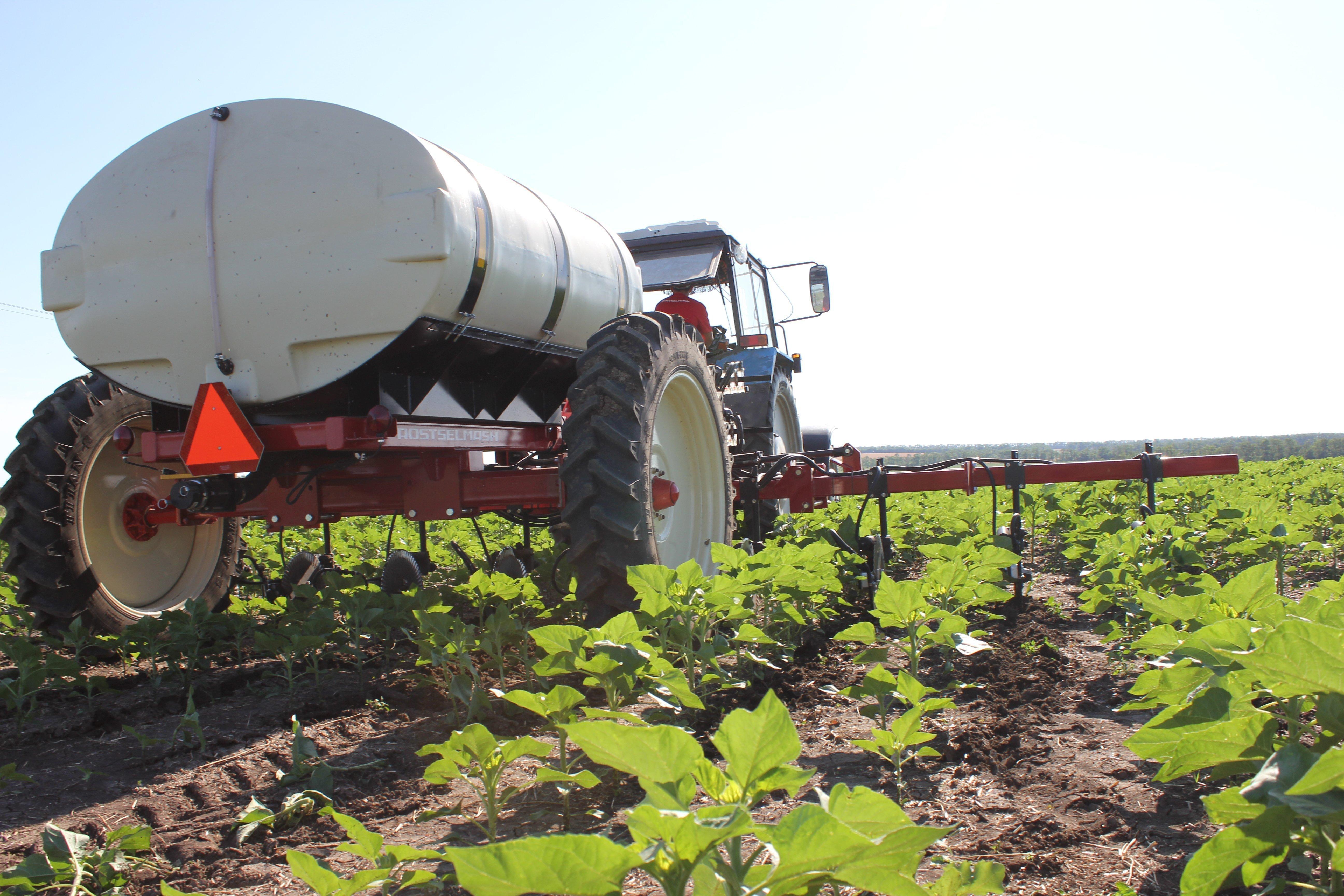

The fertilizer applicator is designed for applying liquid mineral fertilizers to the soil of tilled crops such as sunflower, corn, sugar beet (plant-root fertilization), and cereal crops.
When the traditional, or basic, way of fertilizing plants in the fall is used, there is no 100% guarantee that the applied materials will remain until the spring and maintain their nutritional properties. The use of RSM AP applicators guarantees maximum retention in the soil and bioavailability of fertilizers and microelements during the growing season. This is especially important during the period of drought when the surface application of dry mineral fertilizers with a spreader is inefficient, and high daytime temperatures limit the operation of spraying devices due to the risk of leaves burning.
Fertilizers are applied directly to the root zone that ensures their highly effective taking. This type of dressing allows saving up to 30% of fertilizer compared to surface application. Fertilizers are consumed in smaller doses, which eliminates the overdose of PPA and the risk of plant burns.
Advantages of using applicators
  • Liquid fertilizers easily reach roots intensifying their growth, which improves other nutrients and microelements uptake and makes the plant stalks stronger.
  • Possibility of using other nutrient chemicals such sulfur.
  • Relatively longer period for applying fertilizers; the best result of taking fertilizers by plants in the period of drought.
  • Elimination of the risk of chemical burn even in case of heavy rate of application (in comparison with foliar application), no excess nutrients.
  • Sufficiently lower loss of active ingredients in comparison with surface application, which allows reducing the amount of fertilizer being applied by 15-20%.
  • Possibility of applying exact amount of fertilizers when applying both small and large amounts.
  • Reduction of expenses on storage, delivery to the field, and filling.
Share
About the availability of equipment and basic configuration check at the dealership
  • Description
  • Technical parameters
  • Video
  • Ask a question
  • Quality advantages of RSM AP-3000/4000 applicators

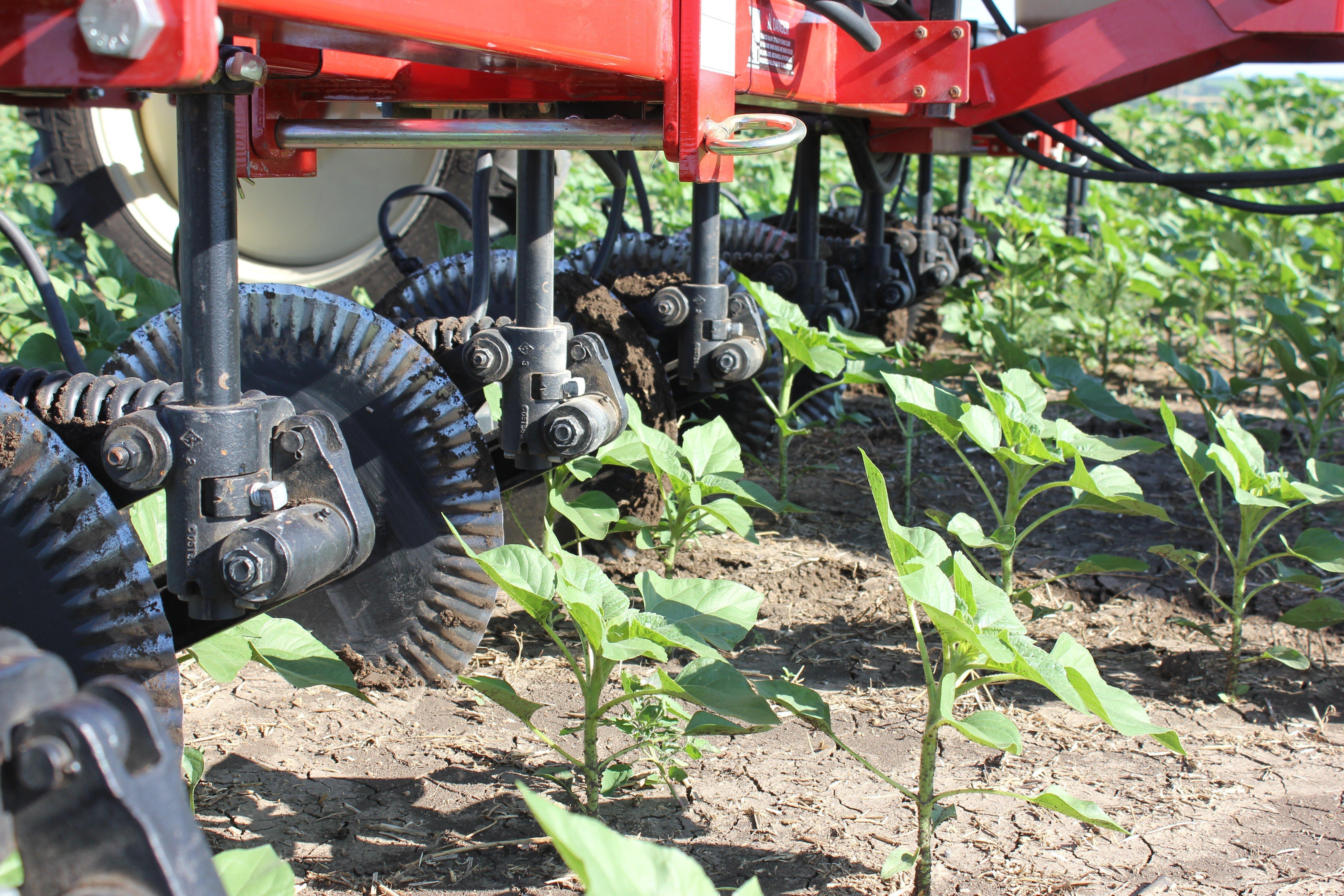

    Clearance under the frame Clearance under the frame
    RSM AF-3800 series applicators provide the flexibility of applying fertilizers and sufficient clearance preventing plants from damage. The large clearance under the frame allows applying fertilizers timely and efficiently, which increases crop yield.

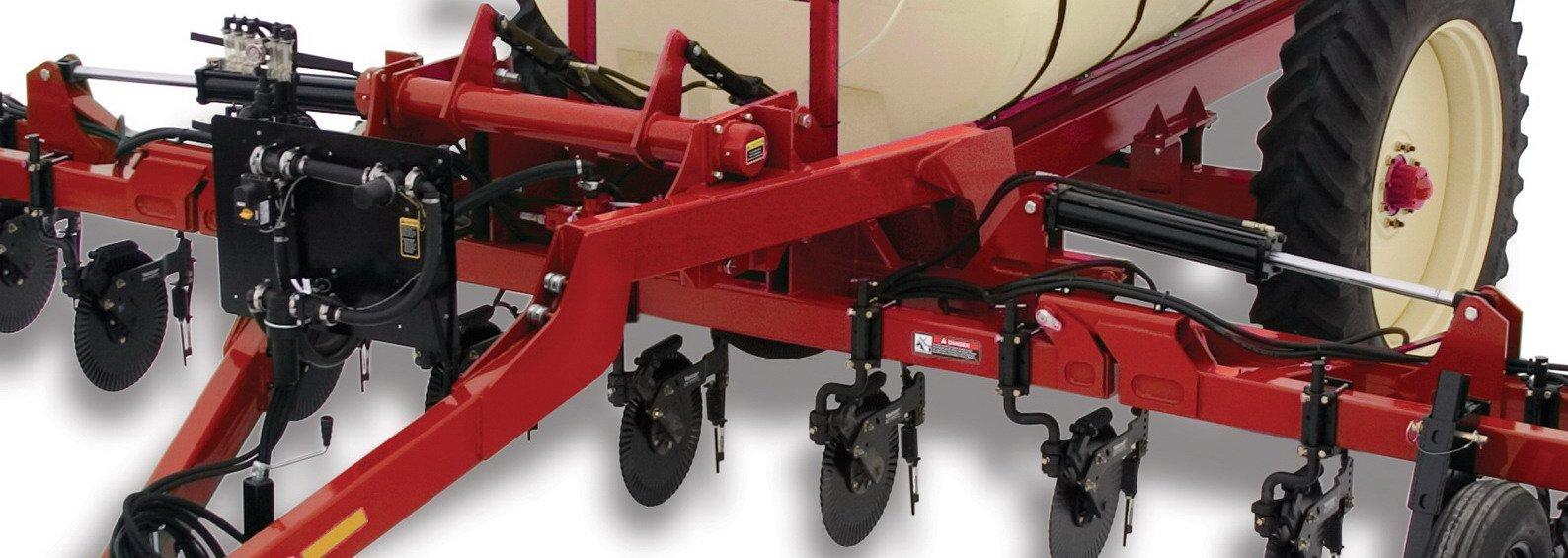

    Frame and tool bar Frame and tool bar
    A robust double main frame with dimensions of 4 x 4 and a two-cylinder lifting device increasing the reliability of the machine are used in AF-3800 series. The pressure-exerting hydraulic system provides stable penetration of the applicator ensuring uniform application.

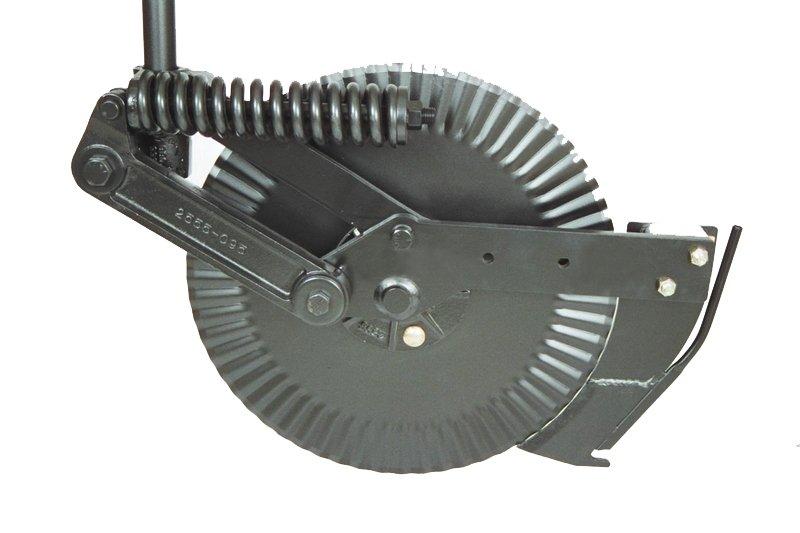

    Knifed colters Knifed colters
    The 11 colter modification allows treating 6, 8, 10, and 12 rows under 70 sm wide space between the rows.
    The 17 colter modification allows treating up to 12 rows, when the space between the rows is 70 sm, and up to 16 rows, when the space between the rows is 45 sm.
    The colters used in the applicators have the following advantages:
    • Parallel clutch control lever
    • Buckled cutting edge, 59 cm
    • Pressure of 63 kg/cm
    • Wear-resistant back knife nose

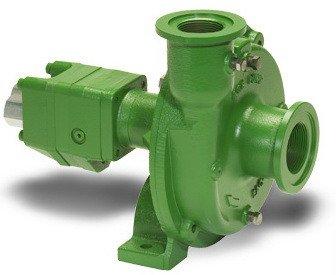

    Hydraulically powered Ace centrifugal (rotary) pump Hydraulically powered Ace centrifugal (rotary) pump
    The cast steel pump housing and the silicone-and-ceramic shaft seals provide high resistance to wear and long service life. The absence of a valve unit in the pump makes the pump less sensitive to the quality of the treatment of water filled, which is very important under conditions of water intake from natural sources.
    The performance of the hydraulic motor powered pump is up to 511 L/min, and its maximum pressure is 8.3 bar.

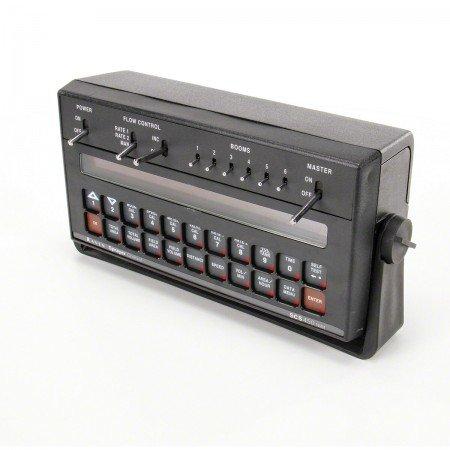

    Control panel Control panel
    The application computer designed and manufactured by Raven company is easy-to-use. Several keystrokes are enough for setting necessary rate of liquid fertilizer application. The computer will automatically keep the set value to high precision in a wide range of speed variation. The turbine-type flow meter controlling the electrically powered valve, as well as the additional speed sensors allow providing perfect application precision.

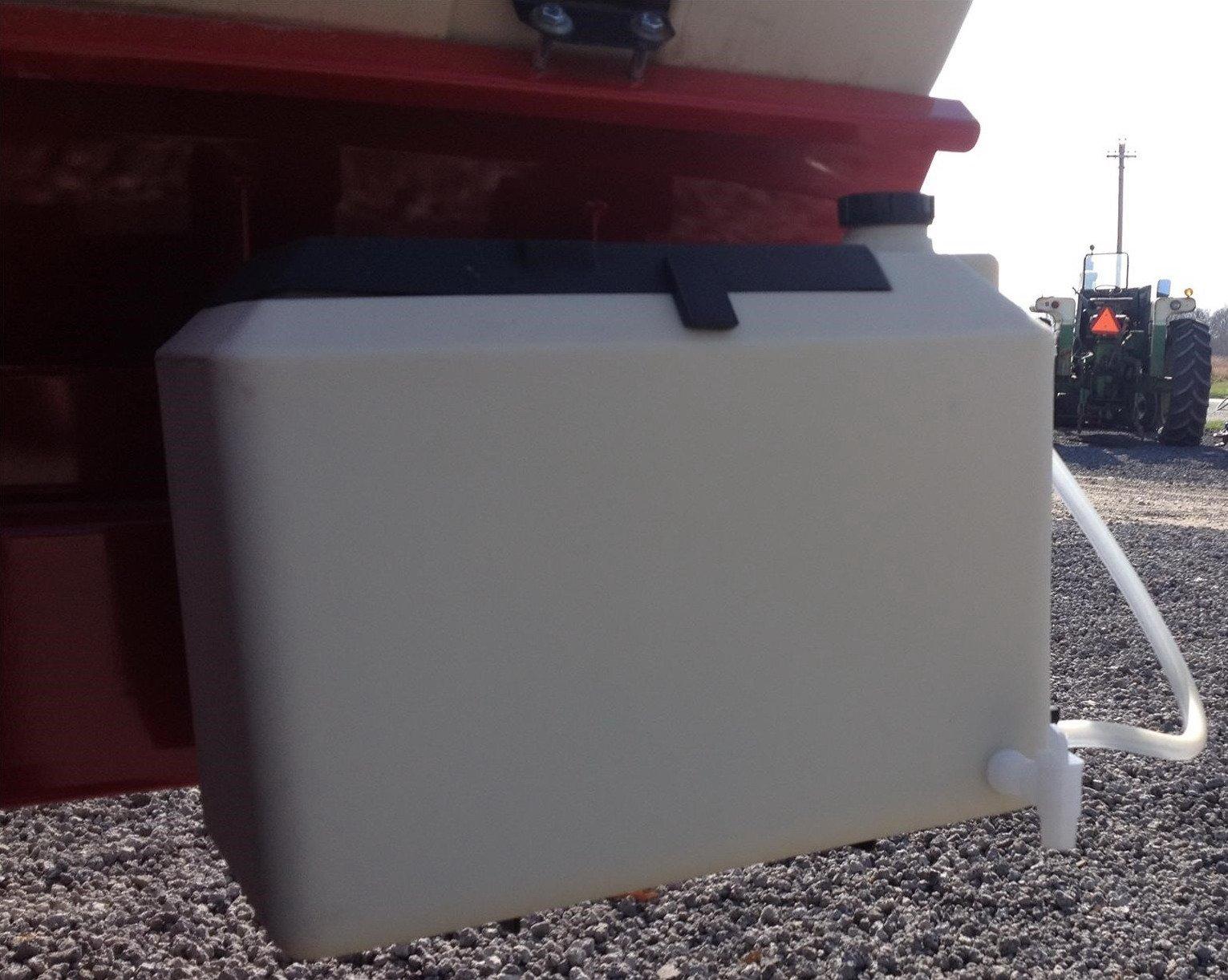

    Extra tank Extra tank
    In accordance with the safety requirements regarding any work or manipulation with chemicals, a tank with clean water for washing hands, rinsing eyes and mouth with a capacity of 34 liters is placed on the applicators.
  • Technical characteristics
    Model RSM AP-3800
    Tank size (capacity) 3800 liters, box-type discharge channel with a depth of 10 cm.
    Mounted tool bar - Two-cylinder height adjusting device
    - Double frame, 4 x 4
    Dimensions of tires 320/85R38
    Wheel spacing, m. Adjustable axle, 1.6-2
    Piping Hydraulically powered Ace centrifugal pump with Raven 450 controller
    Operating width, m. 8,5
    Applicators (knifed colters), pcs. 11/17
    Clearance under the bar, m. 0,43
    Transport width, m. 4,52
    Transport height, m. 3,48
    Transport length, m. 5,11
    Tank with fresh water for washing hands, L 34
    Spraying material tank filler neck diameter, cm 7,6
