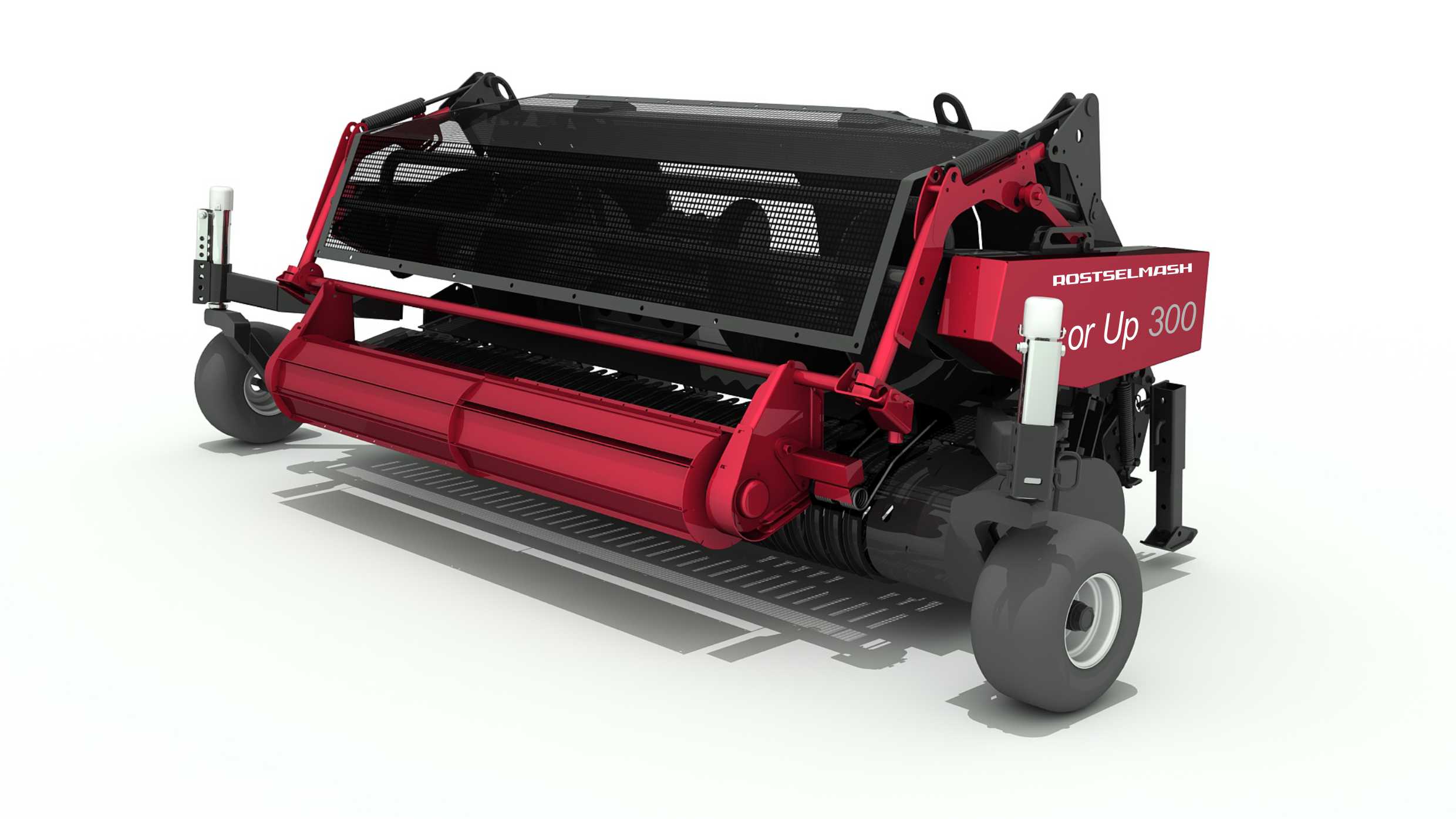

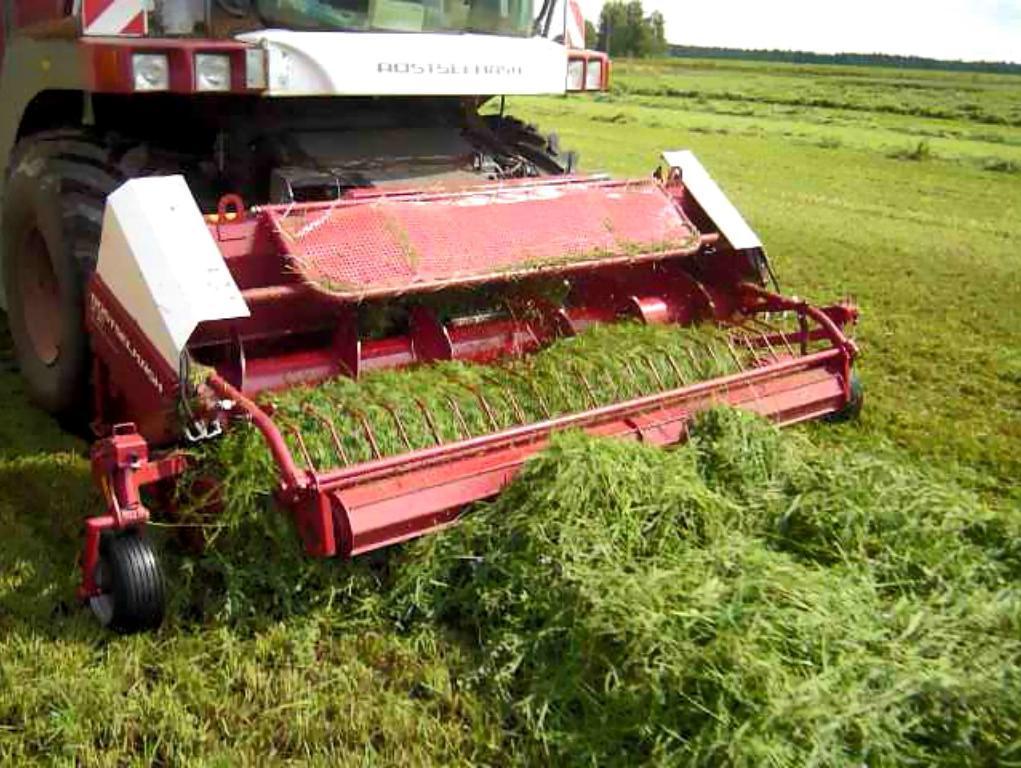

The mounted forage harvesting pickup ganged up with a forage combine harvester excellently picks up cut (mowed) prewilted grass swaths and deliver them to the combine feeder. The distinctive feature of the machine is its safe and quick operation. The mounted forage harvesting pickup is successfully used in all areas of lowland utilization.
The For Up 303 model of European origin is distinguished for the absence of a universal joint shaft (instead of which jaw couplings necessary for quick coupling with the combine are installed), for its overall transport dimensions (the width is 3 m), the contour following system (torsion bars are installed instead of spring cartridges), and for its drive (a unit consisting of three bevel gear speed reducers).
The mounted forage harvesting pickup ganged up with a forage combine harvester excellently picks up cut (mowed) prewilted grass swaths and deliver them to the combine feeder. The distinctive feature of the machine is its safe and quick operation. The mounted forage harvesting pickup is successfully used in all areas of lowland utilization.
The For Up 303 model of European origin is distinguished for the absence of a universal joint shaft (instead of which jaw couplings necessary for quick coupling with the combine are installed), for its overall transport dimensions (the width is 3 m), the contour following system (torsion bars are installed instead of spring cartridges), and for its drive (a unit consisting of three bevel gear speed reducers).
About the availability of equipment and basic configuration check at the dealership
- Description
- Technical parameters
- Ask a question
-
Quality advantages of the For Up 300/303 mounted forage harvesting pickup
Contour following

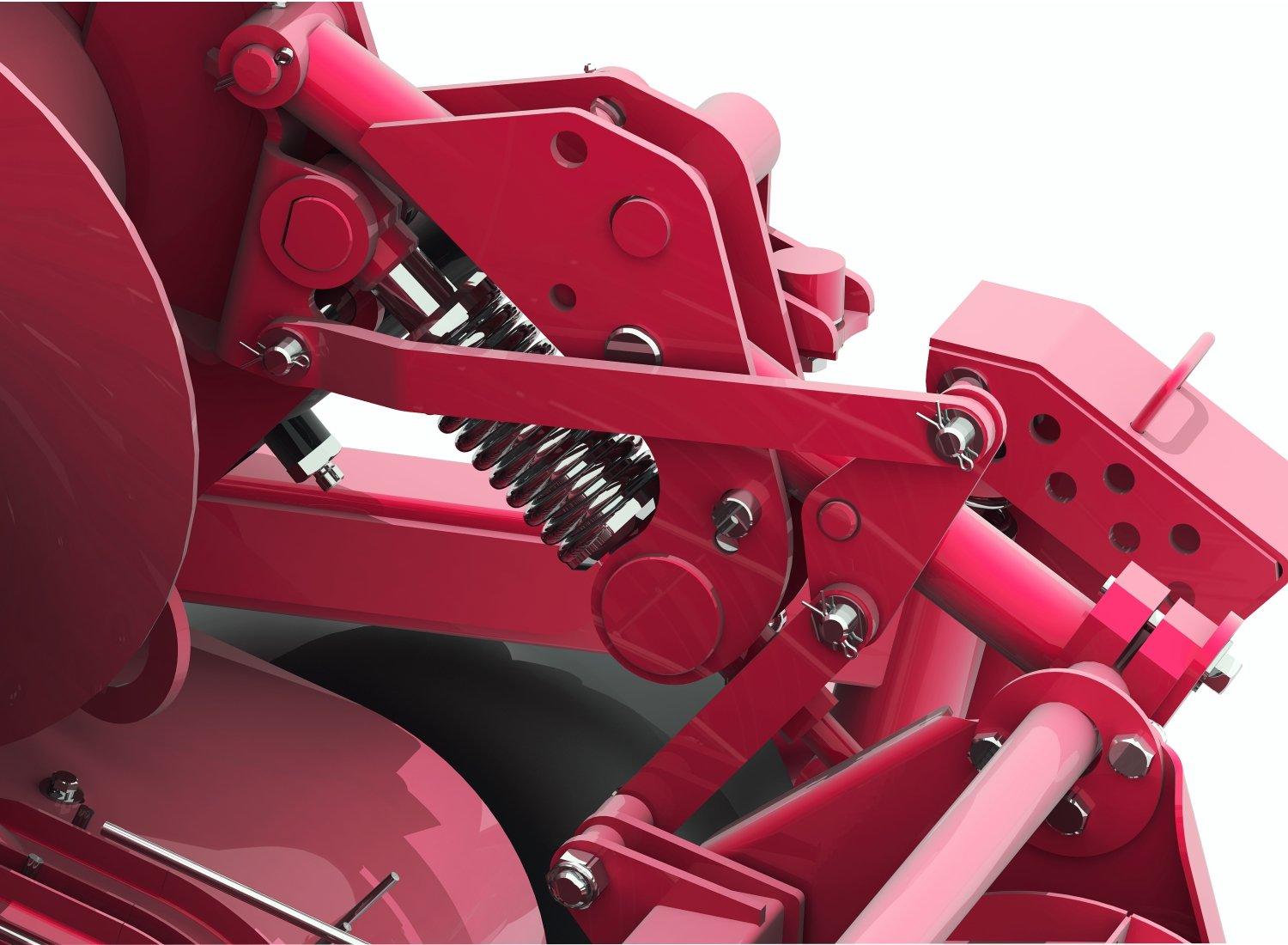

Due to the use ofn two spring cartridges the For Up 300 pickup excellently perform field contour following, which allows operating combines not equipped with an automatic contour following system.
Failure-free operation

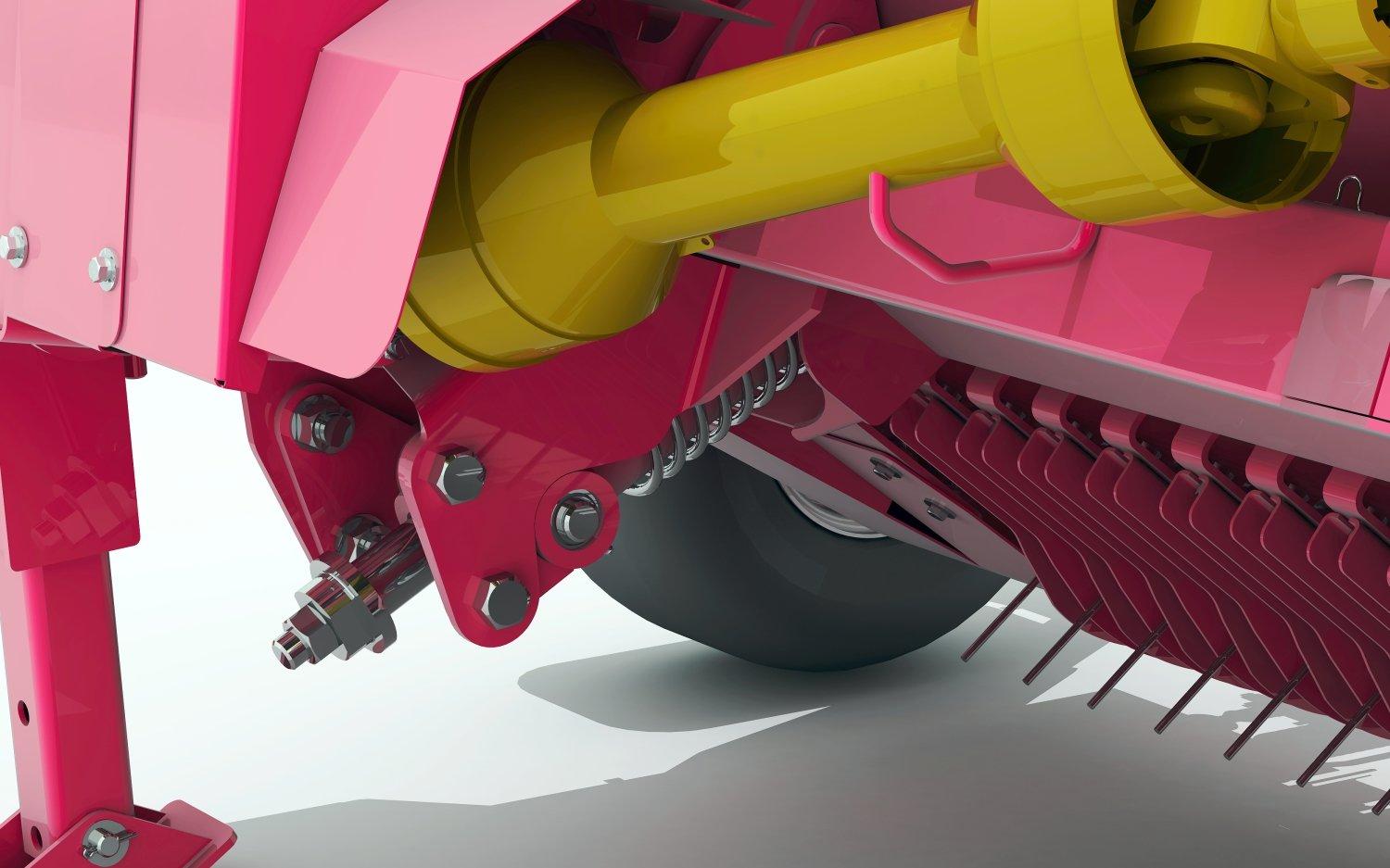

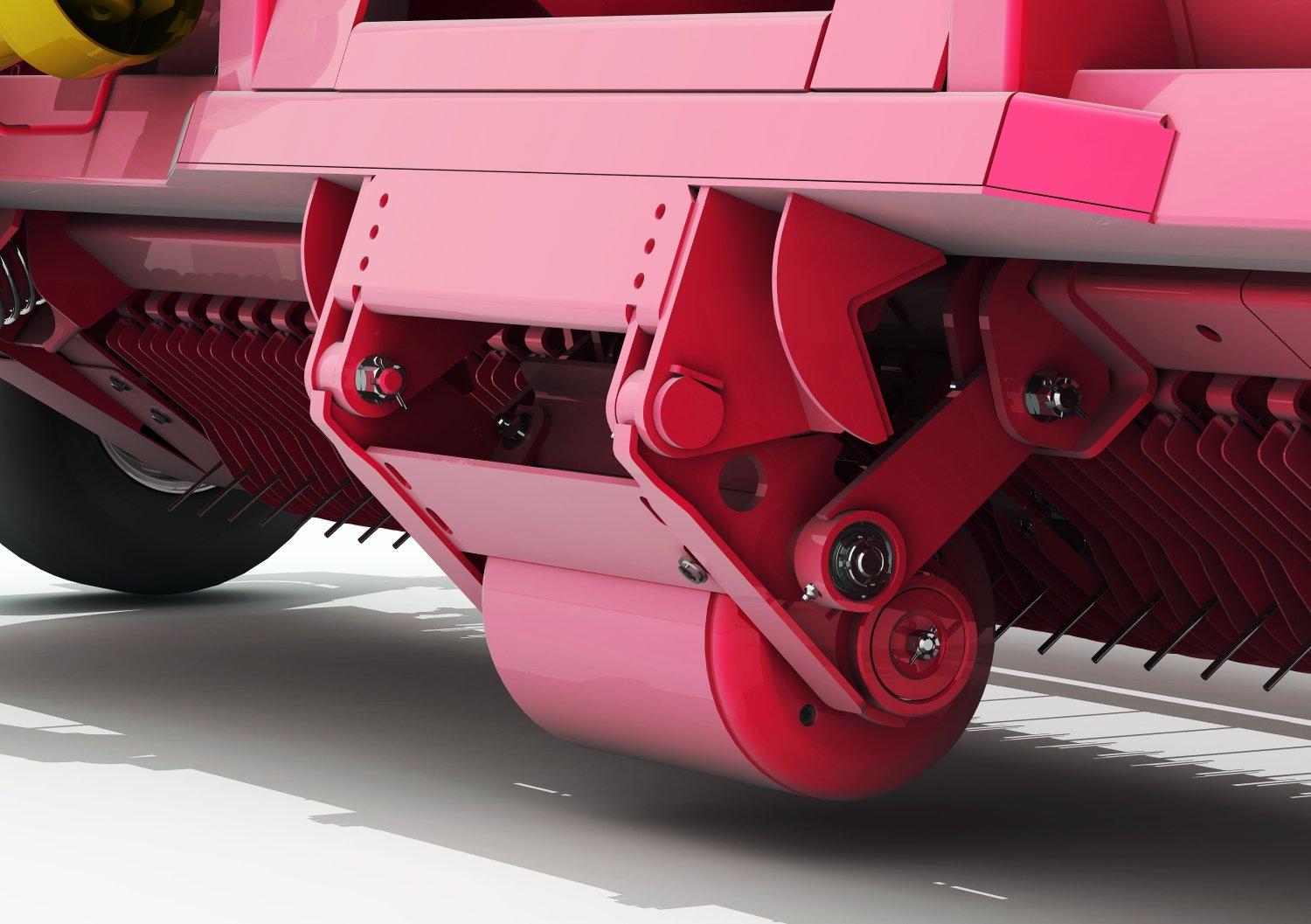

In case of operation on the field contoured surface the rear-end support roller prevents the pickup fingers from digging in the ground, as well as protects the fingers and the pickup device wheel pairs from damage.
Reduce of losses

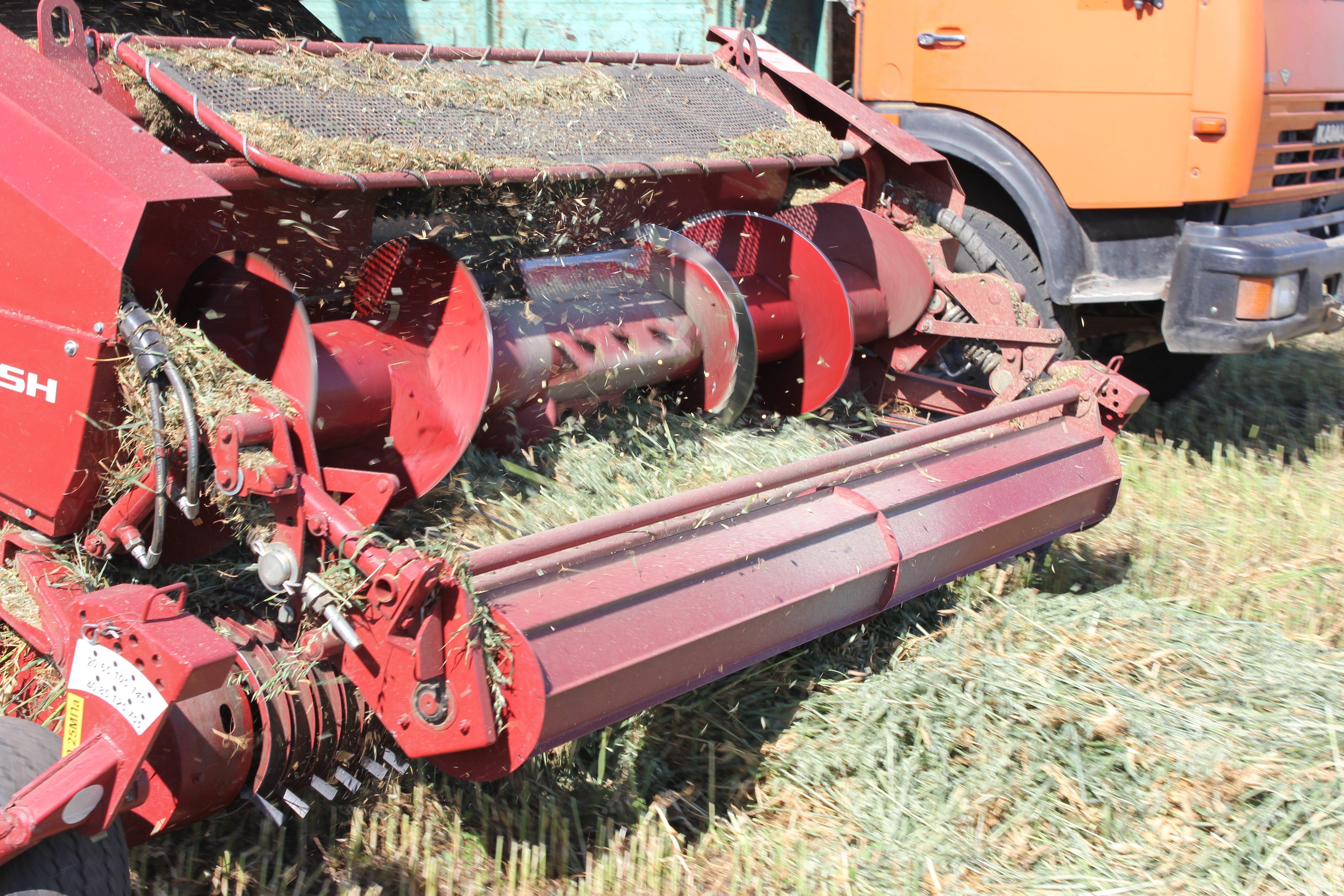

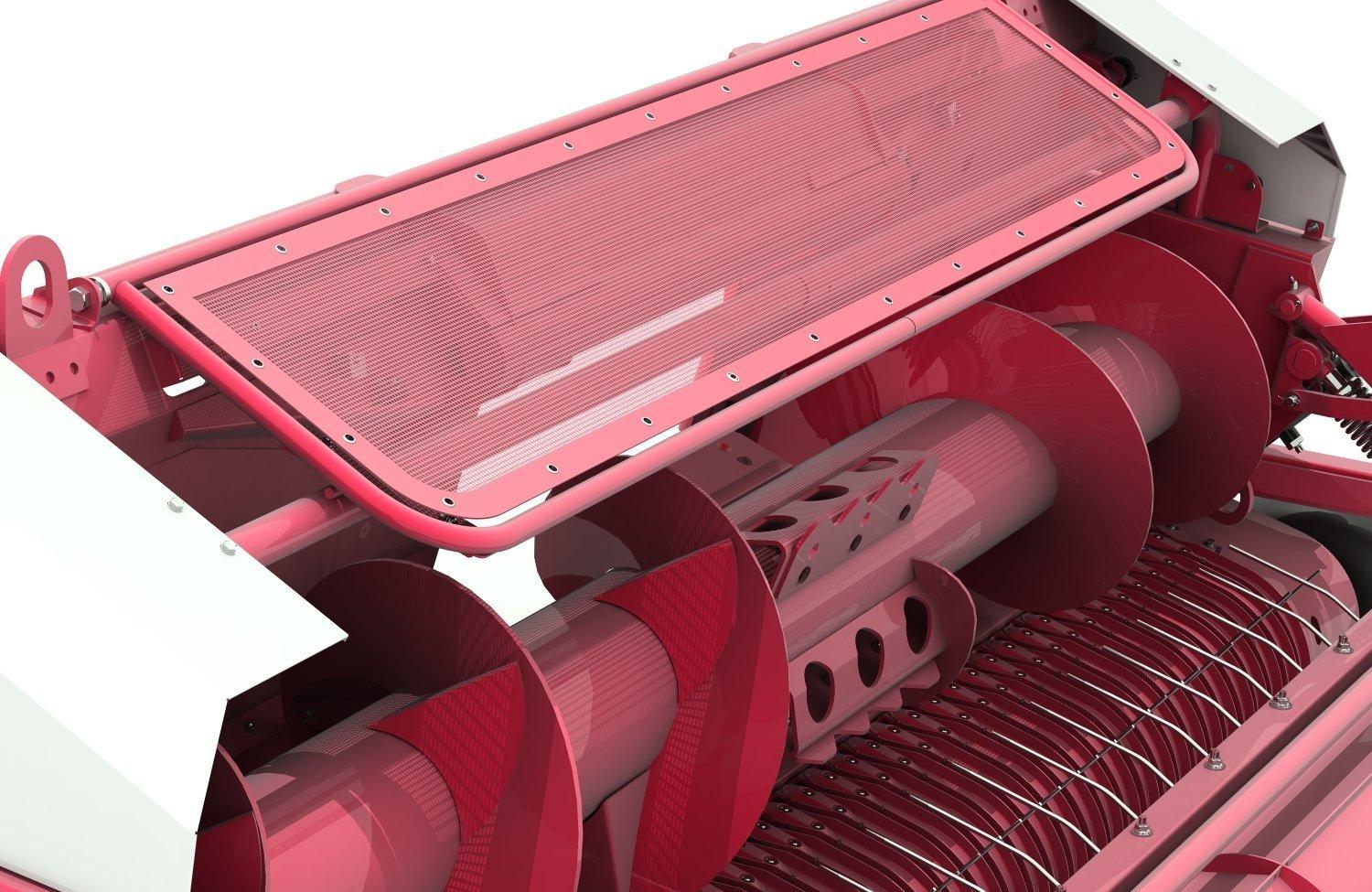

A special-purpose canopy is designed for preventing the auger from throwing mass over the pickup frame.
Normalizer design
Three variations of the normalizer design allow adjusting to swath shape and size by using a spring assembly or by means of the hydraulic system.
Reliable protection of machinery

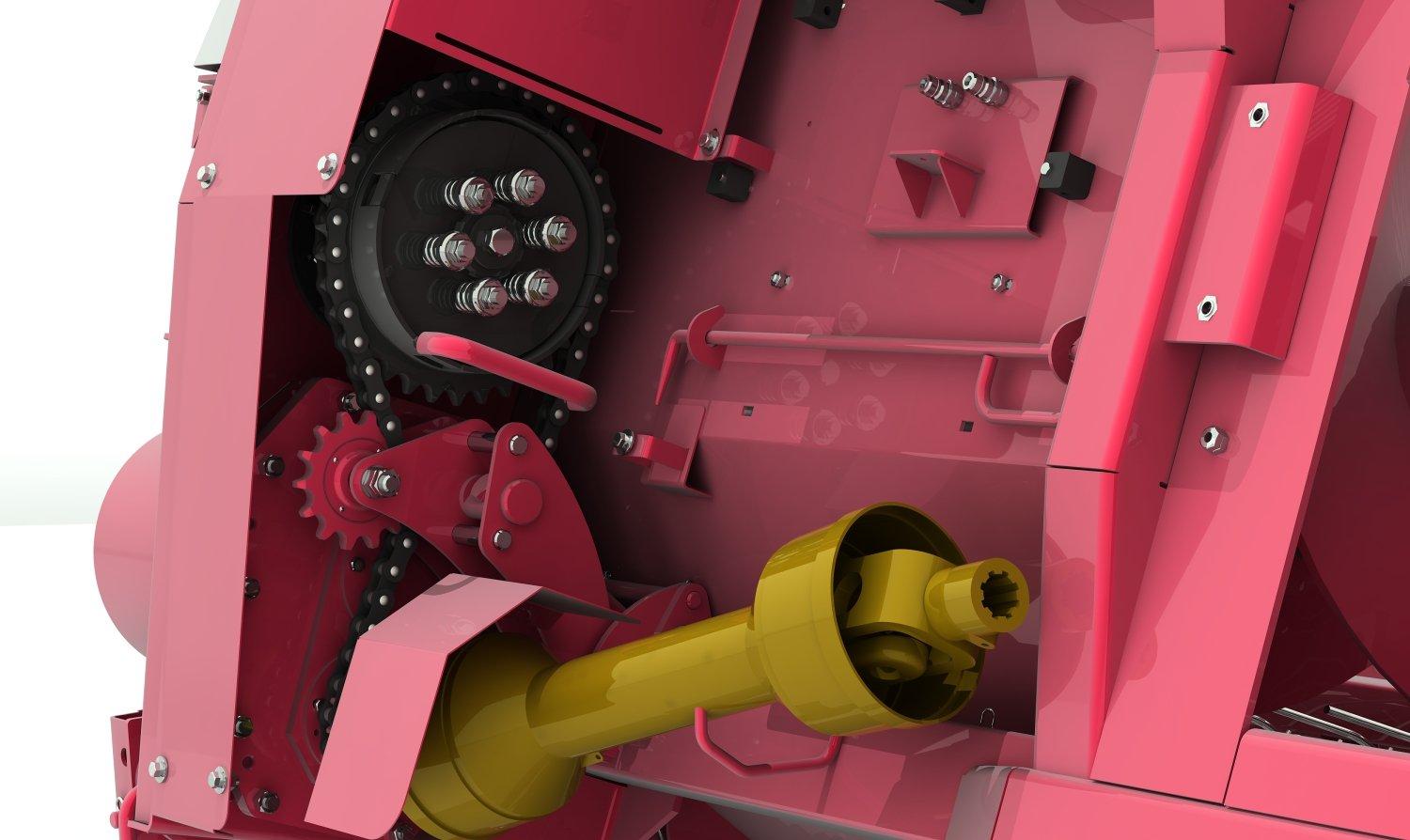

There are friction safety clutches installed on the pickup device (mechanism). Also the machine has a free-wheel clutch. For the purpose of preventing breakage of the pickup device rakes a protective shearing bolt is set. Thus, all the key mechanism and devices of the pickup are effectively protected from overloading.
Versatility

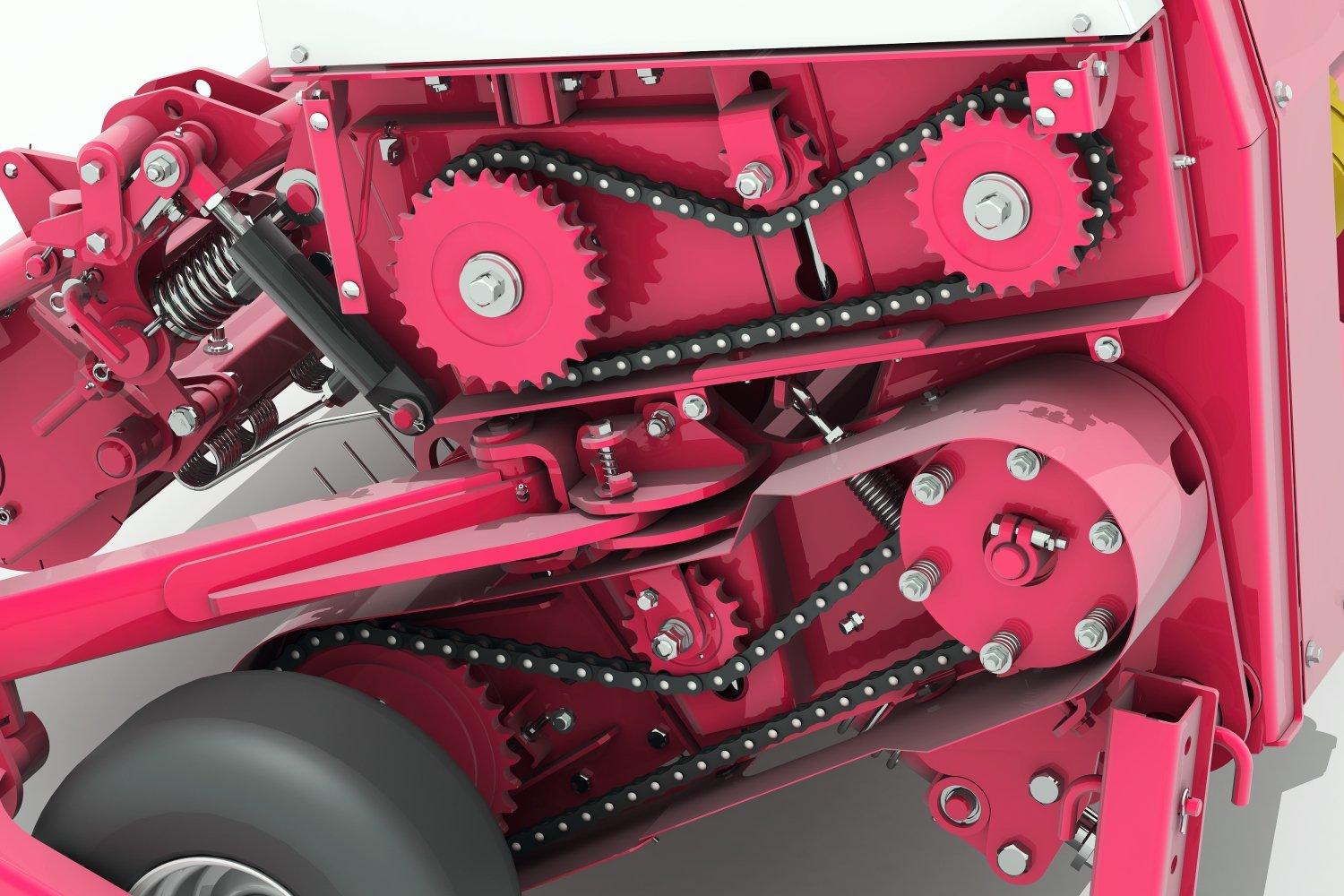

Due to the use of double reversible sprocket assemblies one can easily change the auger rotation speed depending on the yield capacity of crops being harvested. -
Technical characteristics Brand name For Up 300 Type Mounted Combine performance per hour of productive time, t/h, not less, at adjusted cutting length Cutting length, mm 4,0 7,0 10,0 17,0 at picking up prewilted grass swaths having humidity of 55%, weight of not less than 8 kg/m, ganged up with the RSM-1401 combine 17 25 40 67 at picking up prewilted grass swaths having humidity of 55%, weight of not less than 8 kg/m, ganged up with the RSM-1701 20 30 48 80 Operation travelling speed, km/h, up to 15 Operating width (designed), mm 3 000 Pickup overall dimensions, mm:
length
width
height
2200
3500
1500Weight, kg, not more 1 250 Driving shaft speed, RPM 570±10 Auger rotation speed, RPM 170...210 Pickup device rotation speed, RPM 129±10 Hydraulic system operating pressure, kgf/cm2 160 Contour following range (at the combine feeder angle of 64°)
crosswise contour following, degrees
longitudinal contour following, mm
±2
+120/-40 -
