Forage-harvesting machines
Forage-harvesting machinesTrailer sprayersFertilizationGrain-processing machinesAdapters for harvesting machinesMunicipal machinesTillage equipment
-
Adapters to forage-harvesting combines
MowingRakingPressing
-Grass Header 500D

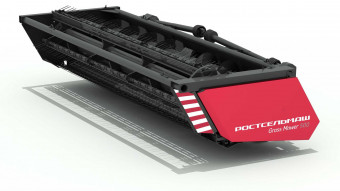

Grass Header 500D


  • Grass Header 500D
  • Grass Header 500D
Order
GRASS-HEADER-500D
To achieve cattle efficiency it is necessary to provide such cattle with green fodder and haylage. Perfect quality of fodder can be provided using grass cutting machine Grass Header 500D, which operates as a part of an aggregate with a forage harvester and cuts filicauline cultures having a height up to 1.5 m. Optimum cutting length is achieved in the process of cutting even on fields having uneven surface due to special design: there is a balance unit installed on the cutting machine, which allows providing failure-free operation of the machine during the whole process of cutting.
Share
About the availability of equipment and basic configuration check at the dealership
  • Description
  • Technical parameters
  • Ask a question
  • Качественные преимущества жатки для уборки трав Grass Header 500D

    High-quality cutting High-quality cutting
    The positions of the knives can be adjusted up or down depending on operation conditions. It allows increasing the performance of the cutting machine.
    Contour following system Contour following system
    The ability of soil contour following guarantees efficient use of the cutting machine on any fields having uneven surface.
    Enhanced reliability Enhanced reliability
    The increased diameter of the reel pipe allows carrying out conservation of haylage and green fodder easily.
    Minimum maintenance time Minimum maintenance time
    Easy-to-reach lubrication points and simple clearance adjustment allow performing current maintenance of the machine easily.
    Balance unit Balance unit
    The machine body can be moved longwise and crosswise.
  • Technical characteristics
    Model Grass Header 500D
    (RSM-100.70)
    Operating width (designed), mm 4 950
    Performance, t/h, up to 50
    Reel 4-blade, spring-tine
    Cutting height, mm, in case of surface contour following 50±15; 100±15; 150±15
    Cutting unit Two-knife, segment-type
    Knives drive Planetary gear reducer
    Knives cutting planes Interchange of lower and upper planes
    Knives stroke, mm 85
    Cutting speed, stroke/min 573
    Weight, kg 1 700
