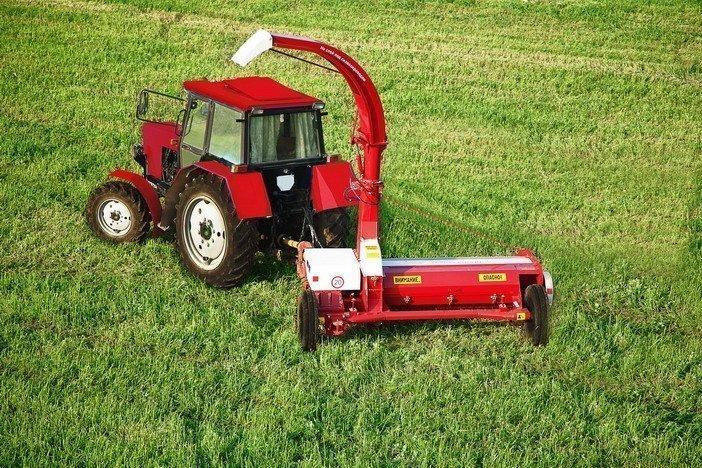

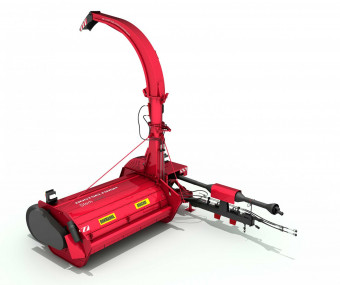

Trailer forage harvester Sterh is designed with consideration of the last technologies. Its multifunctional ability will pleasantly surprise the most requiring agricultural specialists: it not only mows and lays into swath the grass, tops of sugar beet and potato, but also chips, finishes and performs loading of the product into vehicle. The product loading can be performed into near moving vehicle, as well as backwards into trailer, what is very convenient. The harvester productivity achieves 38 t/h, which is incredible result with almost complete lack of losses. The result is the exemplary forage. The working elements of the machine are made of metal of high quality, therefore they will serve within the long period of time.
Trailer forage harvester Sterh is intended for obtaining high-quality forage, as well as:
Option:
Trailer forage harvester Sterh is designed with consideration of the last technologies. Its multifunctional ability will pleasantly surprise the most requiring agricultural specialists: it not only mows and lays into swath the grass, tops of sugar beet and potato, but also chips, finishes and performs loading of the product into vehicle. The product loading can be performed into near moving vehicle, as well as backwards into trailer, what is very convenient. The harvester productivity achieves 38 t/h, which is incredible result with almost complete lack of losses. The result is the exemplary forage. The working elements of the machine are made of metal of high quality, therefore they will serve within the long period of time.
Trailer forage harvester Sterh is intended for obtaining high-quality forage, as well as:
- for mowing grass and laying it into roll with further pickup and loading in the accompanying vehicle;
- for mowing, chopping and loading tops of sugar beets and potatoes with row spacing of 45 cm and 70 cm into the vehicle;
- for mowing, simultaneous grinding and loading in the vehicle of seeded and natural grass and corn without cobs and other silage crops up to 1.5 m height with the further use of grass mass for animal feeding or forage conservation;
- for mowing, grinding and spreading across the field of shredded sunflower stubble, remaining on the field after the harvesting of sunflower seeds.
Option:
- Shredder with 8 knives;
- Extension spout of silage guide for loading into the vehicle with side height up to 4 meters
About the availability of equipment and basic configuration check at the dealership
- Description
- Technical parameters
- Video
- Ask a question
-
It can be aggregated with tractors of 1.4 drawbar category, and PTO speed of 540 rpm
Quality advantages of trailer forage harvester Sterh
Multifunctional ability
Special shape of rotor knives allows the machine to work not only for dressing, but also for harvesting the haylage: after mowing the grass mass with laying it into swath and its drying up to required humidity depending on soil fertility, forage harvester Sterh can pick up the swath with simultaneous shredding the mass and loading it into vehicle.
Several options for grass mass loading

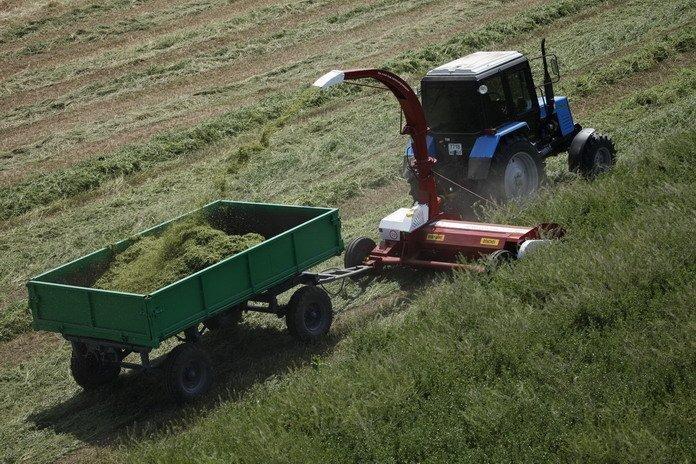

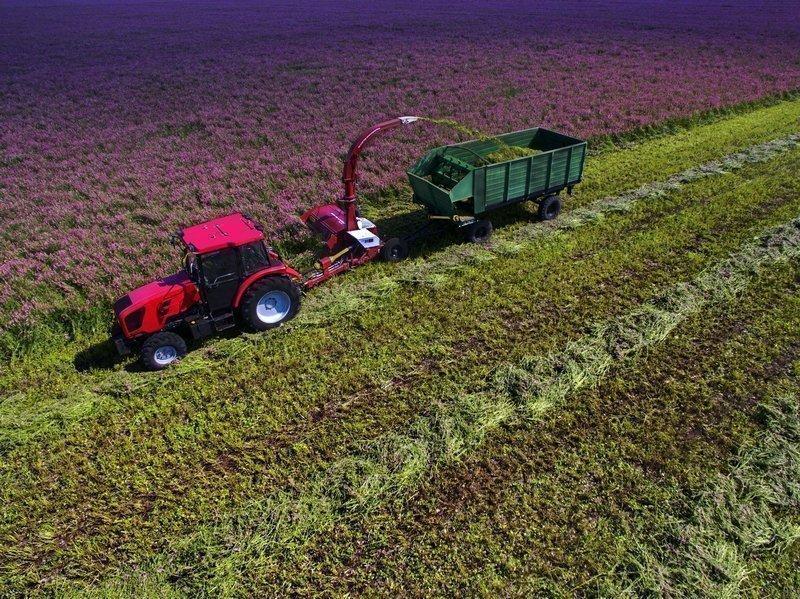

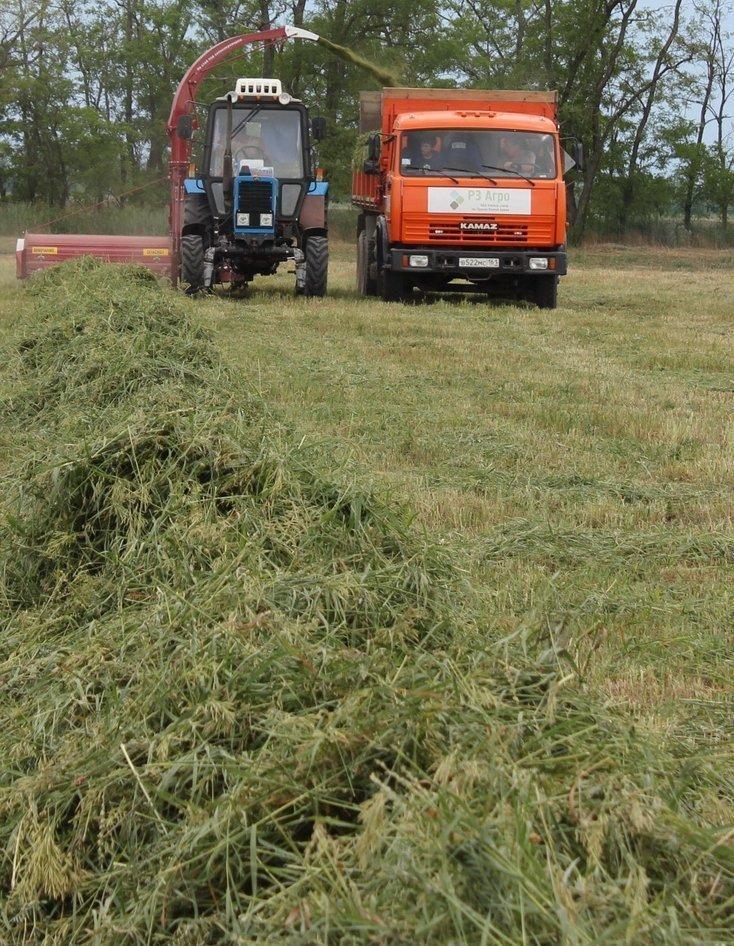

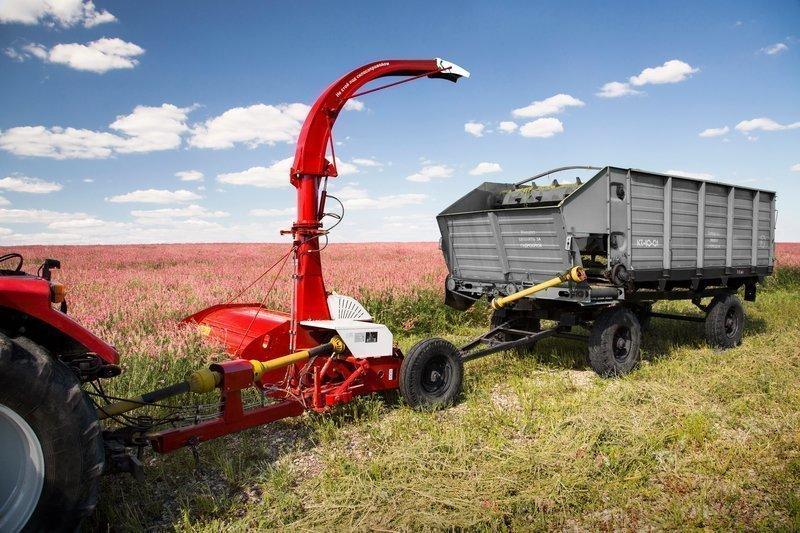

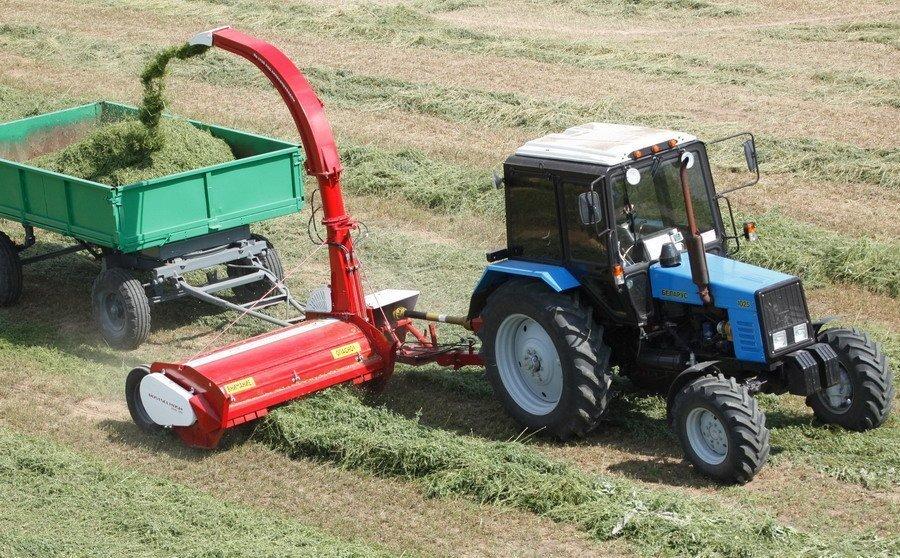

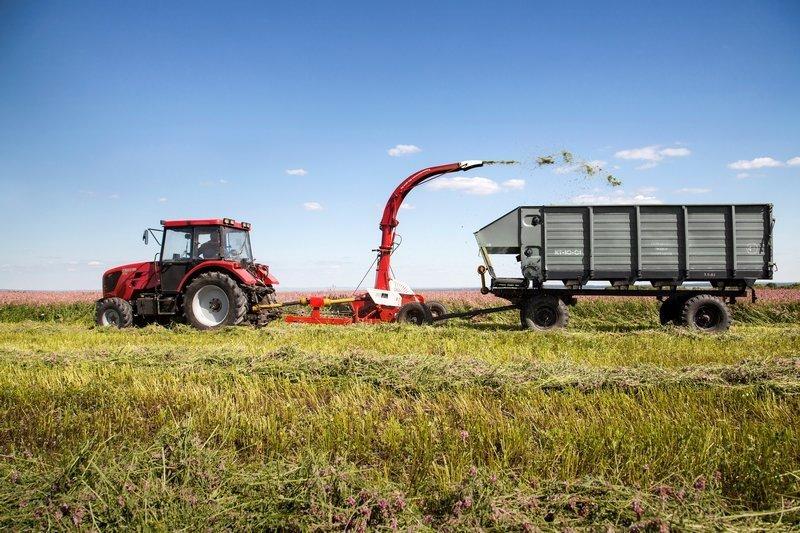

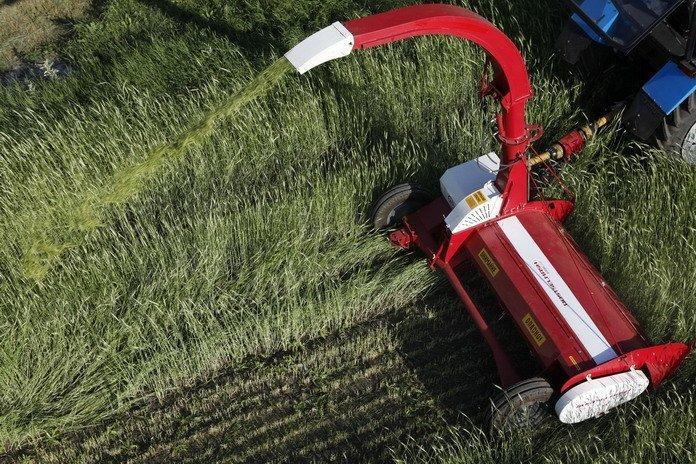

Loading of grass mass can be performed through silage guide into near moving vehicle as well as back into hopper trailer. It allows to choose the scheme of work depending on free equipment available.
Long term life and long operation of the harvester
All parts are made of high quality metal, which extends the harvester service life. Self-sharpened knives have the special hardness, and they are made of special alloyed steel, which provides clean cut and excludes the breakage of a knife and getting it into shredder when hitting an obstacle, as well as extending the service life of the harvester.
Operation convenience
Due to hydraulic drive of silage line, the unloading control is performed from the cabin, which makes the work of tractor operator much easier.
The knives service life is increased twice
Efficiency in mowing and shredding process is provided by double-bladed knives: the wear of knife does not require its replacement. The work can be continued at the same time, if the knife is turned over. It allows to increase the service life of knives twice.
Easy maintenance
Maintenance of the forage harvester Sterh is extremely easy and does not require special tools and equipment: convenient access to shredder knives for their replacement and all lubrication points is provided.
Maximum efficiency
Rotational speed of the shredder achieves 1000 rpm. Reliable gearbox and ability to work at high speed allow to achieve efficiency of 38 t/h.
Auger protection
Auger drive of the harvester is equipped with safety shear bolt. It prevents auger from breakdown at critical overloads.
Finer grinding (optional)
The shredder with eight blades allows to achieve smaller fraction of chopping mass. It certainly affects the quality and digestibility of the forage.
Increased loading height (optional)
The extender of silage guide is used for loading into the vehicles with a side height up to 4 meters.Documents
Certificate of Conformity_09.06.2023_Sterh Размер: 499,9 кб -
Technical specification Type semi-trailer Efficiency, t/h, up to 38 Working width, m 2,0 Weight, kg, not more than 1250 Overall dimensions, mm, not more than
Operating position
— Length
— Width
— Height
Transportation position
— Length
— Width
— Height
4360
3350
3750
3400
3225
2700Transportation speed, km/h, not more than 20 Operating speed, km/h, not more than 7,2 Unloading direction backward, or to the left Height of shredded mass feeding, m, not less than 3,5 Number of cutting knives on shredder, pcs 4 Length of pieces in mass, mm, not more than 20 Cutting height, cm 60...150 Shredder rotational speed 1000 PTO speed, rpm 540 -
-
