The enhanced capabilities of Pelikan round baler will catch fancy of all agricultural producers. It is designed for selecting hay balers of native and seeded grasses or straw, their compaction and consequent winding with binder twine. For pressing and rolling short-stalked hay and straw we recommend using the Commissioning Manual for Pelikan round baler.
Harvesting high humidity hay for providing side-dressing is also possible. Equal degree of compaction (pressing) provides long-term storage of fodders. This criterion is one of the most important criteria when selecting a round baler.
Using Pelikan you receive perfectly even balers, which do not fall apart and settle down. Quick unloading of ready-made balers and well-timed lifting of the pressing chamber will allow reducing operation time. Easy control and operation monitoring allow not being concerned about the process, and the electronic balers counting and operation time control optimize ready-made balers counting. The Round baler can be aggregated with tractors of 1.4 ton per second drawbar category. Due to its multiple-unit pressing chamber Pelikan PPR-120 Round baler forms balers having equal compactness both in their center, and on their edge. That is why the Round baler is perfectly suitable for fodder conservation according the “Packed Haylage” technology. Packed haylage retain sugar, proteins, and high nutritional value for a long time very well. Even after giving one feed one can receive addition milk weighing up to one kilogram. Thus, the “Packed Haylage” technology allows improving animal industry profitability. We recommend using baler wrapper ORS-1200 for balers foil wrapping. We recommend using the self-loading balers transportation trailer for automated balers collection and transportation.
Optional equipment:
The enhanced capabilities of Pelikan round baler will catch fancy of all agricultural producers. It is designed for selecting hay balers of native and seeded grasses or straw, their compaction and consequent winding with binder twine. For pressing and rolling short-stalked hay and straw we recommend using the Commissioning Manual for Pelikan round baler.
Harvesting high humidity hay for providing side-dressing is also possible. Equal degree of compaction (pressing) provides long-term storage of fodders. This criterion is one of the most important criteria when selecting a round baler.
Using Pelikan you receive perfectly even balers, which do not fall apart and settle down. Quick unloading of ready-made balers and well-timed lifting of the pressing chamber will allow reducing operation time. Easy control and operation monitoring allow not being concerned about the process, and the electronic balers counting and operation time control optimize ready-made balers counting. The Round baler can be aggregated with tractors of 1.4 ton per second drawbar category. Due to its multiple-unit pressing chamber Pelikan PPR-120 Round baler forms balers having equal compactness both in their center, and on their edge. That is why the Round baler is perfectly suitable for fodder conservation according the “Packed Haylage” technology. Packed haylage retain sugar, proteins, and high nutritional value for a long time very well. Even after giving one feed one can receive addition milk weighing up to one kilogram. Thus, the “Packed Haylage” technology allows improving animal industry profitability. We recommend using baler wrapper ORS-1200 for balers foil wrapping. We recommend using the self-loading balers transportation trailer for automated balers collection and transportation.

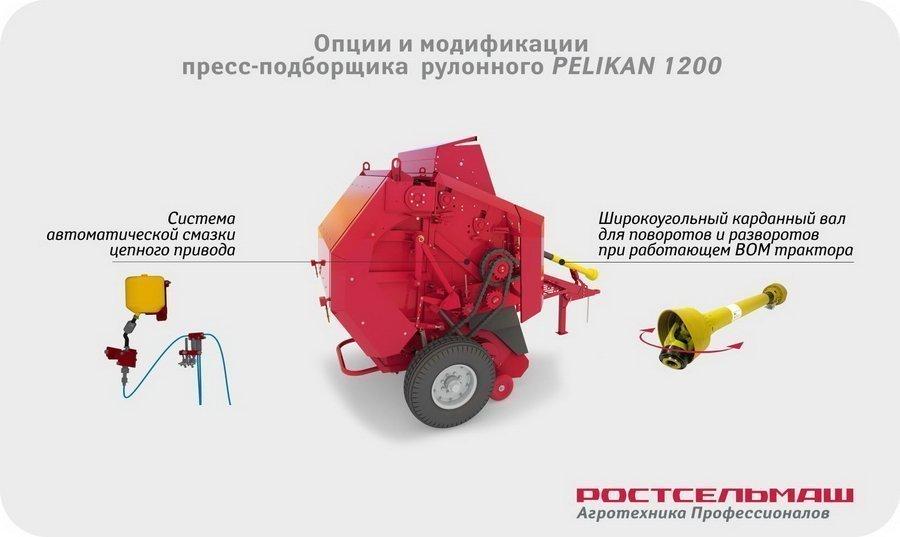

Optional equipment:
- Centralized driving chains lubrication system
- Wide-angle drive shaft
- Conservant application system
About the availability of equipment and basic configuration check at the dealership
- Description
- Technical parameters
- Video
- Ask a question
-

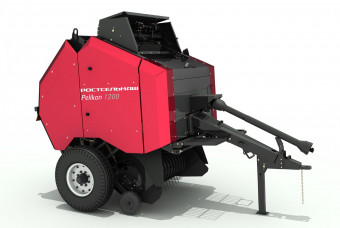

Quality advantages of Pelikan 1200 round baler
Highest compaction bales
The rolling presses at the front and the bar chains at the rear of the Round baler provide forming balershaving highest compaction. Even if material is in a very dry or wet condition, the combined system stably forms compactly presses balers. The availability of two systems in the Round baler provides the following advantages:
1. The bar chains at the rear of the machine begin forming a balervery early, due to which the center of such a balerbecomes more compact;
2. The rolling presses at the front of the machine give optimum shape to balers and provide high pressing compaction at the end of the process of bale formation.

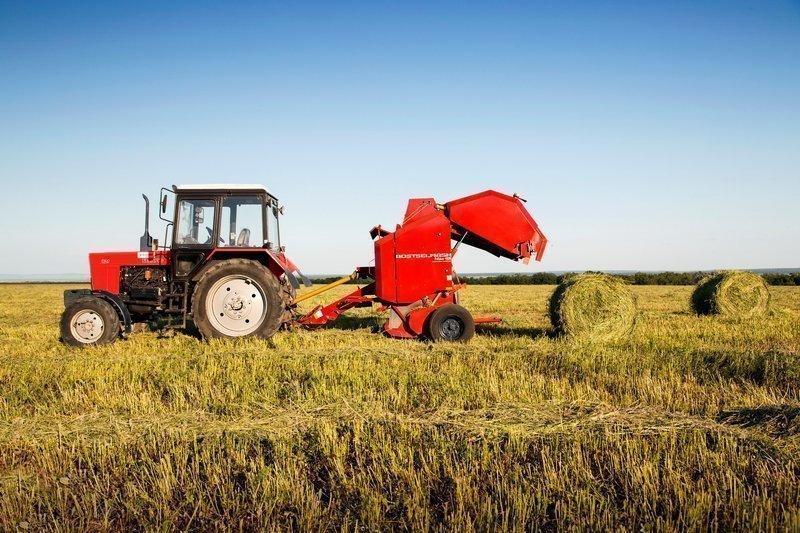

Quick lift of the pressing chamber
The pressing chamber hydraulic lift cylinders have diameter of 50 mm. It allows reducing lifting time up to 4 seconds, which is 60% quicker than the lifting time being achieved by using hydraulic cylinders having diameter of 80 mm.
Absence of any moments distracting from the process of tractor operation
Using a clearly visible control console in the tractor cab it is easy to monitor the process of the pressing chamber filling, switch on and control the wrapping process, as well as to monitor and control the moment of the pressing chamber opening and closing. As a result, an operator is not distracted for performing visual inspection of the Round baler units and can fully concentrate on the process of tractor operation. The control console is also fitted with an electronic balers counting system.
High-speed wrapping device
The double-unit wrapping device operates 67% quicker than a single-unit wrapping device. Due to it the performance of Pelikan Round baler is increased by 30%.

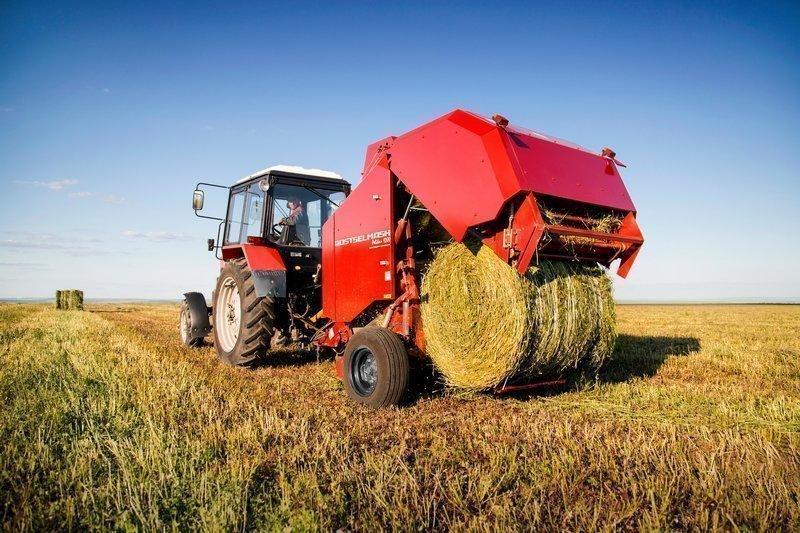

Well-timed and quick roll unloading

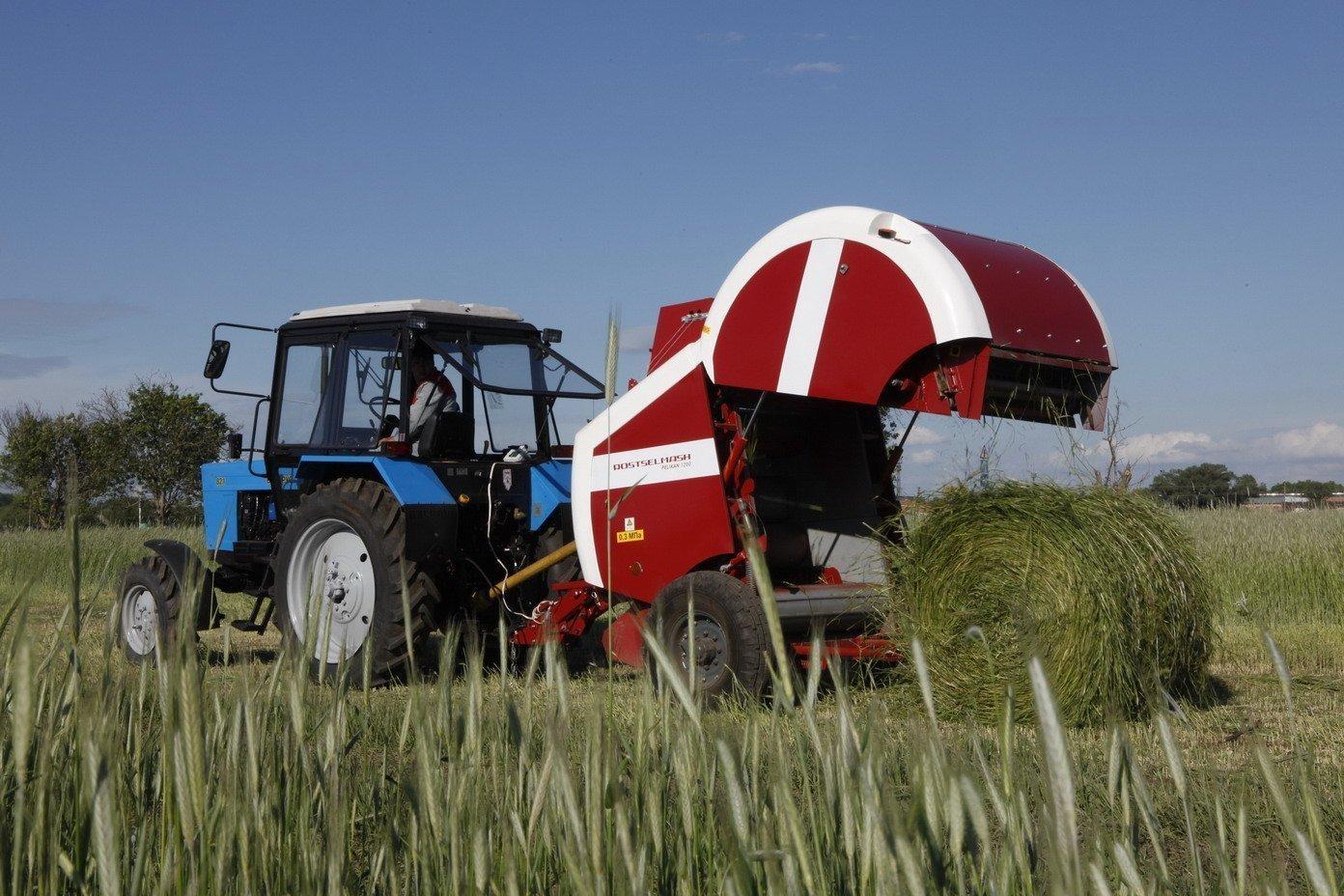

Due to the availability of a slide board having strong springs rolls can easily slide beyond the trajectory of the pressing chamber closure, and a tractor operator does not need to move back in the process of unloading. The result: the unloading time is equal to 8 seconds in total.
Protection of the pressing chamber from damage
The large diameter of the Round baler helps to avoid getting of stones and foreign objects in the pressing chamber.
Trouble-free and reliable operation and safety provision in case of emergency
The imported drive shaft and the safety clutch provide reliable driving.
Automated clean-up scrappers of the rolling presses
There are automated clean-up scrappers are installed on the Pelikan Round baler. The clean-up scrappers prevent the machine from accumulating plant remains between the wall of the pressing chamber and the ends the rolling presses. This solution allows essentially reducing maintenance time. -
Technical information Type Semitrailer-type Capacity, t/hour, up to 10 Operating width, mm/td> 1450±50 Capacity for hay, kg/s 5* Performance per hour of the basic time, t/h, up to 10* Travelling speed, km/hour, not more 20 Pressing compaction for hay, under humidity of 15-30%, kg/m3 120…200 Pressing compaction of prewilted grasses, under humidity of up to 55%, kg/m3 up to 350 Bale diameter, m 1.2 Bale length, m 1.2 Bale weight, up to, kg (depending on humidity) 270 Power consumption, not more, kW 45 Overall dimensions, not more, mm,
Length
Width
Height
3850
2350
2550Weight (tare weight), kg, not more 2500 Size of running wheel tires, inch 9/16 Tire pressure, MPa 0.3 Transport clearance, mm 250 Operation speed, m/s (km/h) 2.5 (9) Travelling speed, m/s (km/h) 2.77 (10) Operating personnel, persons 1 (tractor operator) Tractor PTO shaft rotation speed, rpm 540 -
-
