Home English-The catalogue-
Forage-harvesting machines
Forage-harvesting machinesTrailer sprayersFertilizationGrain-processing machinesAdapters for harvesting machinesMunicipal machinesTillage equipment
-
Pressing
MowingRakingAdapters to forage-harvesting combines
-Baler Tukan Max

Baler Tukan Max


  • Baler Tukan Max
  • Baler Tukan Max
  • Baler Tukan Max
  • Baler Tukan Max
  • Baler Tukan Max
  • Baler Tukan Max
  • Baler Tukan Max
  • Baler Tukan Max
  • Baler Tukan Max
  • Baler Tukan Max
  • Baler Tukan Max
  • Baler Tukan Max
  • Baler Tukan Max
  • Baler Tukan Max
  • Baler Tukan Max
  • Baler Tukan Max
  • Baler Tukan Max
  • Baler Tukan Max
  • Baler Tukan Max
  • Baler Tukan Max
  • Baler Tukan Max
Order
Ширина захватаРазмер тюка, смСчетчик тюковПульт управленияГарантия
Tukan Max line PPT-1270/1260/680 bailers providing the lowest possible fuel consumption per ton of product and the favorable ratio of the machine value provide also the maximum performance and multifold possibilities of their use. All the components and parts of the Tukan Max balers are designed for operation at high speed and maximum performance. You will be able to treat not only hay or straw, but also renewable industrial cultures such as hemp, soy straw, and corn stover..
Due to the availability of 6 high-performance knotting units bales are not only bound quickly and securely, but also do not contain twine fragments, which guarantees high digestibility of forage. Besides, in case of industrial use of bales formed by the Tukan Max balers plastic fragments are not burnt and processed together with plants.
Optionally, the balers can be completed with bale accumulators, which allow discharging two bales put on top of each other compactly and simultaneously. The maximum bales compaction density, effective logistics being applied in the process of vehicles loading have made the bales dimensions of 120x70 or 120х60 cm the most preferable. PPT-1270 balers are ganged up with tractors having pulling force not less than 2 tons per second.
For automated picking up and transporting bales we recommend using the self-loading bale carrier.
Standard equipment:
  • Remote control panel;
  • Wide-angle drive shaft;
  • Two gauge wheels for the baler;
  • Pressure sensor;
  • Automated knotting units blower;
  • Twine breaking indicator (sensor).
Optional equipment:
  • Last bale pusher;
  • Bale accumulator (staer);
  • Tandem chassis;
  • Humidity sensor;
  • Automated fixed parts lubrication system;
  • Automated chains lubrication system;
  • Drive shaft middle support
Share
About the availability of equipment and basic configuration check at the dealership
  • Description
  • Technical parameters
  • Video
  • Ask a question
  • The Tukan Max baler can be ganged up with tractors having drawbar category equal to 2 tons per second

    Quality advantages of the Tukan Max 1270 large-size bales binding baler

    Maximum compaction density Maximum compaction density
    The bales compaction density is controlled by four hydraulic cylinders, which continuously press bales providing maximum compaction density.
    Wide baler Wide baler
    The 2.2 m wide baler is fitted with two rubber wheels and is controlled by hydraulic system. It allows providing ideal field contour following and treating both wide and narrow hay and straw swaths with equal efficiency.
    Flywheel optimal performance Flywheel optimal performance
    The 300 kg flywheel plays a role of an energy accumulator, which allows balancing peak loads providing optimal performance of all the parts and units of the baler.
    Compaction density control Compaction density control
    You can see desired compaction density value from the tractor cab by looking at the pressure gauge, which is installed at the front of the baler.
    Longtime continuous operation Longtime continuous operation
    The overall capacity of the 2 sections provided for twine bundles (reels) allows placing up to 18 reels, which provides longtime operation of the baler and, consequently, allows saving time.
    Time and efforts saving Time and efforts saving

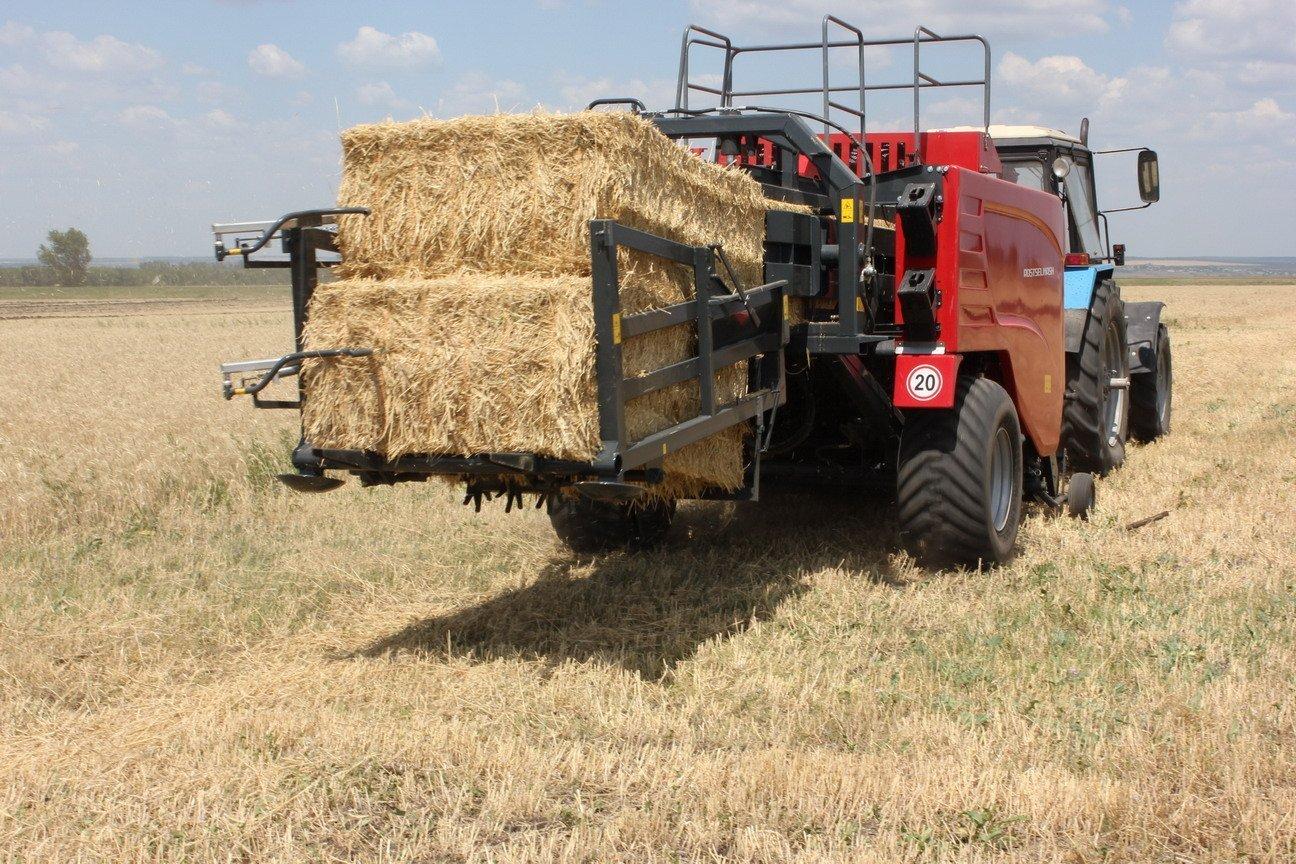

    The baler can be completed with a bale accumulator, which allows discharging two bales put on top of each other compactly and simultaneously.
    No factors diverting from running a tractor No factors diverting from running a tractor
    The remote control panel installed in the tractor cab allows monitoring and controlling the following processes: twine binding, bales discharge (unloading), compaction density, partial or overall counting bales, operation of the knotting units blower fans.
  • Technical characteristics of Tukan Max
    Model PPT-680 PPT-1260 PPT-1270
    Pickup mechanism width, mm. 1900 2200 2200
    Bale dimensions, mm:
    Width
    Height
    Length

    800
    600
    from 1000 до 2500

    1200
    600
    from 1000 to 2500

    1200
    700
    from 1000 to 2500
    Bale density, kg/m3:
    Hay
    Straw

    210-260
    120-150
    Bale weight, kg.
    Hay
    Straw

    Up to 300
    Up to 180

    Up to 470
    Up to 270

    Up to 550
    Up to 340
    Number of knotting units 4 5 6
    Knotting units cleaning system 2 fans 3 fans 3 fans
    Piston stroke rate, per minute 52
    Braking system Hydraulic
    Tractor PTO shaft speed, RPM 1000
    Power consumption, h.p./sq.m. 70/52 85/61 100/75
    Dimensions: length/width/height, mm. 6800/2460/2900 6800/2460/2900 7050/2640/2950
    Baler weight, kg. 5100 5500 5900
