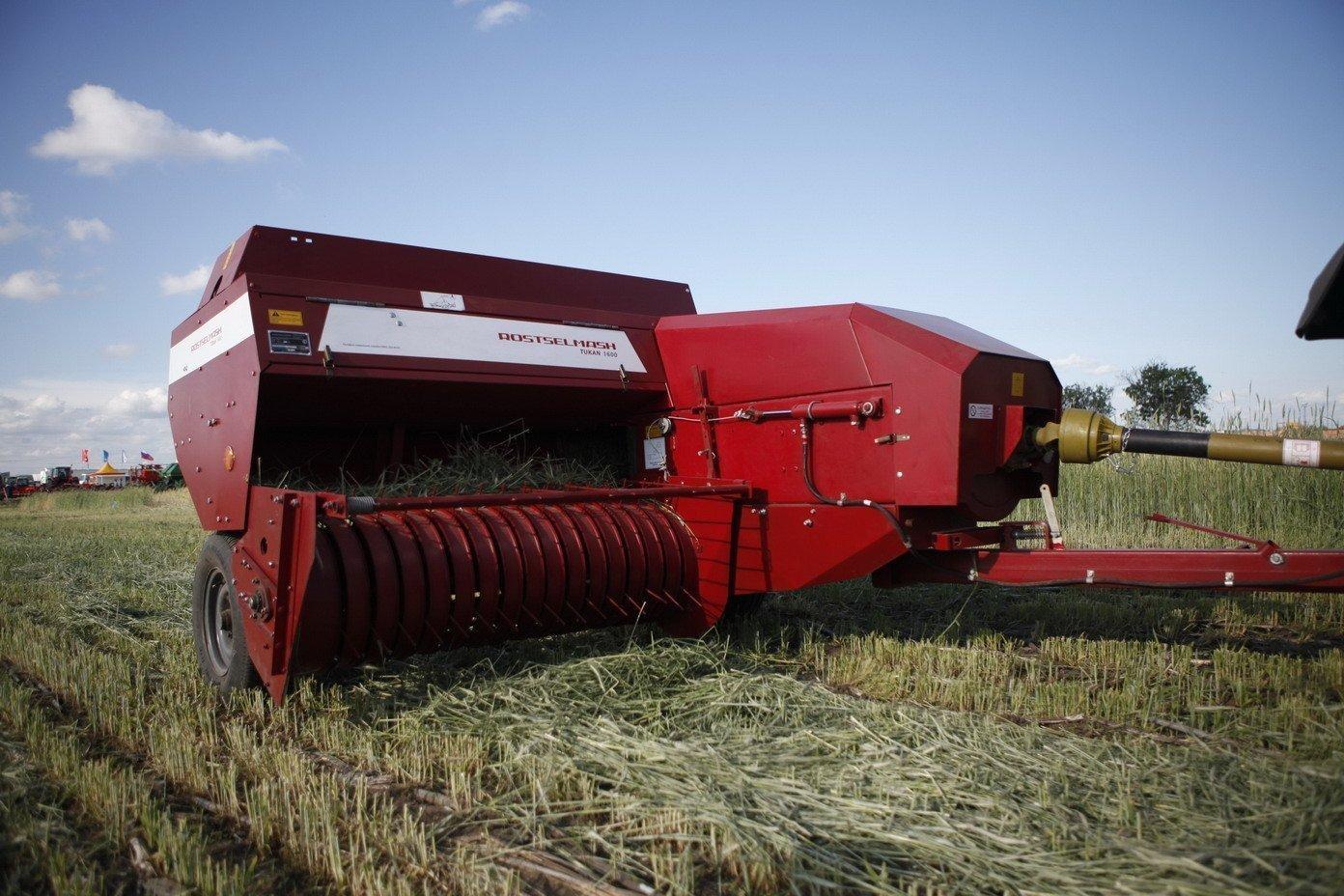

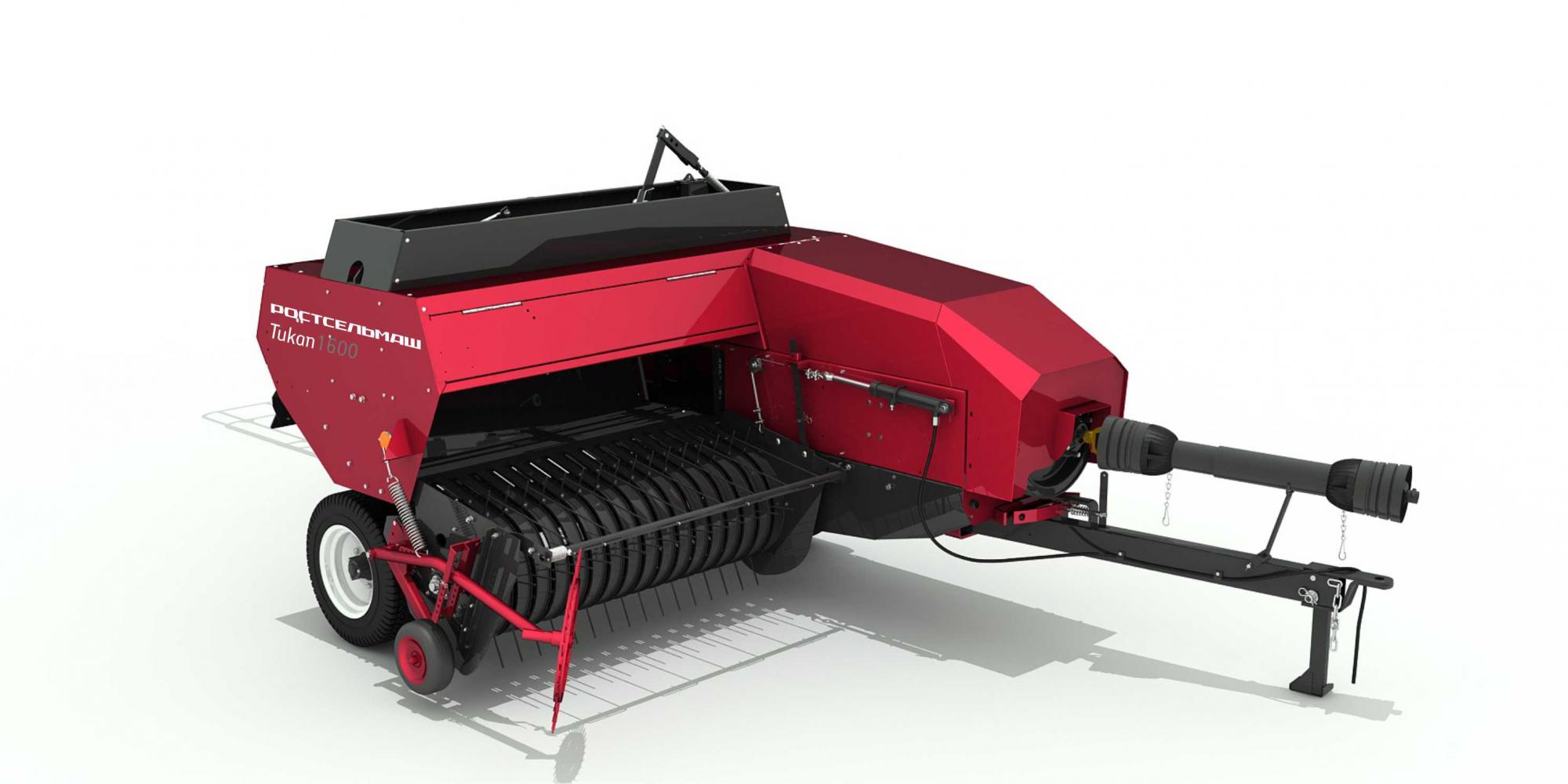

Everyone always wants to preserve collected grass mass in fresh and nutritious condition. Tukan bailing machine is designed for that purpose: it picks up hay rolls of native and sown grass and straw and presses such grass mass forming rectangular bales binding them with harvest twine.
All the stages of the machine operation are extremely prompt: picking up, pressing, bales unloading. Economy is the main keyword used for describing the bailing machine operation.The machine saves time, reduce labor costs, and saves energy resources. Tukan bailing machine will not fail even at the time of getting of foreign objects in the mechanism, because the reliable safety systems of the machine will be actuated in such cases. The machine can form bales even from light-weight cultural plants, because the machine is equipped with a special compaction control system.
The bailing machine can be equipped with an unloading device and an optional electronic bale counting device счетчика тюков, the use of which helps to save time and allows optimizing the machine operation processes.
Basic equipment of Tukan:
Everyone always wants to preserve collected grass mass in fresh and nutritious condition. Tukan bailing machine is designed for that purpose: it picks up hay rolls of native and sown grass and straw and presses such grass mass forming rectangular bales binding them with harvest twine.
All the stages of the machine operation are extremely prompt: picking up, pressing, bales unloading. Economy is the main keyword used for describing the bailing machine operation.The machine saves time, reduce labor costs, and saves energy resources. Tukan bailing machine will not fail even at the time of getting of foreign objects in the mechanism, because the reliable safety systems of the machine will be actuated in such cases. The machine can form bales even from light-weight cultural plants, because the machine is equipped with a special compaction control system.
The bailing machine can be equipped with an unloading device and an optional electronic bale counting device счетчика тюков, the use of which helps to save time and allows optimizing the machine operation processes.

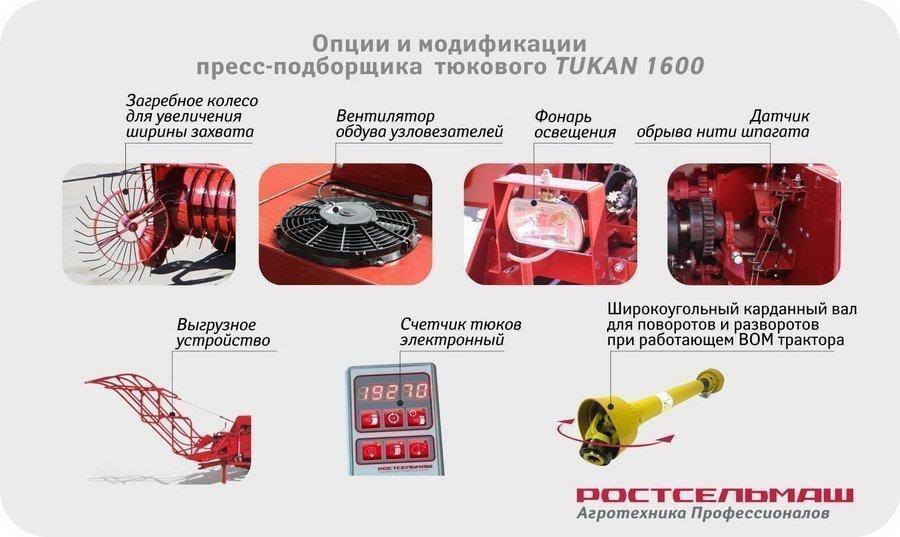

Basic equipment of Tukan:
- Mechanical bale counting device
- Set for increasing bale compaction
- Electronic bale counting device
- Set for increasing bale compaction
- Twain breaking sensor
- Binding device blower
- Lighting device for work at night
- Gage wheel of pick-up machine
- Stroke wheel for increasing operating width (up to 1.9 meters)

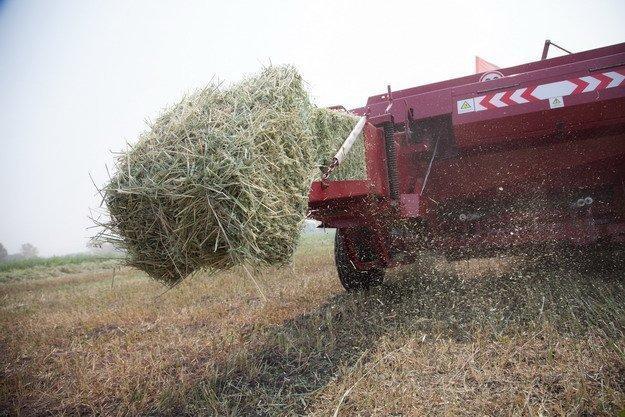

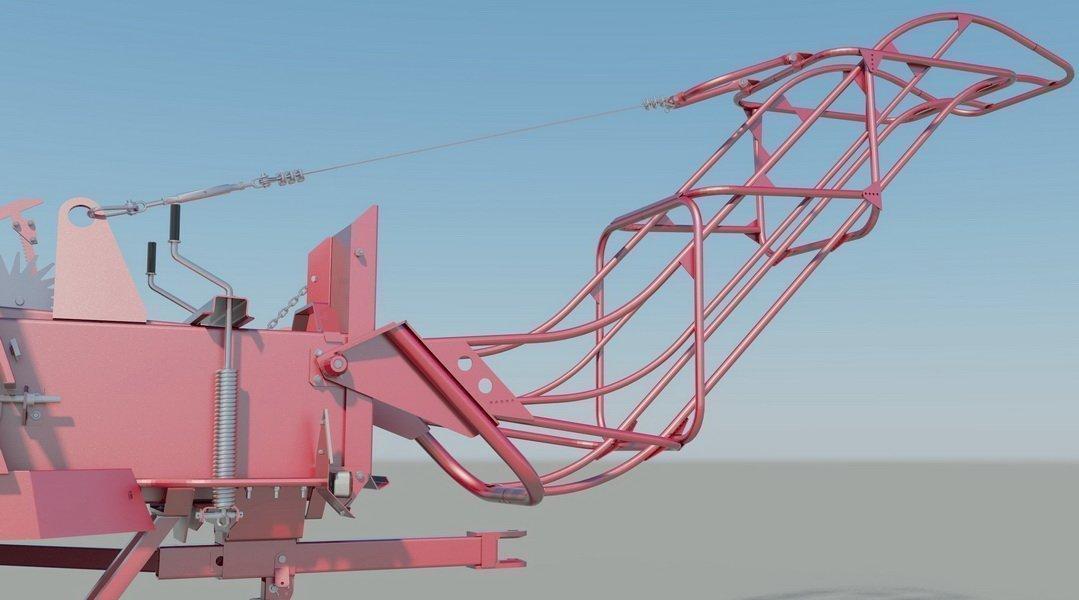

- Unloading device for bale loading to the trailer
- Wide-angle drive shaft
About the availability of equipment and basic configuration check at the dealership
- Description
- Technical parameters
- Video
- Ask a question
-

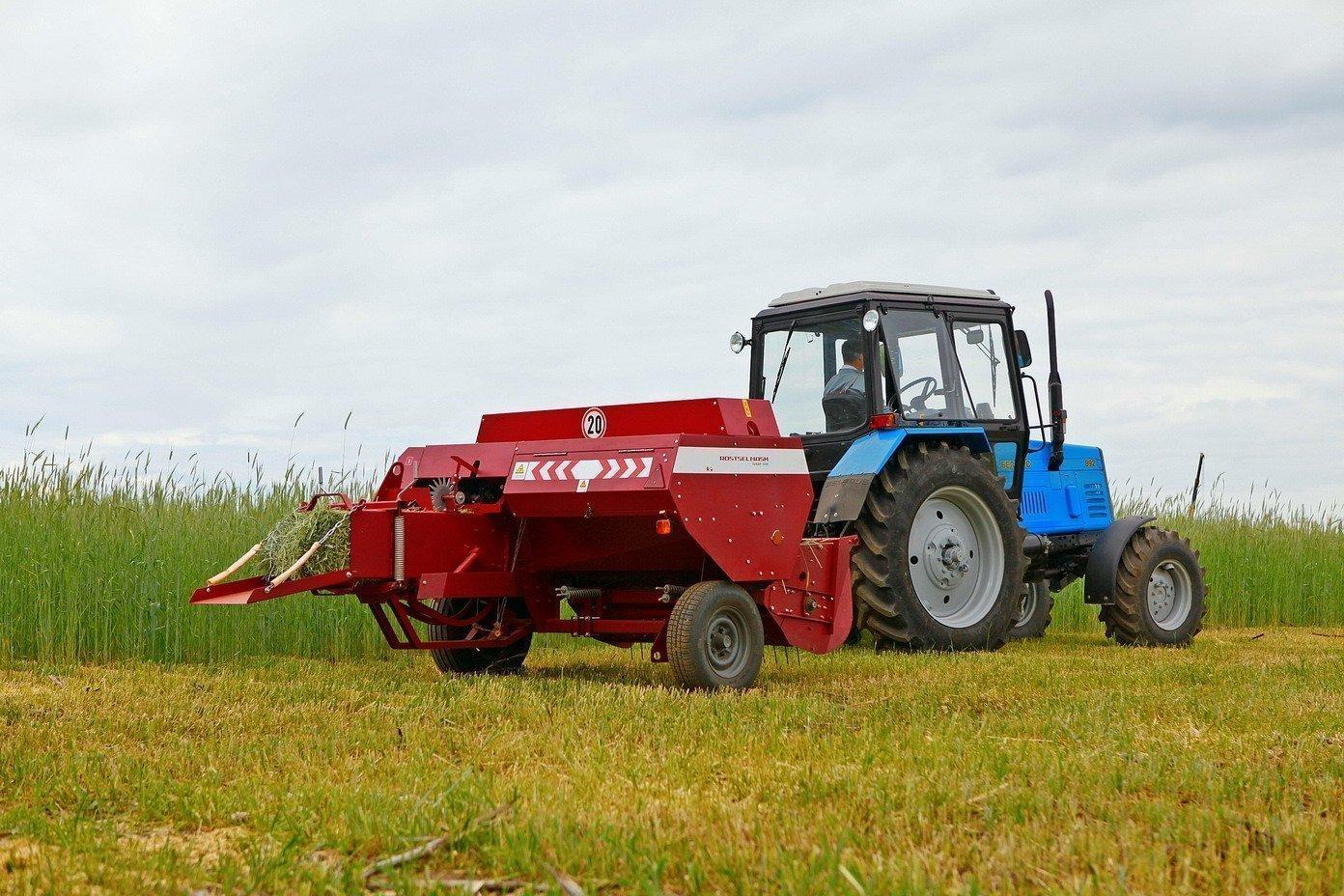

Tukan bailing machine can be aggregated with 1.4 h.p. drawbar category tractors
Quality advantages of Tukan 1600 bailing machine

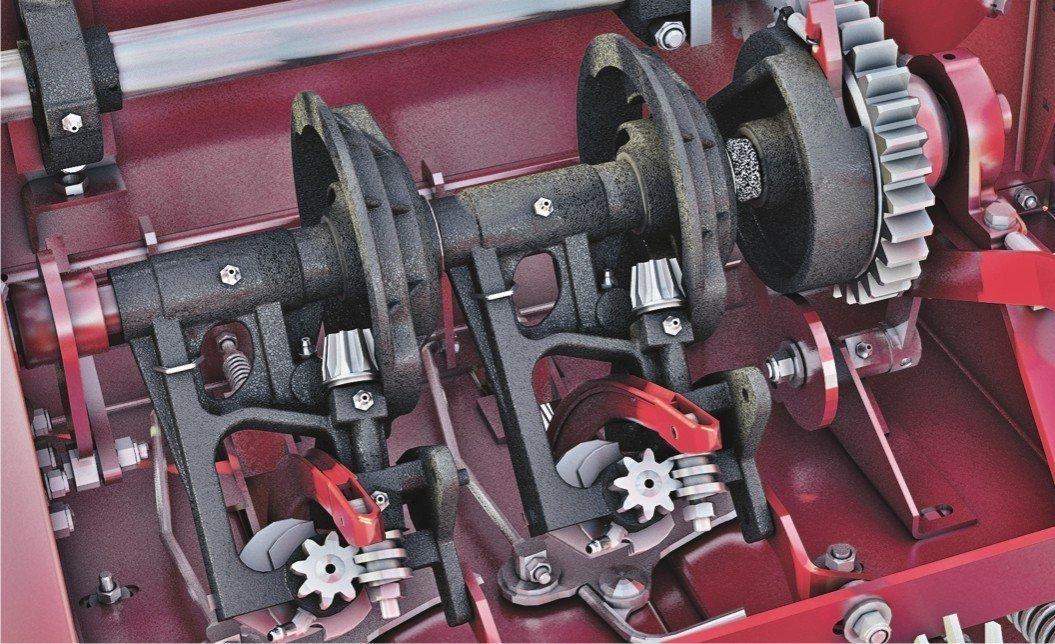

High performance of the binding device
The binding device produced by a German company has simple settings, it is reliable and provides high performance.
Protection of the binding device
For the purpose of protection of the binding device from faults under the conditions of overload and under abnormal conditions a safety shear bolt is installed.
Operation reliability and undeniable coupling properties
The coupling between the toothed bar and polyurethane bush is reached due to polyurethane high friction coefficient. The bar presses through sockets in polyurethane, and the material then is restored due to its elastic properties. Thus, at the time of the bar return to the initial position, when it falls from the upper point to the lower point, the teeth having semispherical shape do not damage the polyurethane bush decreasing its coupling properties.
High-quality bales at reduced transport expenses
The whole-cast pressing chamber allows attaining higher compaction increasing the performance and reducing transport expenses.
Prevention of the bailing machine destruction

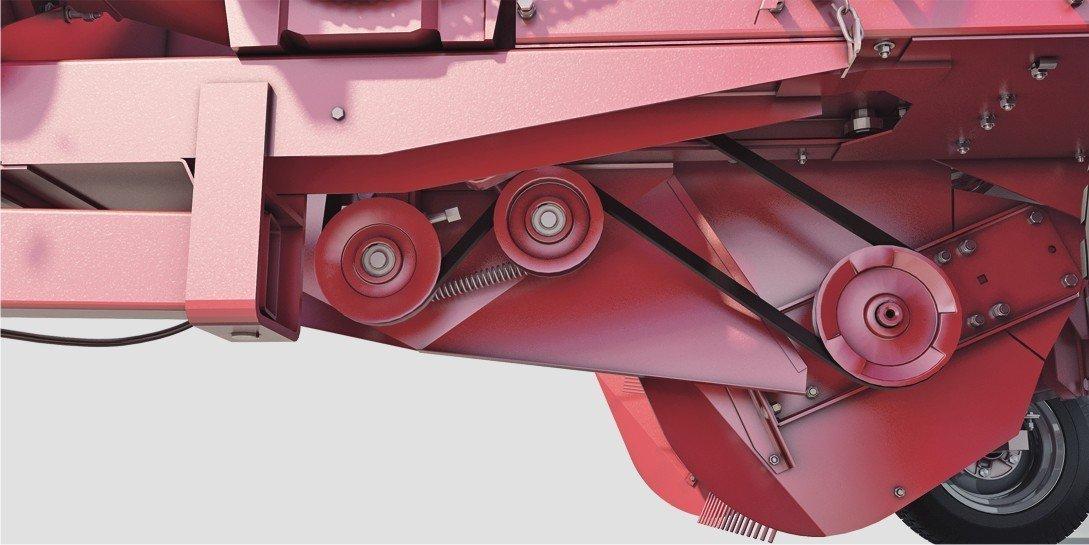

Torque moment is transferred to the bailing machine through belt transmission, which does not require lubrication, and in case of clogging of the bailing machine with the masses or a foreign object such mass it slips on the belt pulley preventing the drive and the machine from destruction.
Long life of PTO shaft and coupling device

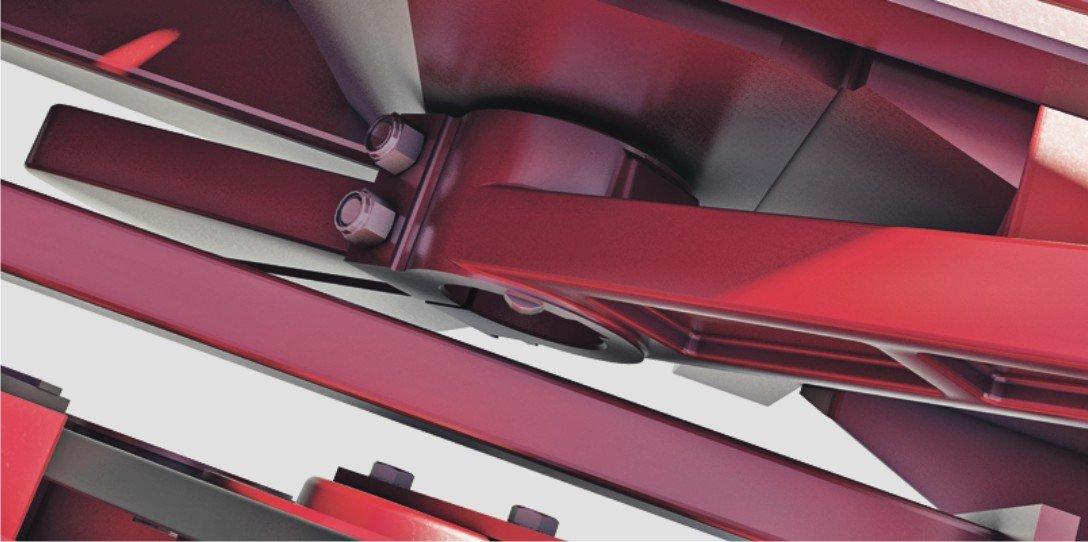

The availability of counterweight in the crank gear allows damping inertial forces originating at the time of the piston movement. As a result, the movement of tractor is smooth and shockless.
Operation convenience
The bailing machine is raised and lowered by an operator from the tractor cab by means of the lever of the hydraulic control valve, which provides operation convenience.

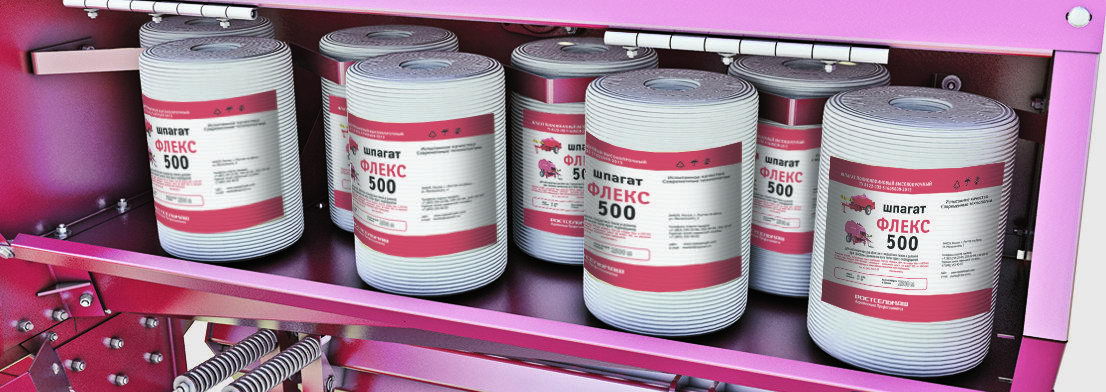

Long-term unstop operation
There is a possibility of installing up to 8 rolls of twine, which allows performing unstop operations during the time of a working shift and saving time.
Saving time and reducing labor costs
The bailing machine can be equipped with an unloading device and an optional bale counting device, the use of which helps to save time and allows optimizing the machine operation processes.
Long life of the drive

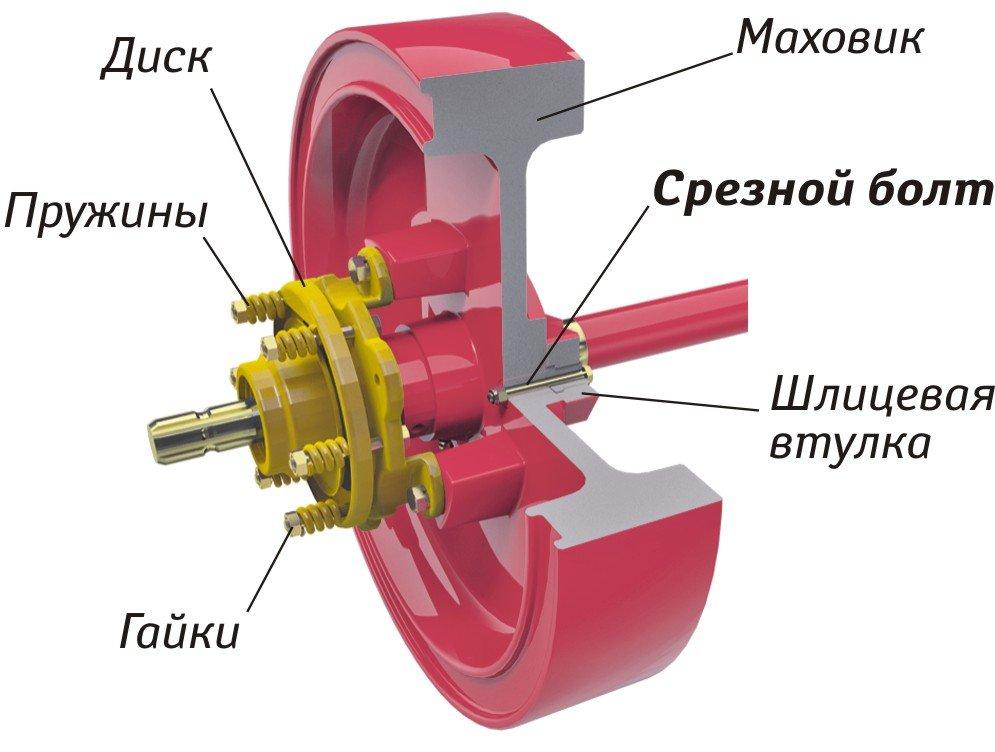

There is an overrunning safety clutch installed in the machine. It transfers torque moment from the drive shaft to the flywheel. In case of switching the tractor PTO shaft off the flywheel keeps rotating under its own inertia. At that time the safety clutch is actuated and the rotation of the flywheel does not transfer to the stopped PTO shaft. The friction safety clutch damps shocks at the time of switching the tractor PTO shaft on. It increases the life period of the drive. For the protection of the units of the machine from fail by reason of clogging with grass masses or getting of foreign objects in the machine work tools a safety shear bolt is installed, through which torque moment is transferred from the flywheel to the main reduction gear of the machine.
100 % protection against overloading and abnormal conditions

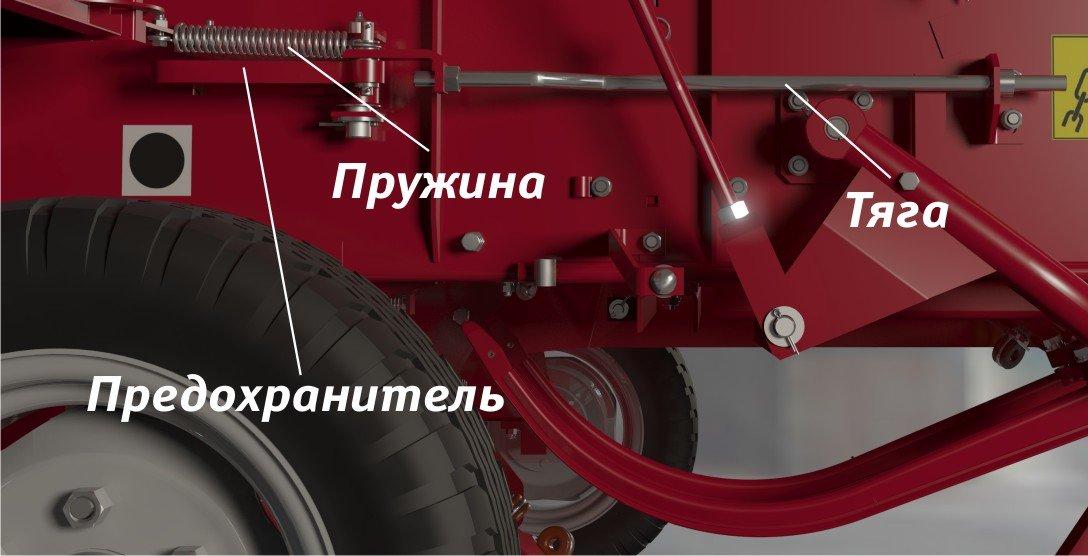

In case of arising of any unforeseen situation, as the result of which the needles during binding cannot return to their initial position, danger of the piston impact to the needles through compacted material arises. Such impact can be the reason of the needles deformation. Deformed needles, in their turn, can damage the binding device. For the purpose of preventing such situations a safety device is provided. If the needles do not return to their initial position, the piston moving in the chamber will not reach the needles, because it will be stopped by the safety device. In such case the safety bolt of the flywheel will be sheared.

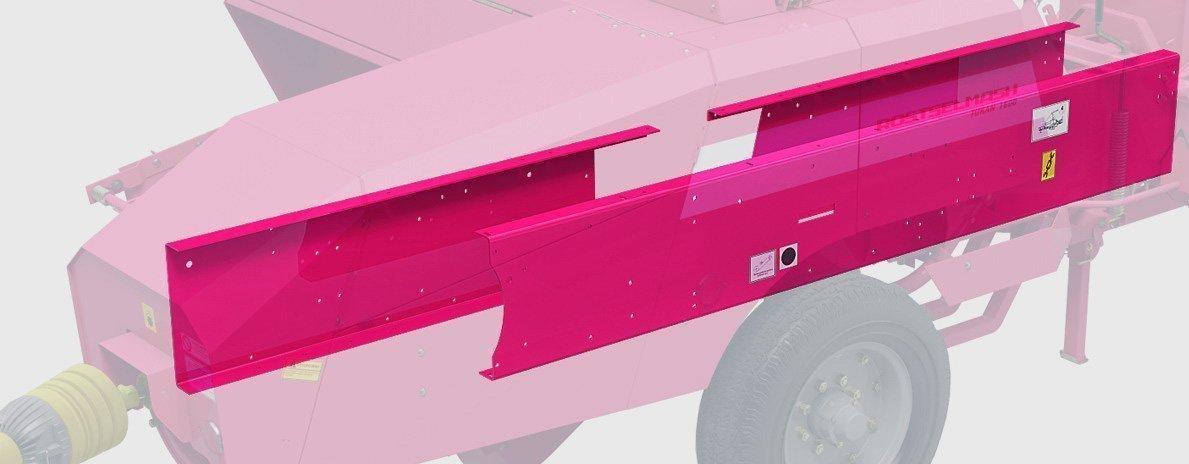

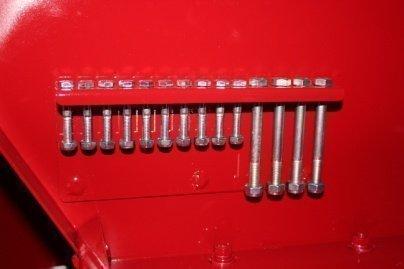

Spare safety elements are always available
For providing convenience of the bailing machine maintenance an additional bar with safety shear bolts is installed. Now an operator can easily reach all the bolts in any time.

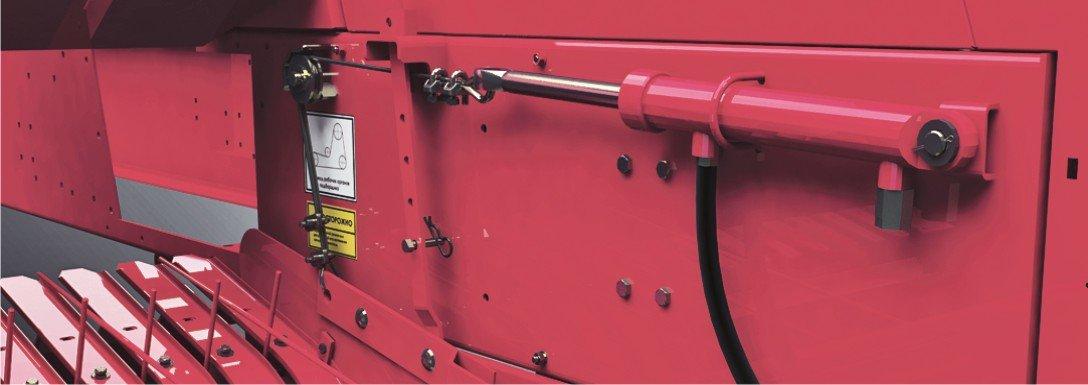

Increasing bale compaction
One of the methods of reducing costs on bales transportation and storage if increasing weight with preserving the specified volume, i.e. increasing bale compaction. To increase the compaction of bales of very dry or hard-compacted material such as straw мor dried hay a set for increasing bale compaction can be installed. The set is easily installed. It consists of several additional valves increasing the resistance to mass moving through the compaction channel.

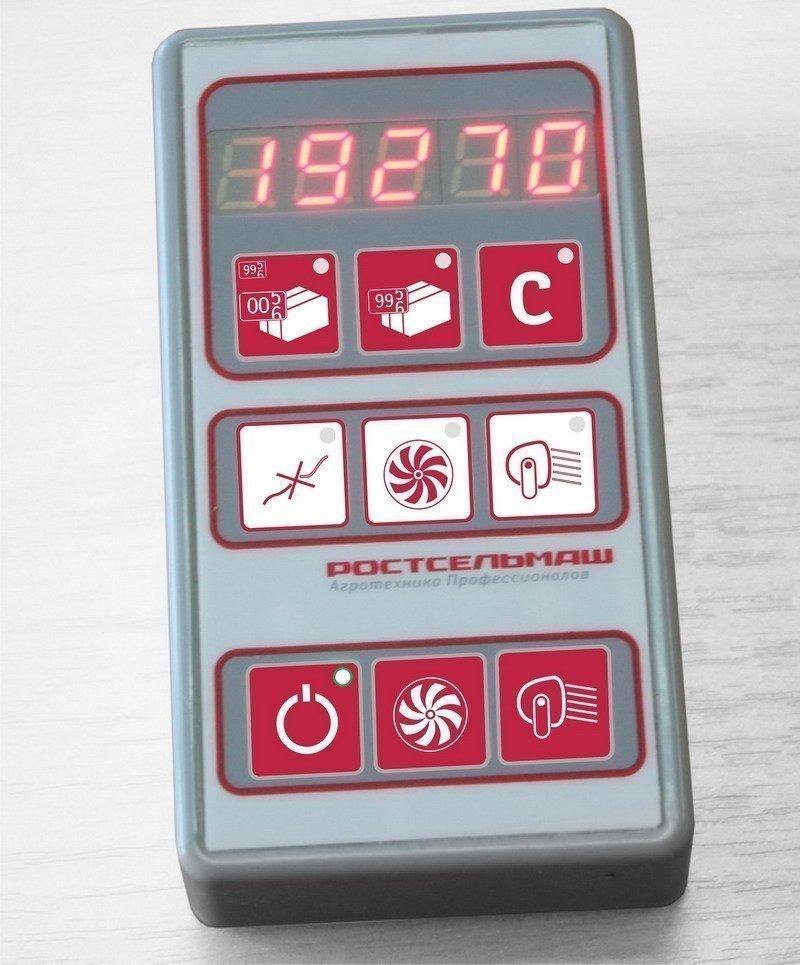

Absence of any moments distracting from the tractor operation
By means of a clearly visible multifunctional control console (included only in the Luxe machine equipment) the operator can easily control blowing of the binding device from its cab, as well as switch on the lighting device for operation at night. In case of twain break the console will generate sound-and-visual signal, which will allow saving time and protecting the operators’ nerves. Thus, the operator can not be distracted from the operation process for carrying out visual inspection and can concentrate on the tractor operation process. Besides, the control console is fitted with an electronic bale counting system. -
Technical information Type Semi-trailer Capacity per 1 hour of running time on hay at moisture level 20...22%, t/h, up to 10 Capacity per 1 hour of exploitation time, Ha/h, up to 10 Designed operating width, mm, up to
Roll selection width, mm, up to
operating width including the stroke wheel, mm, up to
1,550±50
1,780
1,850±50
Weight without spare elements and packing, not more, kg 1700 Operating speed, km/hour, not more 7 Transport speed, km/hour, not more 20 Rotation speed of the tractor PTO shaft, rpm 540 Power consumption, kW 20...40 Flow capacity in case of work with hay having the humidity of 20…22%, kg/s, up to 7 Compaction, in case of mass humidity of 10…24% - hay, kg/m3 120-230 Compaction chamber cross section, m 0.46x0.39 Bale length (nominal), m 0.5-1.3 Hay bale weight, kg 10-50
Discharging device Type Hitch-type Weight, kg, up to 55 Overall dimensions, mm, not more: - length 2 730 - width 675 - height 1 140 Section of discharging device, mm 0.45x0.64 Operating life (in case of annual load of 150 hours), years 7 -
-
