Order
Working widthWorking widthEfficiencyFour doubled rake elements on each (Kolibri 471)Rotary rakesWarranty

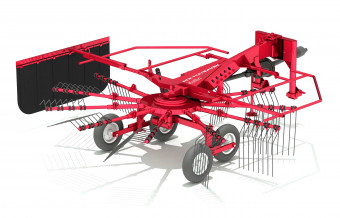

Swath-forming is the important and responsible stage of the whole forage preparation process. Rotary rakes Kolibri will be ideal for farms that prepare forage by themselves for domestic needs. Efficiency of Kolibri 4,7 m achieves up to 5.6 hectare/hour at grasp width of 4.7m.

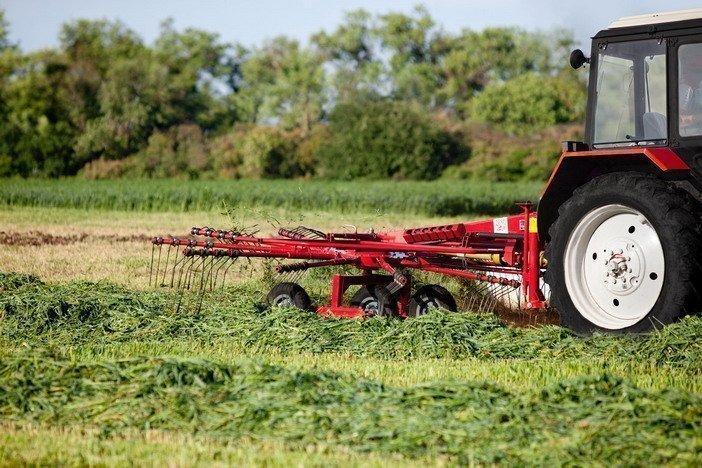

The rake performs thorough raking of grass from wide swaths into even rolls, light tossing of the mowed mass in swaths, covering, throwing and doubling hay swaths.
Possibility of choosing the swath width allows to adjust the machine for further operation of baler.
The rake overcomes obstacles like stones or soil unevenness by means of special tandem trolley. They also save your time due to the quick replacement of rake elements and reduced time for aggregation. The rakes are used in the fields with lined surface. They are aggregated with tractors of 1,4 drawbar category.
Kolibri will show the excellent working results with minimal losses.
Share
About the availability of equipment and basic configuration check at the dealership
  • Description
  • Technical parameters
  • Video
  • Ask a question
  • Quality advantages of rotary rakes Kolibri

    Long term service life of the machine Long term service life of the machine
    European closed gearbox guarantees high-quality and long operation.
    Ability to choose size of swath Ability to choose size of swath
    Adjustable reflector forms swath of required width. It provides a possibility to pick up a swath by machines with various width of pickup grip.
    Reducing the losses when raking Reducing the losses when raking
    Availability of tandem-trolley adjusted in height allows to copy the field relief in various planes, and pass the unevenness without losses and “digging” the rake elements into soil. Ideal raking without losses and swath contaminating with soil is achieved due to very close arrangement of copying trolley wheels to raking pins.
    Clean raking Clean raking

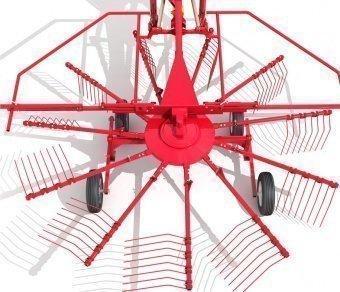

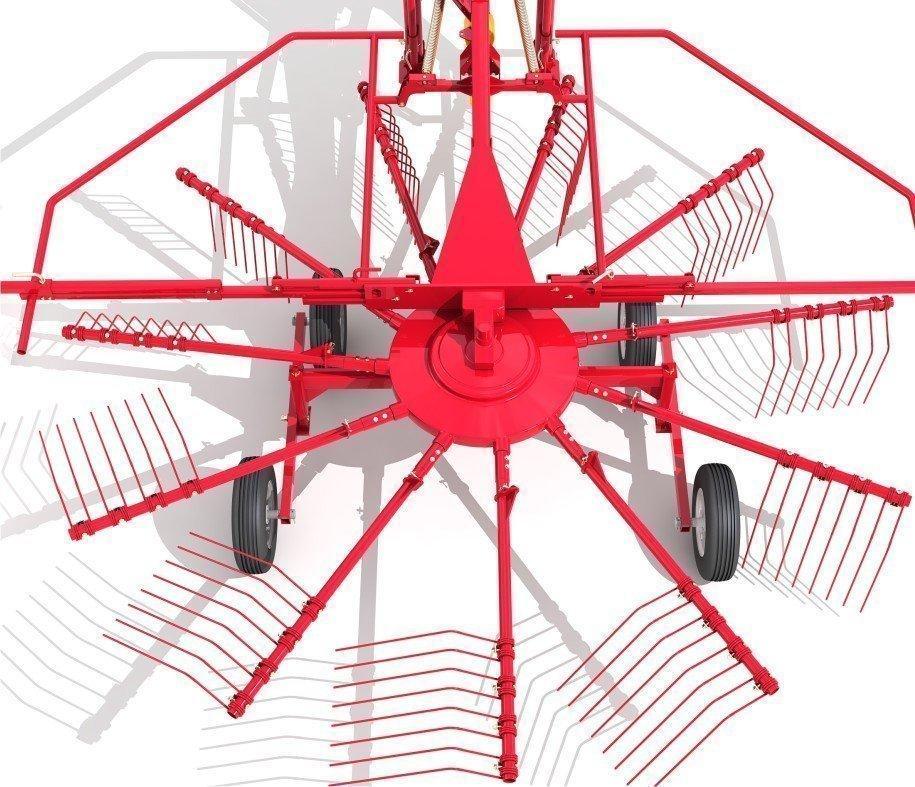

    Four doubled rake elements on each boom Kolibri 470 guarantee clean raking and minimal losses. The design allows to remove tine arms quickly and easily during replacement.
    Convenience and safety Convenience and safety
    Convenience and safety of transportation is achieved due to the installed cassette box designed for removable tines and foldable hoop guards fixing. Convenient and reliable three-point hitch allows to reduce time required for of rake aggregating with tractor. Maintenance of Kolibri 4,7 m is extremely easy, and does not require special tools and equipment. The machine has only three objects for lubrication. Rapidness of aggregating.
  • Technical specification
    Model Kolibri Kolibri Mini
    Type mounted
    Efficiency for 1 hour of main time, hectare/hour, up to 5,4 3,5
    Working width (design), m, up to 4,7 3,5
    Weight, kg, not more than 600 450
    Overall dimensions mm, not more than,
    – Length
    – Width
    – Height
    4500
    4000
    1200
    4500
    3500
    1200
    Operating speed, km/h, not more than 12
    Transportation speed, km/h, not more than 20
    PTO speed, rpm 540
    Rotor speed, rpm, up to 66 79,5
    Consumed power, kW/h.p., not more than 30
    Rotor diameter at the ends of tines, m, not more than 3,6 2,8
    Roll width, m, up to 1,4 1,1
