Forage-harvesting machines
Forage-harvesting machinesTrailer sprayersFertilizationGrain-processing machinesAdapters for harvesting machinesMunicipal machinesTillage equipment
-
Raking
MowingPressingAdapters to forage-harvesting combines
-Dual-rotary rakes Kolibri Duo

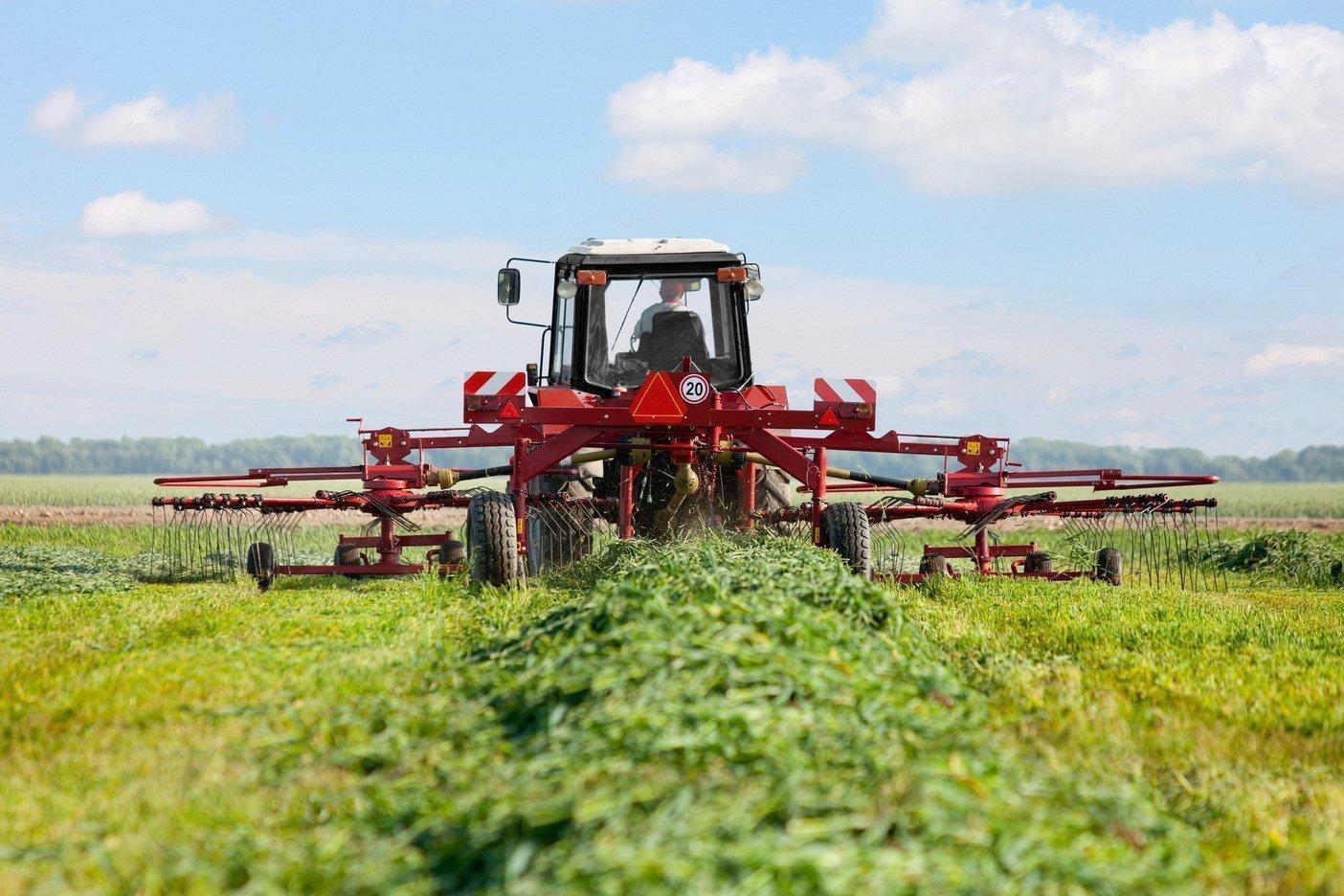

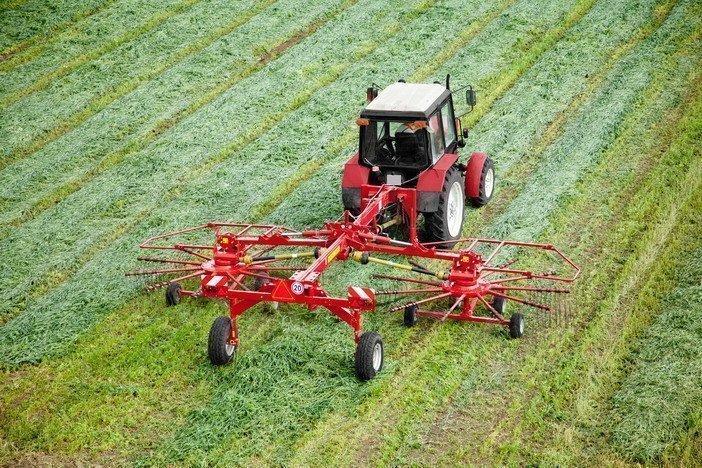

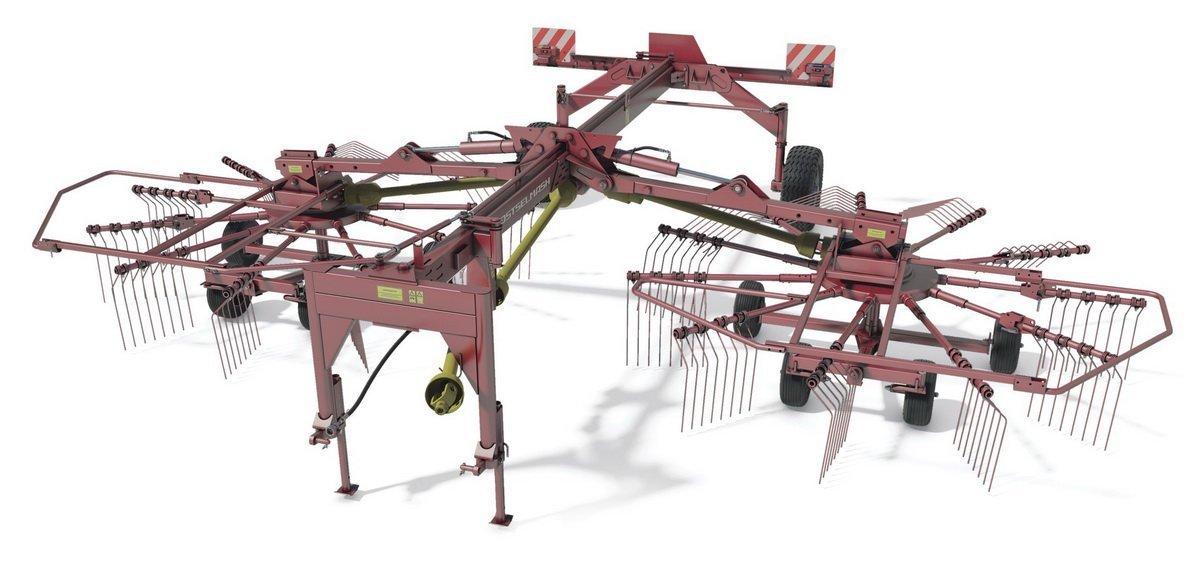

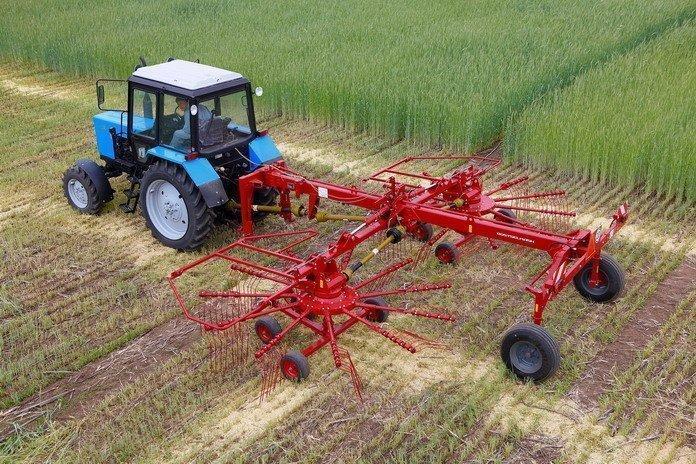

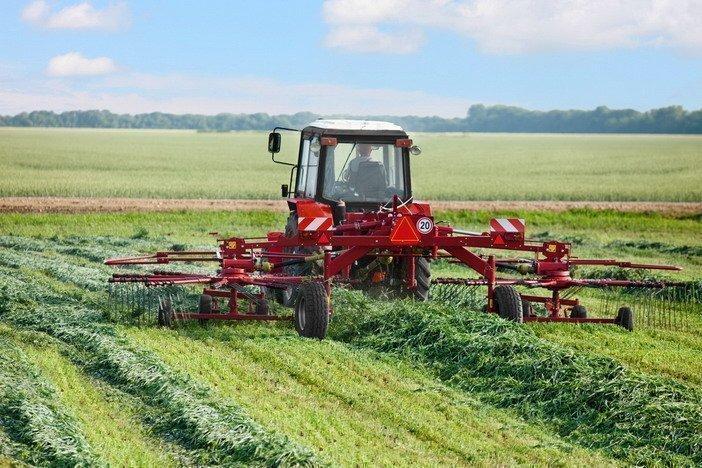

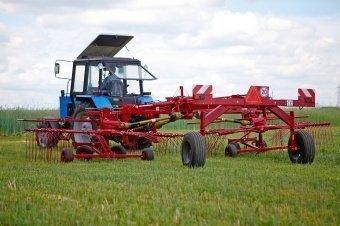

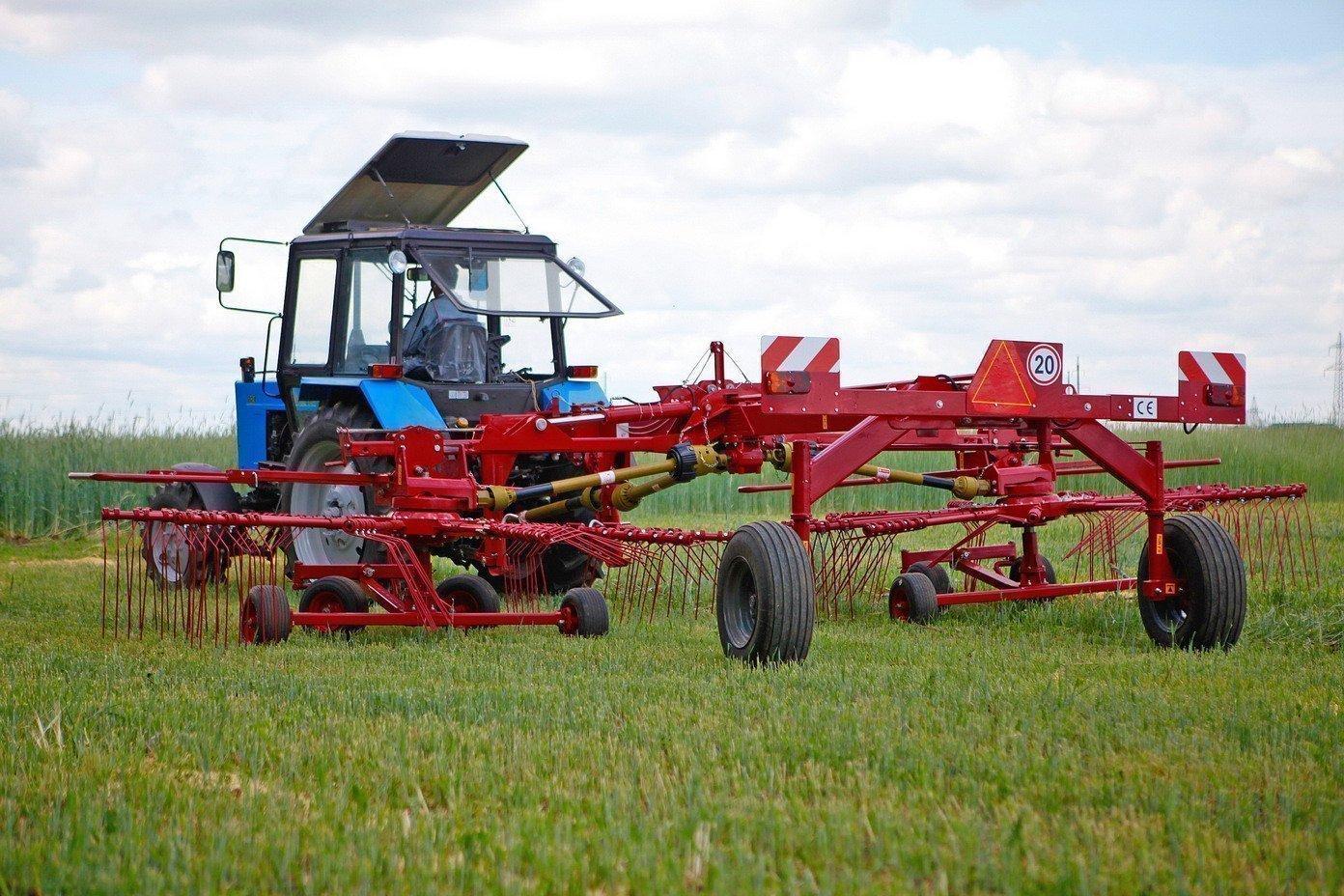

Dual-rotary rakes Kolibri Duo


  • Dual-rotary rakes Kolibri Duo
  • Dual-rotary rakes Kolibri Duo
  • Dual-rotary rakes Kolibri Duo
  • Dual-rotary rakes Kolibri Duo
  • Dual-rotary rakes Kolibri Duo
  • Dual-rotary rakes Kolibri Duo
  • Dual-rotary rakes Kolibri Duo
  • Dual-rotary rakes Kolibri Duo
  • Dual-rotary rakes Kolibri Duo
  • Dual-rotary rakes Kolibri Duo
  • Dual-rotary rakes Kolibri Duo
  • Dual-rotary rakes Kolibri Duo
  • Dual-rotary rakes Kolibri Duo
  • Dual-rotary rakes Kolibri Duo
  • Dual-rotary rakes Kolibri Duo
  • Dual-rotary rakes Kolibri Duo
  • Dual-rotary rakes Kolibri Duo
  • Dual-rotary rakes Kolibri Duo
  • Dual-rotary rakes Kolibri Duo
  • Dual-rotary rakes Kolibri Duo
  • Dual-rotary rakes Kolibri Duo
  • Dual-rotary rakes Kolibri Duo
  • Dual-rotary rakes Kolibri Duo
  • Dual-rotary rakes Kolibri Duo
Order
Working widthEfficiencyFour doubled rake elements on eachRotary rakesWarranty
Dual-rotary rakes Kolibri Duo are required, if you want to obtain exemplary forage and avoid losses, even minimum ones They are used for laying in perfectly even double swaths of mowed high-yield sow and natural grass with humidity not less than 70%.
Two rotors provide higher efficiency up to 8 hectare/hour, clean raking, fine formed swaths, as well as careful processing of forage mass. Dual-rotary rakes KOLIBRI DUO can help save time significantly - the machine construction allows to perform almost instant switching from operation position to the transport position and back. With Kolibri Duo You will not worry about your harvest.
Share
About the availability of equipment and basic configuration check at the dealership
  • Description
  • Technical parameters
  • Video
  • Ask a question
  • Quality advantages of Dual-rotary rakes Kolibri Duo 810

    The highest quality of forage with minimal losses The highest quality of forage with minimal losses
    European rotor gearbox guarantees long-term high-quality operation of rake. The rotor attachment design allows to copy optimally the field relief in lateral and longitudinal directions, and the operating height of raking pins is optimally maintained. This leads to reducing of losses and minimal contamination of forage.
    Ideal raking Ideal raking
    Clean raking of mass is provided by four doubled rake elements installed on each boom.
    Maneuverability Maneuverability
    The drive-up system of rear support wheels gives the machine the high maneuverability, which provides convenience of the rake operation, as well as the work duration reducing.
    Mechanism protection from damages Mechanism protection from damages
    Convenient and reliable 3-point hitch excludes bending and damaging of driveline during lifting/lowering of tractor hitch without stoppers installed. This leads to reducing of time for aggregating the rake with tractor, and provides high reliability of the device.
    Forage without contamination and losses Forage without contamination and losses
    High-quality copying and clean pick-up of material without contamination and losses are provided close positioning of copying trolley wheels with front vane wheels on each rotor to picking rake elements.
  • Technical specification
    Model Kolibri Duo
    Type Tractor-drawn
    Efficiency for 1 hour of main time, hectare/hour, up to 8
    Working width (design), m, up to 6,9...7,7
    Rotor diameter at the ends of tines, m, 3,2
    Operating speed, km/h, not more than 14
    Transportation speed, km/h, not more than 20
    Weight, kg, not more than 1800
    Consumed power, kW/h.p., not more than 40
    PTO speed, rpm 540
    Rotor speed, rpm, up to 66
    Overall dimensions, mm, not more than:
    - length
    - width
    - height


    7450
    2900
    3400

    Swath width, m, up to 1,4
