The Rostselmash MZS-90 series grain throwers have worthily withstood not only the test of time, but also the test of forced operation. Today the grain thrower is the sample of quality among other machines of the same category. It compares favorably with the most of them. Continuous design modifications have made the grain thrower almost an ideal machine. At the same time it remain popular and liked among farmers, for whom careful handling of harvested crop is one of the most important criteria when choosing grain throwers.
The grain thrower is designed for loading grain into vehicles, as well as for scooping grain. Due to the ability of the trimmer to turn around by 135° either side, the thrower application for performing different tasks and operations is significantly broaden and simplified. For example, loading grains into vehicles can be carried out without stop. Performing grain scooping or storage loading the grain thrower can move grain to one or another side from the direct axis or can throw grain behind itself. With the use of rotating grain thrower one can form higher and narrower heaps of low and wide heap, and the other way round, as well as form heaps of other bulk grains.

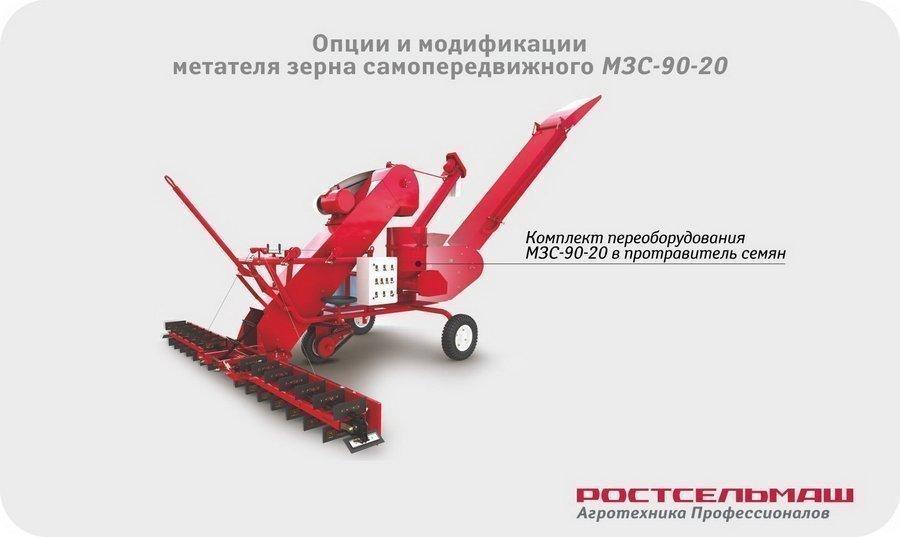

The machine can be reequipped to theThe machine can be reequipped to the seed dresserseed dresser.
Additional options:
The Rostselmash MZS-90 series grain throwers have worthily withstood not only the test of time, but also the test of forced operation. Today the grain thrower is the sample of quality among other machines of the same category. It compares favorably with the most of them. Continuous design modifications have made the grain thrower almost an ideal machine. At the same time it remain popular and liked among farmers, for whom careful handling of harvested crop is one of the most important criteria when choosing grain throwers.
The grain thrower is designed for loading grain into vehicles, as well as for scooping grain. Due to the ability of the trimmer to turn around by 135° either side, the thrower application for performing different tasks and operations is significantly broaden and simplified. For example, loading grains into vehicles can be carried out without stop. Performing grain scooping or storage loading the grain thrower can move grain to one or another side from the direct axis or can throw grain behind itself. With the use of rotating grain thrower one can form higher and narrower heaps of low and wide heap, and the other way round, as well as form heaps of other bulk grains.
The machine can be reequipped to theThe machine can be reequipped to the seed dresserseed dresser.
Additional options:
- Frequency converter for providing smooth running control
- Reverse running mechanism
- Auger feeder
- Chute extension for increasing loading height
- Remote-control device
About the availability of equipment and basic configuration check at the dealership
- Description
- Technical parameters
- Ask a question
-

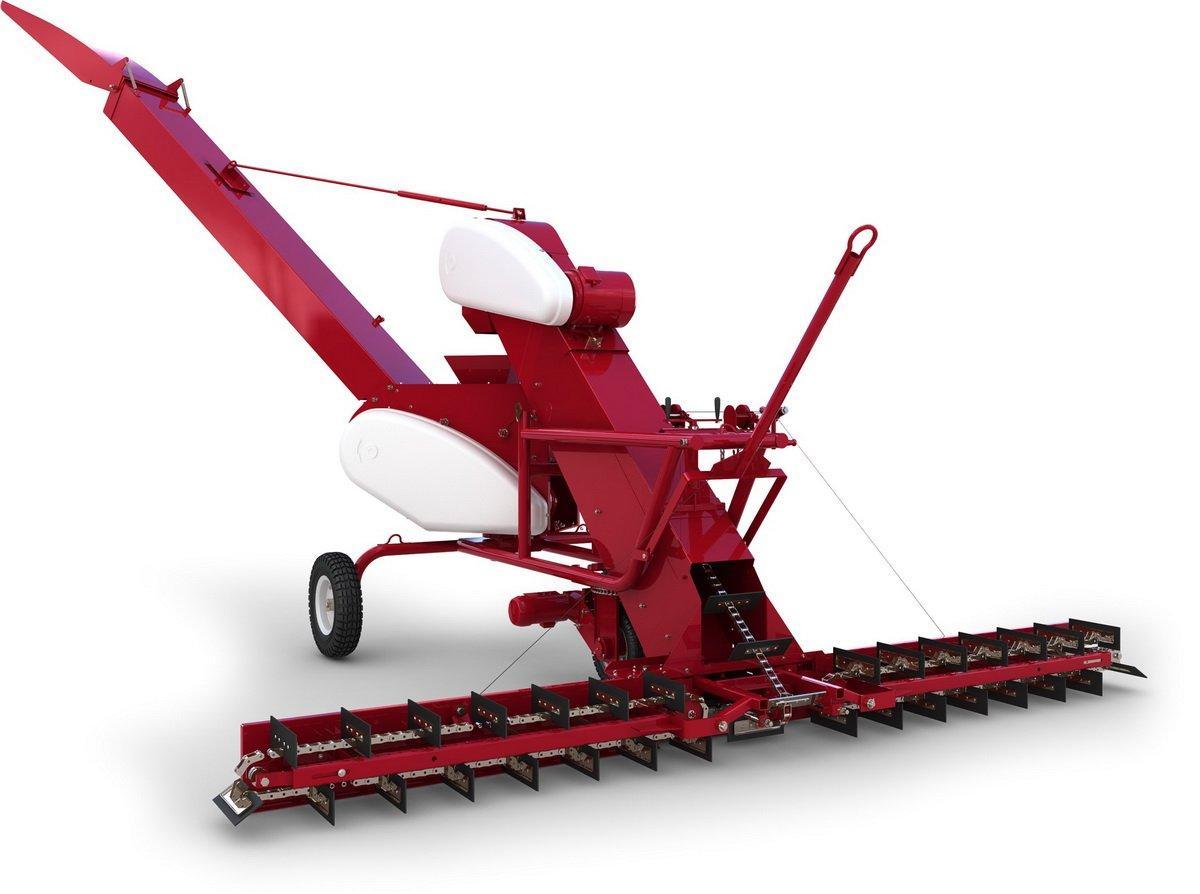

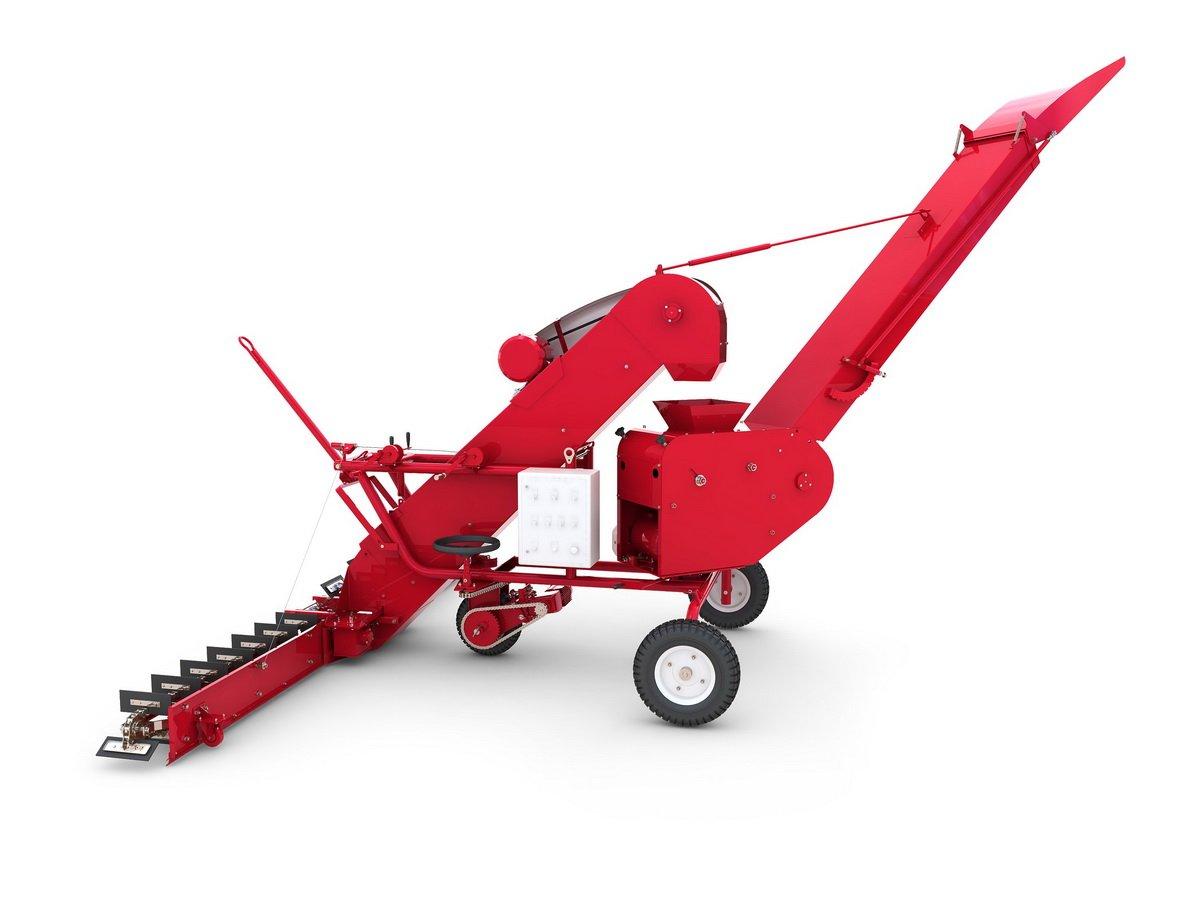

Quality advantages of the MZS-90-20 self-propelled grain thrower
Forward drive
Equipped with a foreign-made motor reducer guarantees long-term and trouble-free operation of the machine
Feeder
The MZS-90-20 grain thrower is equipped with a scraper feeder providing advantages over an auger feeder consisting in almost total absence of grain shattering in the process of bulking. The possibility of lowering feeders to a negative and positive angle in horizontal direction increases the convenience of work with the grain thrower on heaps and in the process of grain transporting.
Trimmer belt
A ribbed endless belt is installed in the trimmer, thereby the thrower performance at loading wheat in vehicles reaches 90 t/h.
Using grain thrower:
- Grain storages loading and discharge;
- Grain loading to vehicles;
- Mechanical scooping of seeds outdoors at the time of seed supply (delivery) from the combine;
- Forming heaps of grain delivered by vehicles from combines in different lots;
- Cleaning grain with light fraction separation.
-
Technical characteristics Model MZS 90-01М MZS 90-01MSH MZS 90-02М MZS 90-05МV MZS 90-06MVCH Arrangement (design) Standard arrangement (design) Auger feeder Equipped with a frequency converter Extended chute, increased operating width Extended chute, increased operating width Equipped with a frequency converter Height of loading to a vehicle, m 3 3,4 Operating width, m 4 5,2 Electrical box equipped with a control board Standard Standard Equipped with a frequency converter Standard Equipped with a frequency converter Performance, t/h, up to 90 Distance of throwing grain (wheat) from the place of grain intake by the feeder, at throwing, m, up to 20 Height of throwing grain (wheat), at throwing, m, up totd> 6 Weight, kg, not more 920±30 Travelling speed on tow, km/h, not more 5 Type Self-propelled Drive Electrical Consumed power, kW 10 Trimmer Belt width, mm 400±5 Driving drum rotation speed, rpm 835 -
