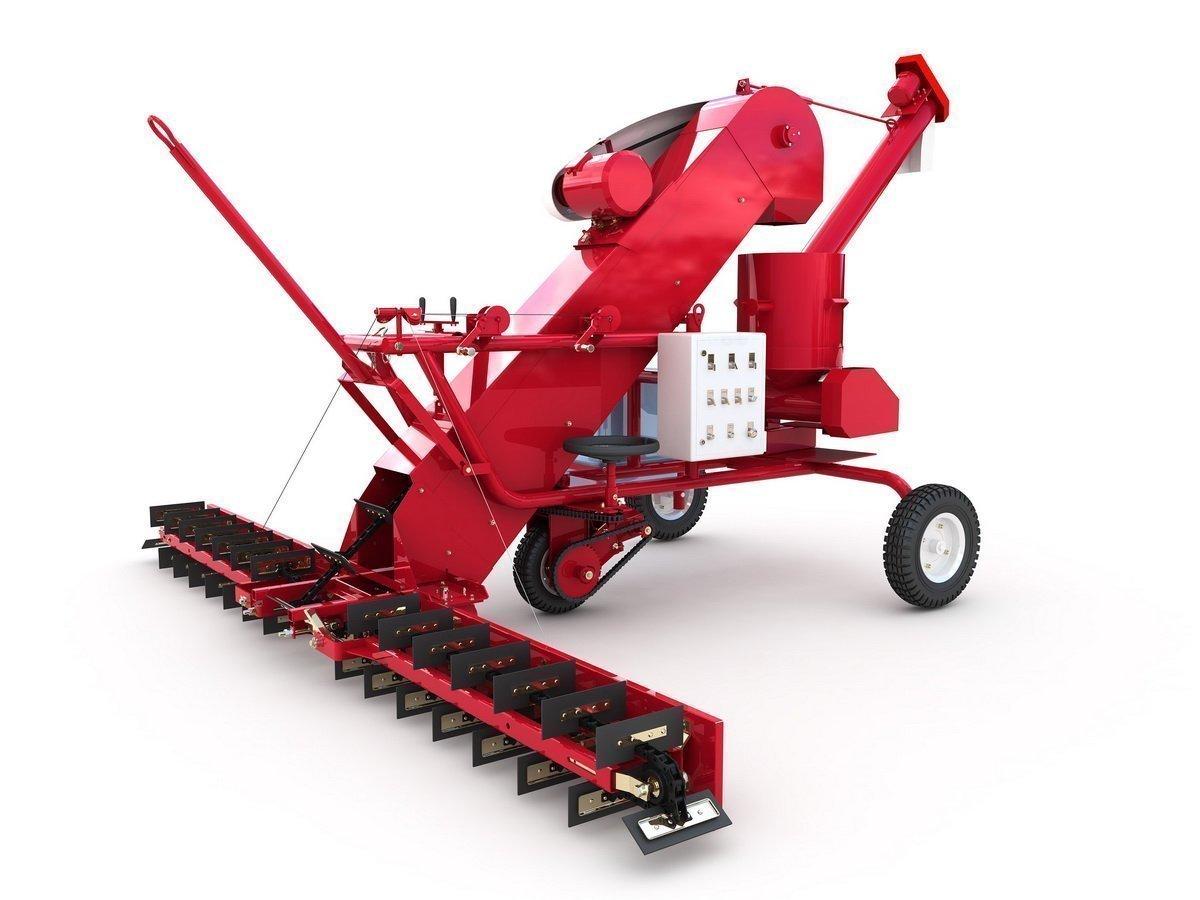

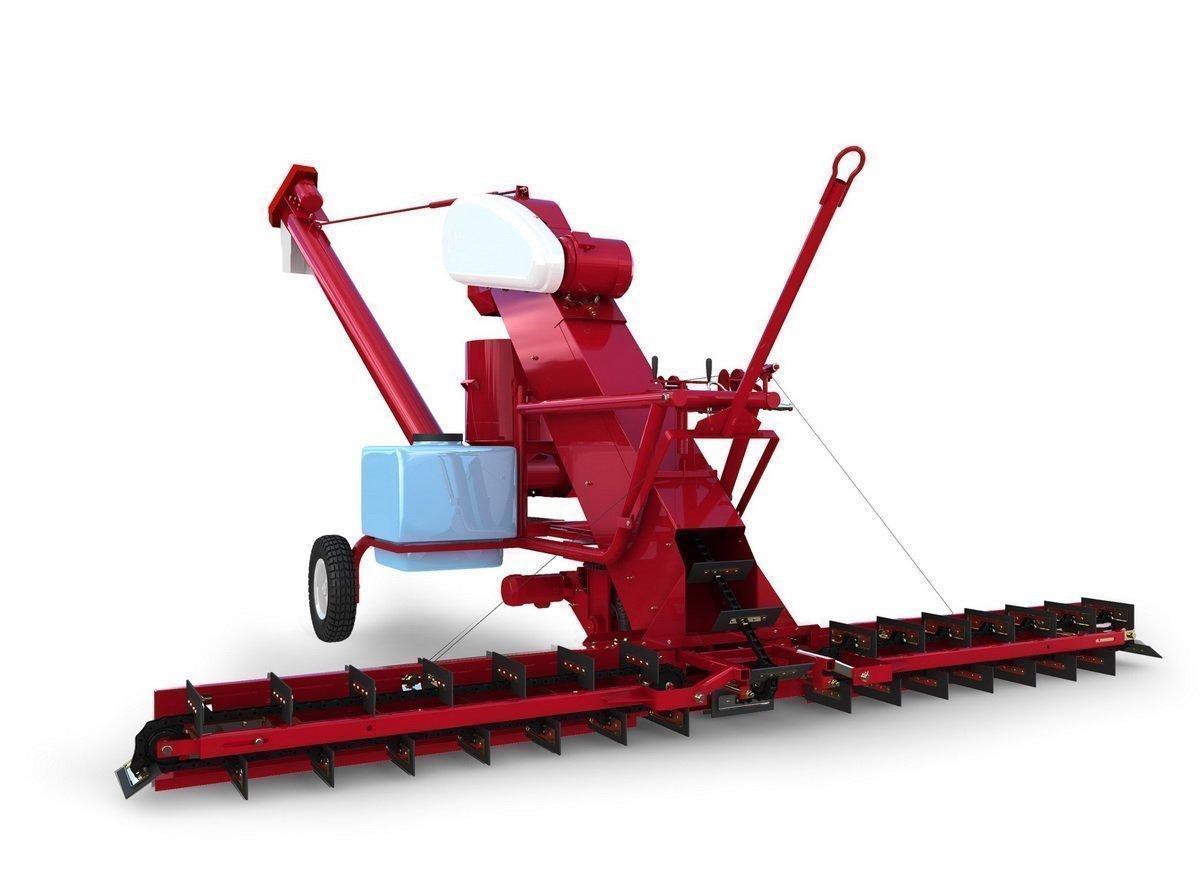

Self-propelled Seed Dresser is designed for moistened dressing seeds of cereals, legumes, and industrial cultures for the purpose of improving their sowing characteristics and protecting them against causal agents transmitted through seeds.
The seed dressing adaptor is designed for applying treating liquid to seeds of cereals, legumes, and industrial cultures, as well as for seeds delivery for their loading into vehicles standing in lots or into bags.
It is possible to reequip the machine to the MZS-90 self-propelled grain thrower.
Self-propelled Seed Dresser is designed for moistened dressing seeds of cereals, legumes, and industrial cultures for the purpose of improving their sowing characteristics and protecting them against causal agents transmitted through seeds.The seed dressing adaptor is designed for applying treating liquid to seeds of cereals, legumes, and industrial cultures, as well as for seeds delivery for their loading into vehicles standing in lots or into bags.
It is possible to reequip the machine to the MZS-90 self-propelled grain thrower.
About the availability of equipment and basic configuration check at the dealership
- Description
- Technical parameters
- Ask a question
-
Quality advantages of the PSM-20 seed dresser

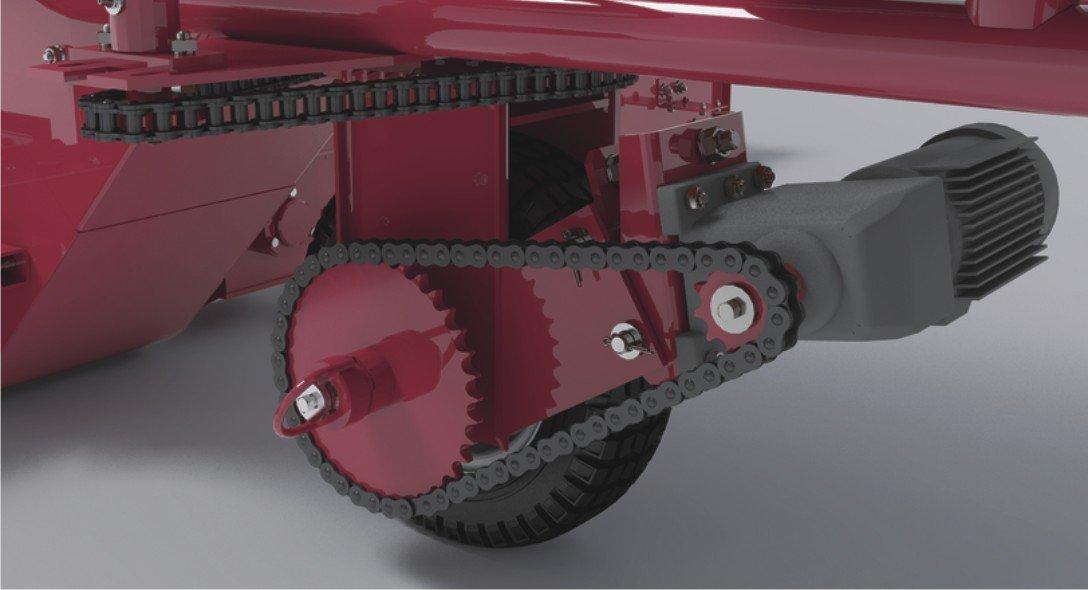

Forward drive
Equipped with a foreign-made motor reducer guarantees long-term and trouble-free operation of the machine
Feeder

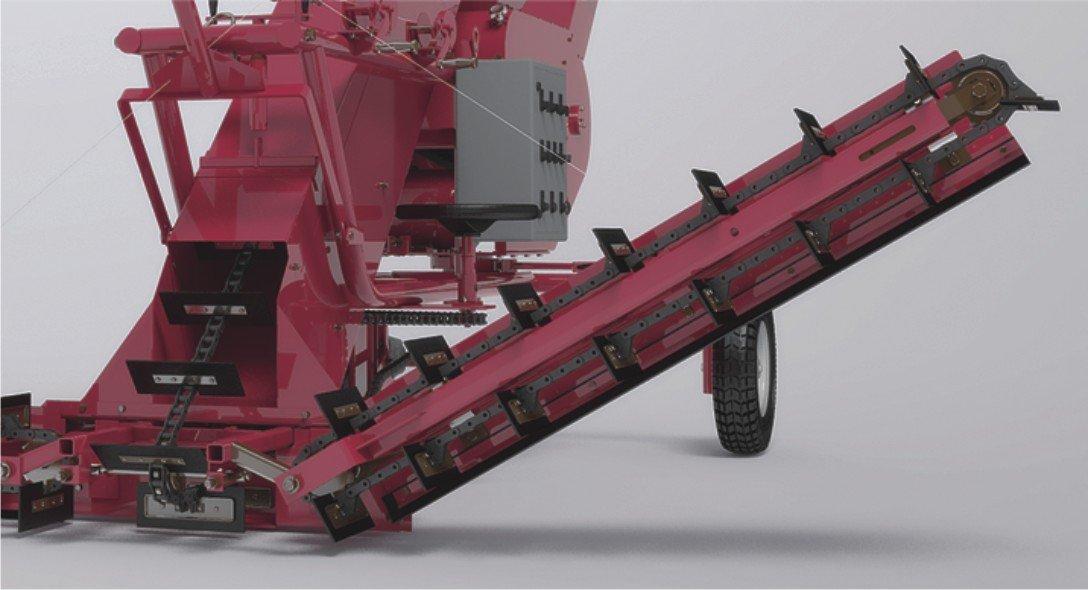

The PSM-20 seed dresser is equipped with a scraper feeder providing advantages over an auger feeder consisting in almost total absence of grain shattering in the process of bulking. The possibility of lowering feeders to a negative and positive angle in horizontal direction increases the convenience of work with the grain thrower on heaps and in the process of grain transporting.
Wide range of operation

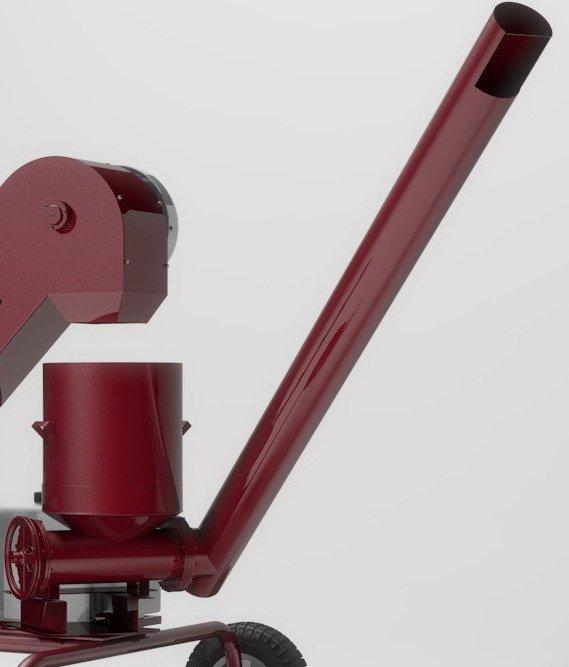

Due to the dressing (treating) attachment ability to turn around by 120 degrees either side the use of the seed dresser in the process of operation is significantly simplified and the range of its use is broadened. -
Technical characteristics Type Self-propelled Performance per 1 hour of the basic operating time (at dressing wheat on hard surfaced ground), t, up to 20 Operating width, m 4 Loading height, m 2 Tank capacity, not more, L 120 Travelling speed on tow, km/h, not more 5 Weight of the seed dresser without spare parts and package, not more, kg 850±30 Overall dimensions, operating position, not more, mm:
— Length
— Width
— Height
5100
4120
2012Pump «Kama» N=0,4кВт Drive Electrical Consumed power, kW 6,6 The main indicators of the procedure quality:
- High humidity, %
- Seeds mechanical damage, %
- Wheat dressing completeness
does not exceed 1
does not exceed 0,3
100-5Conveyer fitted with feeders:
- Number of feeder scrapers, pcs.
- Number of conveyer scrapers, pcs.
- Scraper size, mm
- Speed of the feeders scraper chain, m/s, not more
- Speed of the conveyer scraper chain, m/s, not more
- Pitch of scrapers installation in the chain, mm
30
27
100x260
0,05
1,7
228 -
