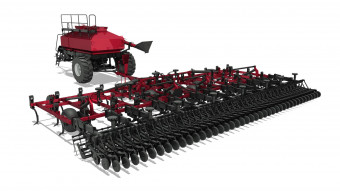

SH and SC series drills are used in all cultivation areas, except hill farming areas, and designed for the sowing of cereals, legumes, and subsurface application of artificial fertilizers.

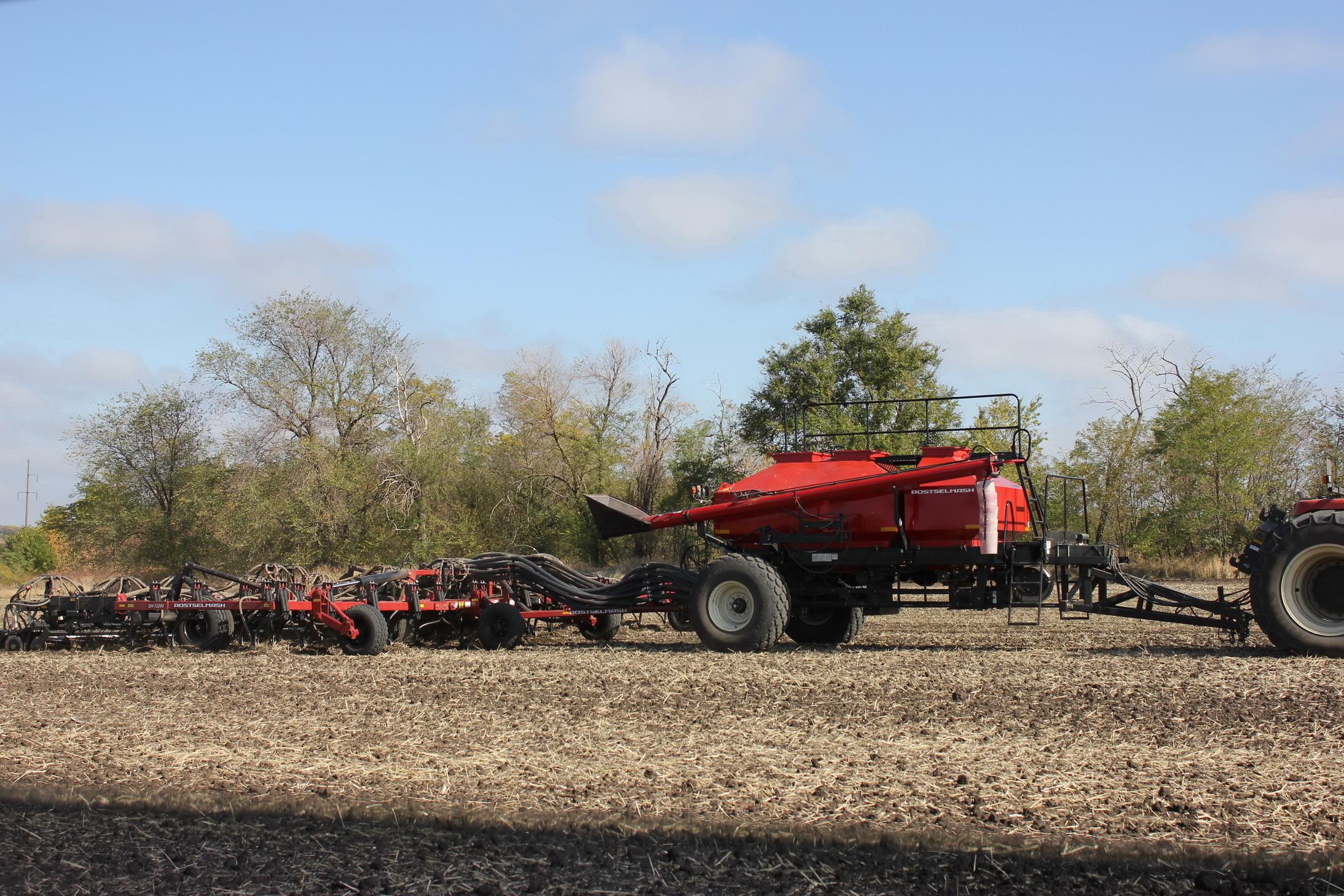

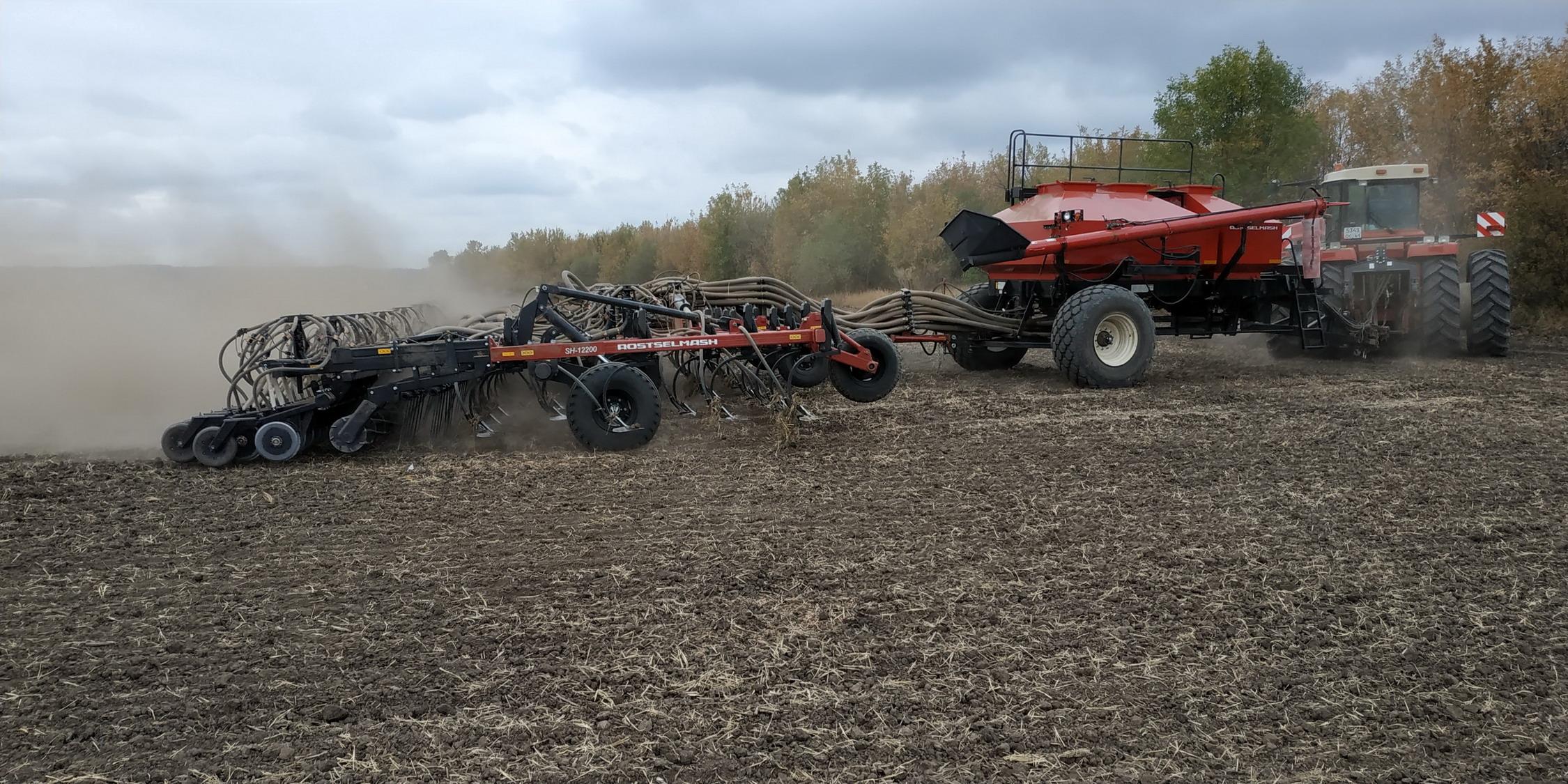

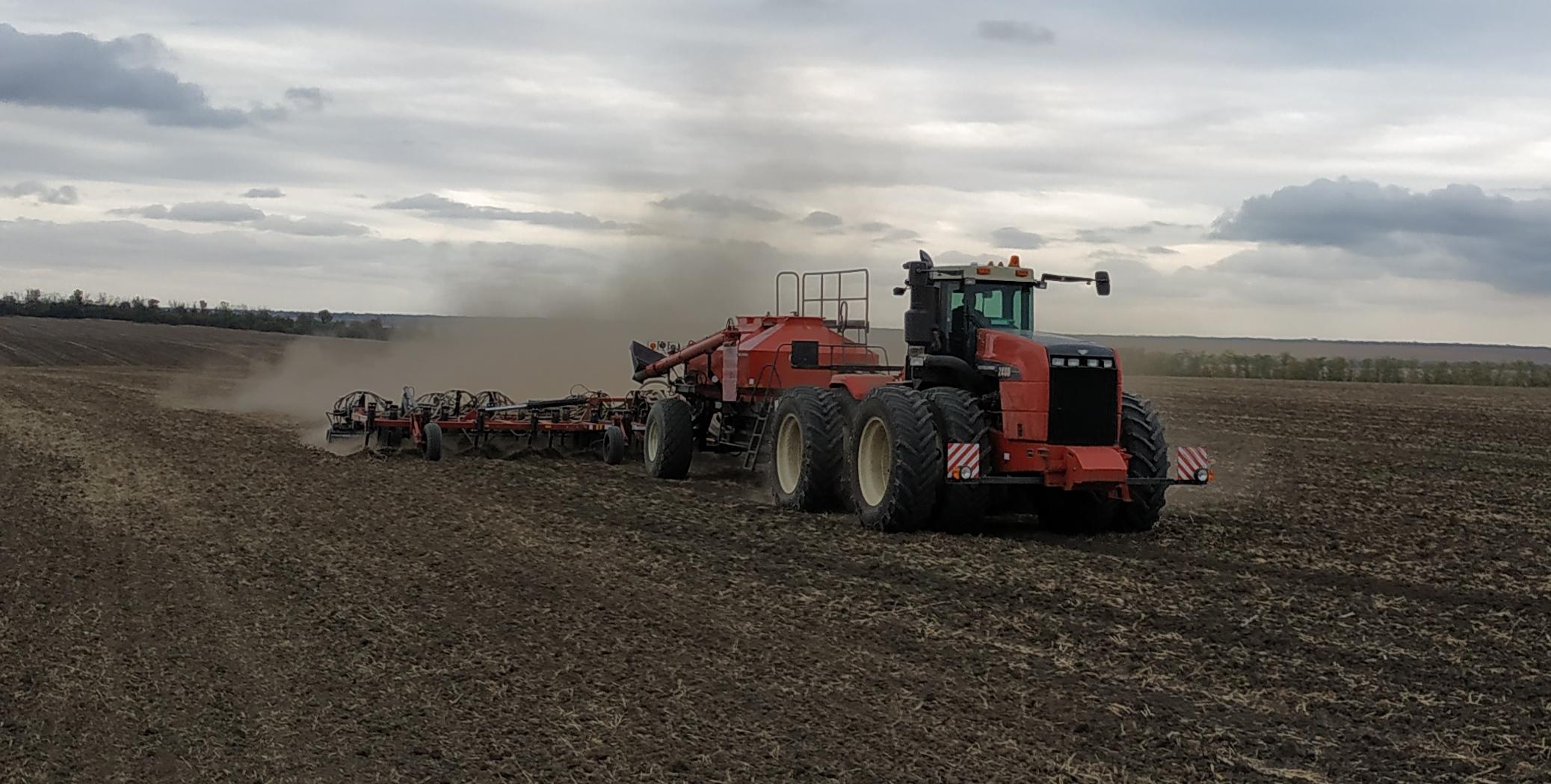

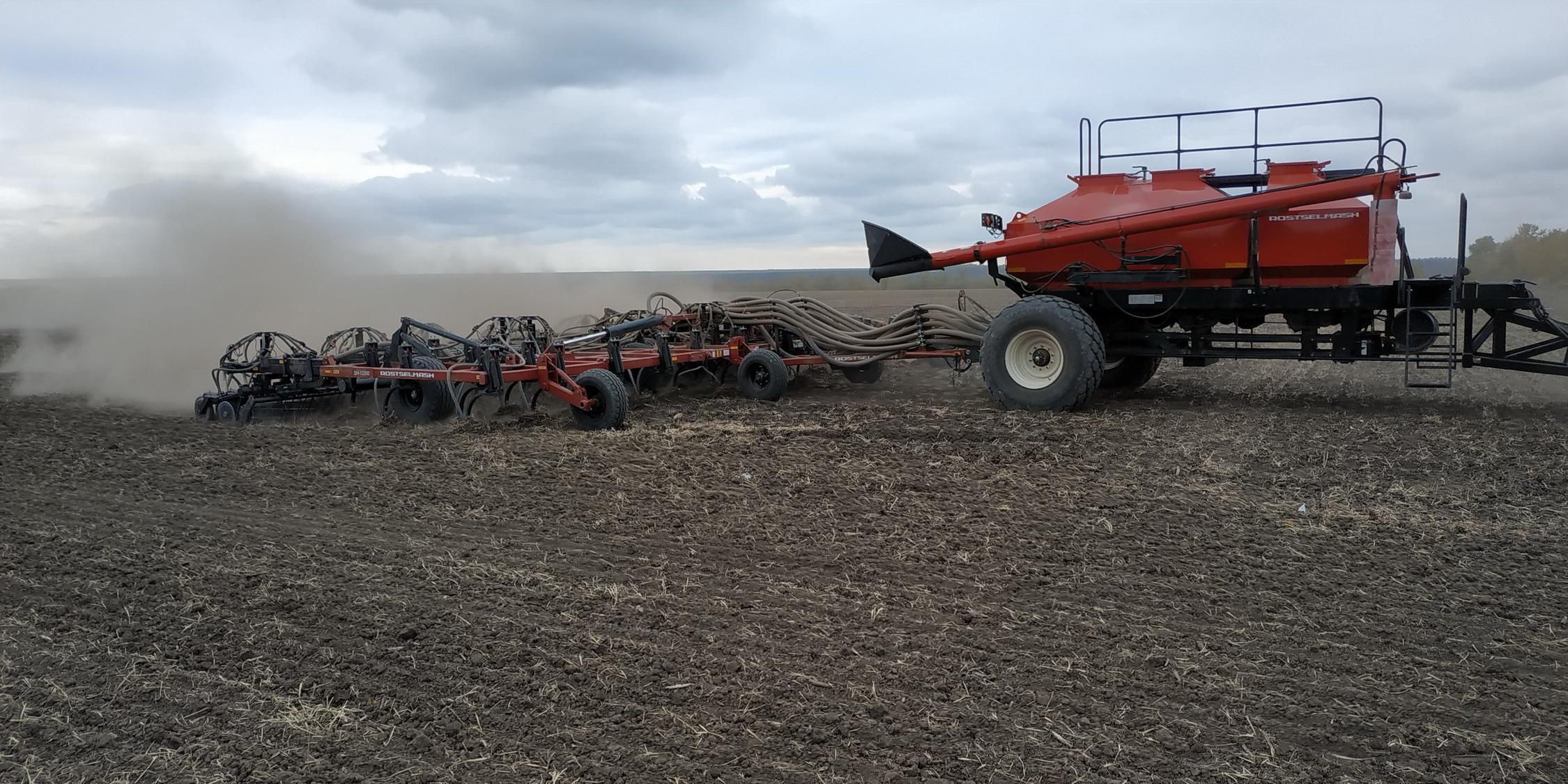

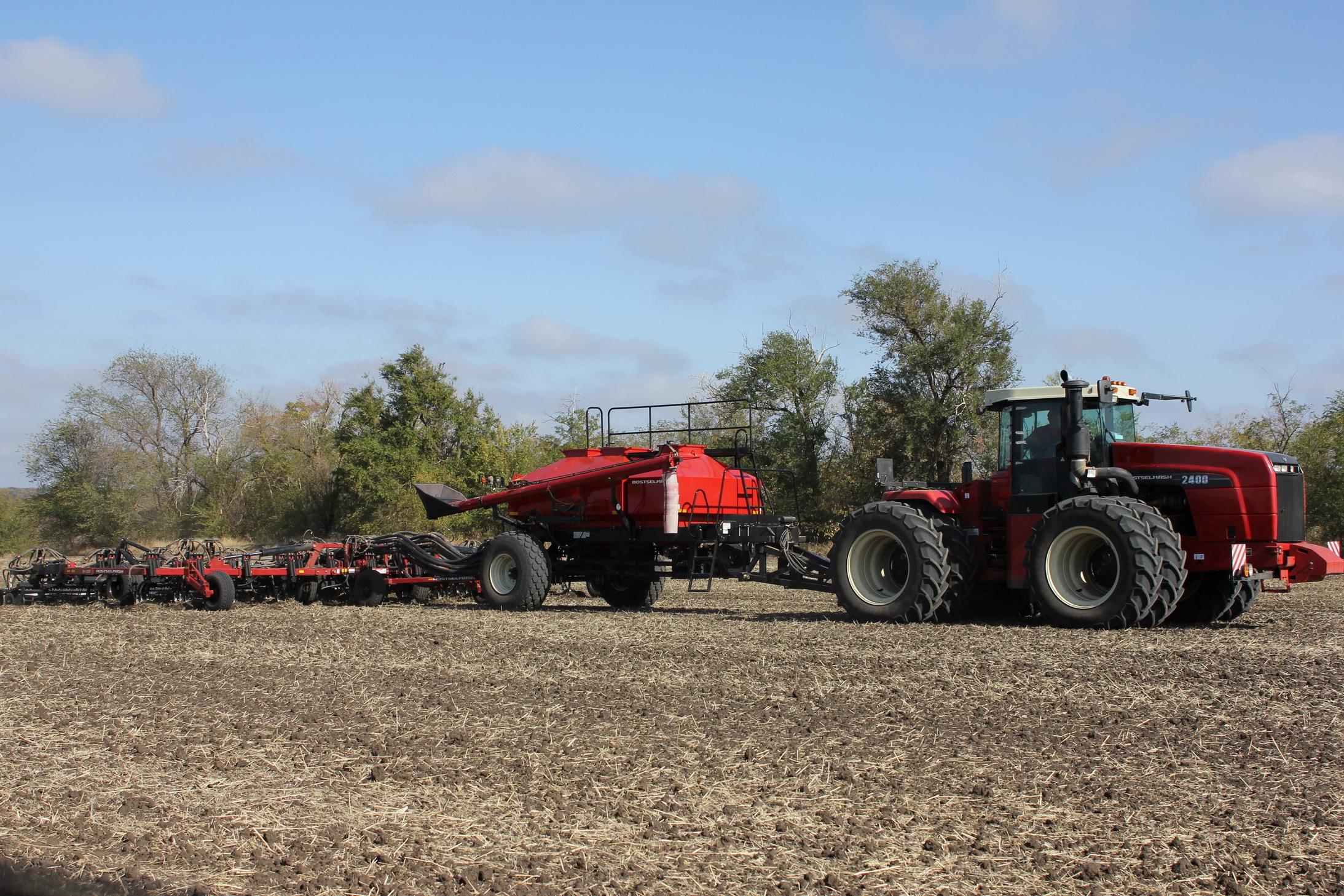

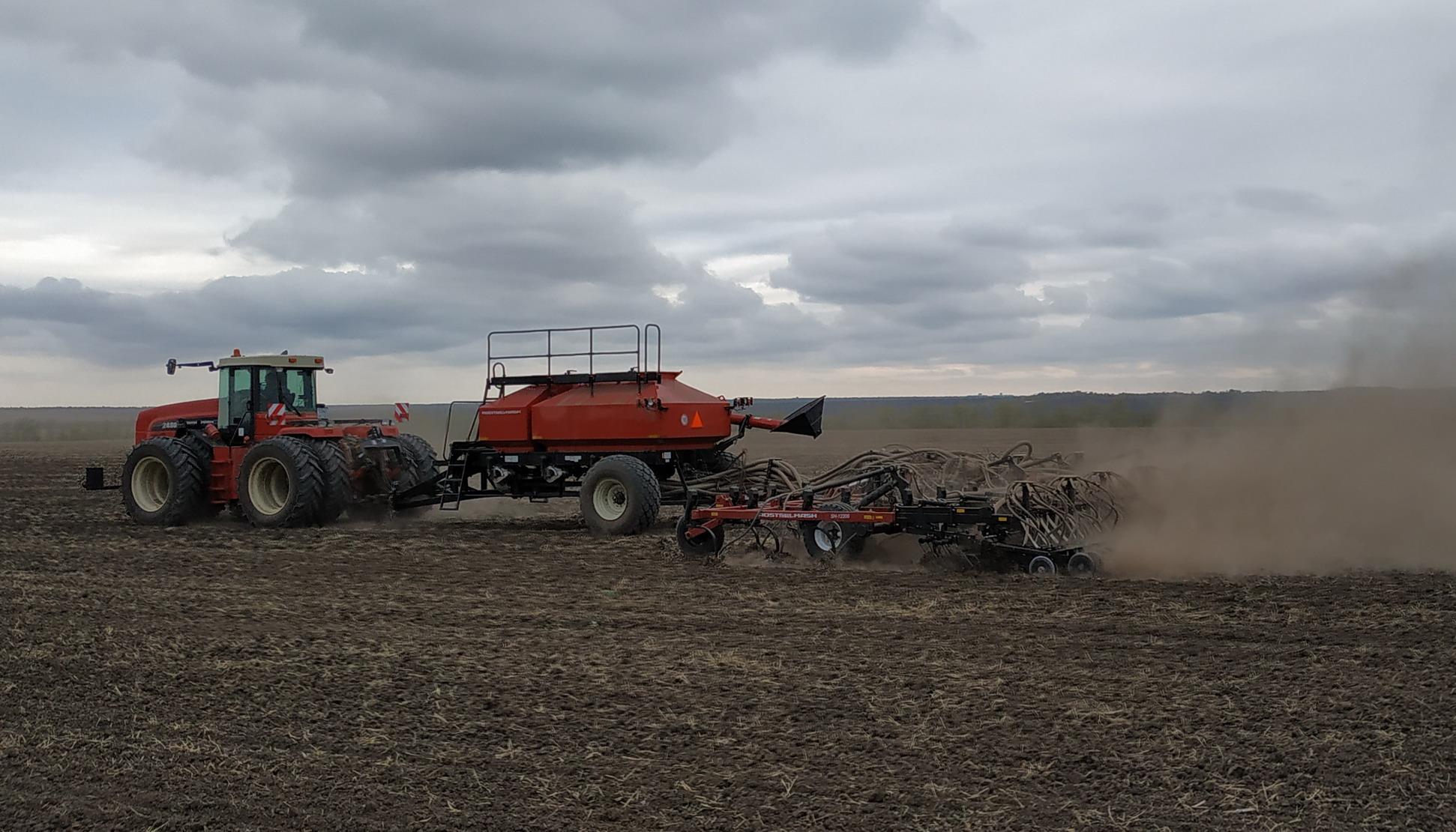

Drills consist of the AT-11 air cart, a cultivating device based on R-series cultivator, and an air-distribution system. The AT-11 air cart provides centralized seed dispensing and delivers it to the drill air-distribution system.
In the SC drill, seeds and artificial fertilizers are directly applied to the under-coulter area of duckfoot tines.
Alternatively, the SH drill applies seeds through double-disk coulters, while artificial fertilizers are applied to the under-coulter area of duckfoot tines across the entire working width. This allows for row seeding of cereals without seedbed preparation.
- Description
- Technical parameters
- Video (2)
- Ask a question
-
Quality advantages of SH/SC Drill
Robust frame
Seeder frame is tremendously rigid and durable, thanks to the use of shaped tubes with a section of 120x80x7 mm. Tubes are made of structural alloy steel and welded together in inert gases according to a well-proven technology
Versatile and free from damages

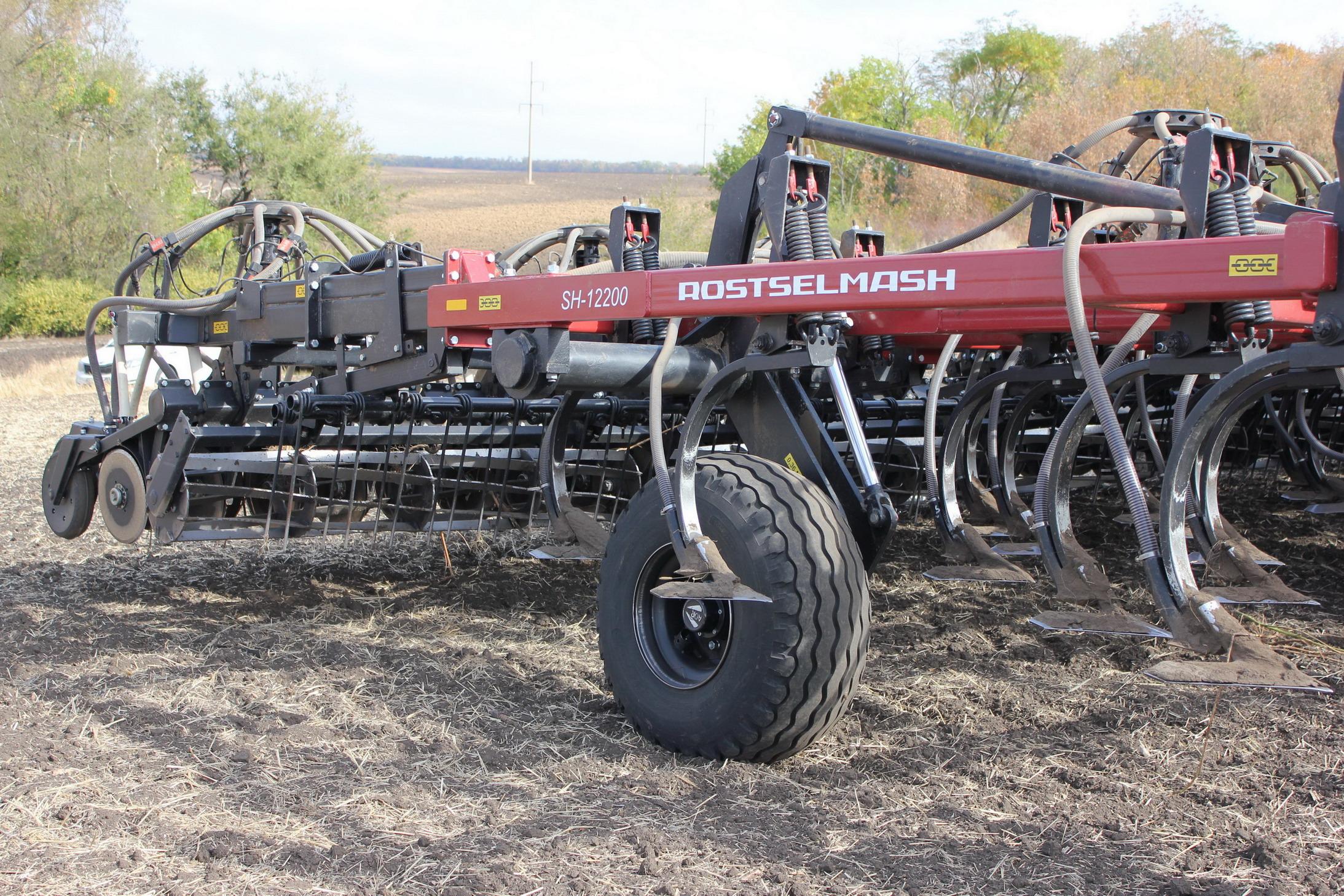

SH/SC drills can be used for various methods of seeding, field cultivation, as well as soil preparation even in tough conditions. The powerful C-shaped tine can withstand loads up to 250 kg, thus ensuring stable movement of duckfoot tines even in tractor tracks, which is important for seedbed preparation
Working depth adjustment
The frame has working depth controls, making it possible to individually adjust the working depth in the drill center and its wings. It ensures an equal working depth across the working width, regardless of the tire deformation degree and wheel sinking
Higher ground clearance
Decent 680 mm ground clearance under seeder frame and 5-row tines arrangement allows you to farm the fields with lots of crop residues. Forget about seeder clogging and extra stops when sowing
SC drill features
In the SC drill, seeds and fertilizers are applied to the under-coulter area of duckfoot tines. Sowing is done with a belt up to 250 mm wide. The wide-width seeding significantly increases the individual feeding area of plants, thus creating optimal conditions for their growth. Even distribution of seed over the field area increases the plant performance
SH drill features
In the SH drill, the duckfoot tines cut weeds, loosen the soil and create an even and compacted seedbed. Artificial fertilizers are applied to the under-coulter area of duckfoot tines across their entire working width, while seeds application is performed through a double-disk coulter. Separate application of seeds and fertilizers at different depth and with different seeding rate positively affects plants growth. Additionally, individual press wheels compact the soil right beneath them -
Specifications Model SH/SС-820 SH/SС-1020 SH/SС-1220 SС-1480 SС-1830 Working width, m 8,2 10,2 12,2 14,8 18,3 Capacity, ha/h, up to 8,2 10,8 12,2 14,8 18,3 Seed placement depth, mm 50…100 Number of duckfoot tines, SH/SC series only, pcs* 33 40 48 58 72 Row spacing (between duckfoot tines), mm 256 Number of disk coulters, SH series only** 56 68 80 - Row spacing (between coulters), mm 150 Weed trimming, %, up to 100 Attachment C-tyne force, kgf, up to 250 Road clearance, mm, not less than 300 Harrow type combined Seeding rate, up to, km/h 10 Aggregated with tractors of the following power, hp 240…305 350…375 375…420 420…550 470…580
*SC series – comes with duckfoot tines only
**SH series – comes with both duckfoot tines and disk coulters -
-
