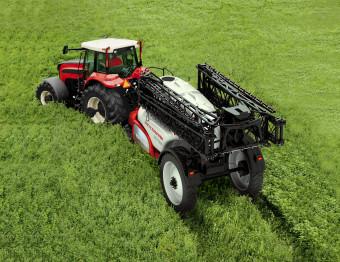

Rostselmash trailer sprayers are reliable and highly efficient machines designed with consideration of all the niceties of agricultural plant spraying for effective field work all around the world.
Application rate of these sprayers can be 40 to 500 liters per hectare at speed of 5 to 18 km/h using 02 and 04 gauge sprinklers. Agent application rate is set by an operator and is automatically maintained at the preset level, regardless of speed variations. Control over any operating process starting from boom position adjustment to liquid spraying is carried out from the tractor cabin. And a computer with GPS/GLONASS receiver performs automatic control of spraying sections and four sprinklers from both sides of the boom to ensure maximum precision of works on plant protection.
As a standard, the sprayer has a pneumatic braking system installed thereon that improves safety of public road trafficking. Automatic boom height control system allows the operating liquid to be distributed over entire operating width with maximum precision and uniformity, thereby additionally improving the plant treatment quality.
- Description
- Technical parameters
- Ask a question
-

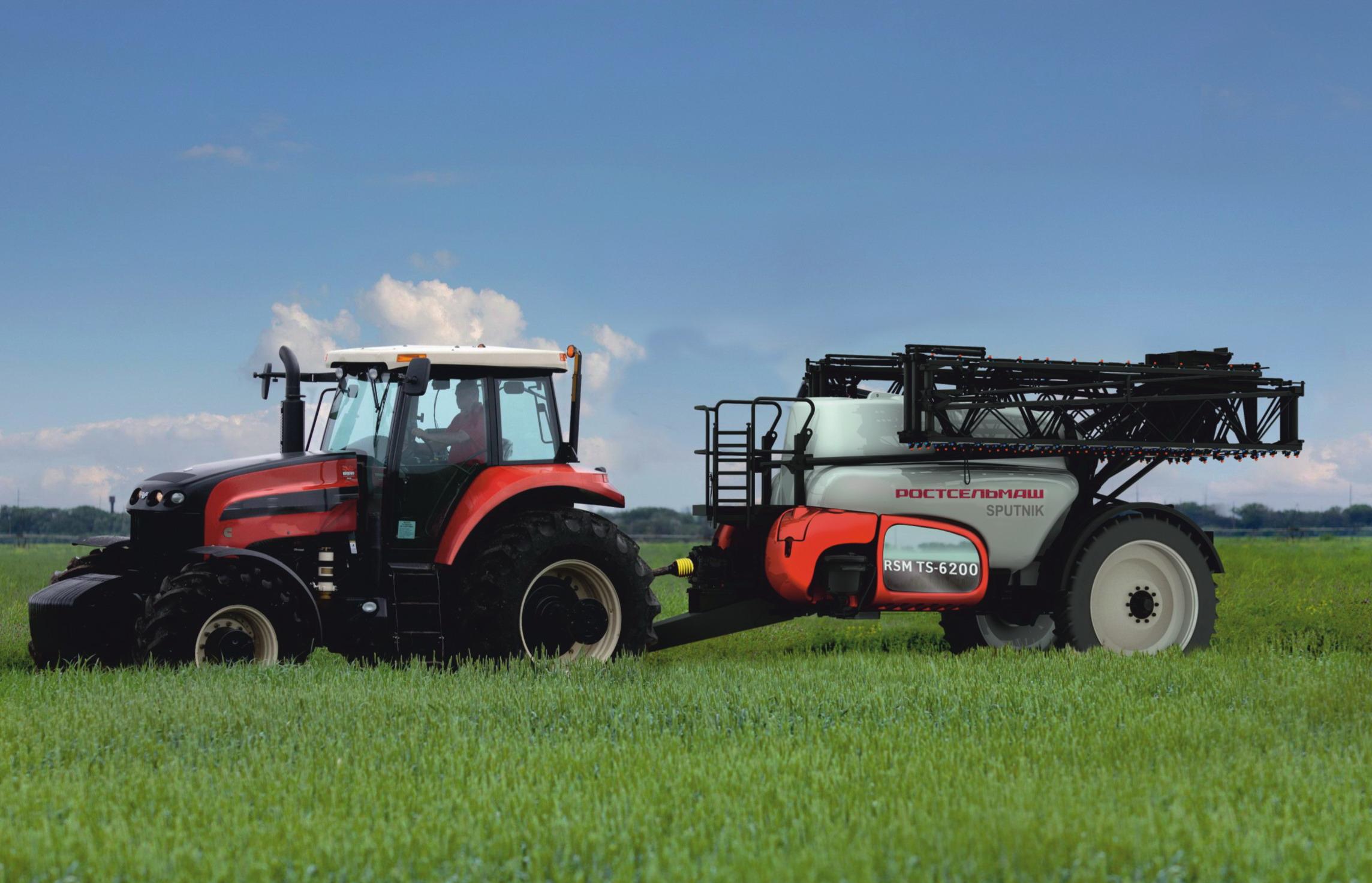

Quality advantages of sprayers RSM TS-6200 Sputnik
Working on Different Crops
Track adjusted within the range of 1.8-2.25 m makes it possible to use the sprayer on any crops with different spacing (45/70/75/90 cm). Options: wheels and tires with standard size of 230/95 R48 paired through 45/70 cm spacer for reduction of pressure on soil, sizes of 380/90 R46, 480/80 R46, 520/85 R46, and 620/70 R46.
Quality Spraying in Strong Wind Conditions
Basic configuration includes triple revolving nozzle holders with injection sprinklers having -02, -03, and -04 standard sizes. This allows to ensure efficient work even with the wind speed of up to 8-10 m/s.
Boom LED Backlight
It provides full control over the plant treatment process. Individual illumination of nozzles allows overall dimensions of the machine to be seen perfectly well and operability of each sprinkler on the boom to be determined with absolute precision
Absolute Precision
Control computer with GPS/GLONASS allows for automatic switching on/off of spraying sections and 4 outermost nozzles on the left and right sides, additionally improving treatment quality in case of overlapping with already sprayed areas, and it provides essential cost saving
Uniform Spraying
Closed-loop system ensures operating liquid circulation. Boom sections are always filled with the operating liquid, and this guarantees simultaneous spraying through nozzles all over the operating width with a precisely set application rate. Because of this, the quality of application and uniformity of agent distribution are improved
Hitch Tongue Damping
Hitch tongue includes its own oscillation damping system: 4 dampers placed between the frame and hitch tongue. Dampers flawlessly dampen oscillations generated in the tractor and trailer sprayer hitch which, without doubt, improves agent application quality and prolongs service life of assemblies and units
Boom Height Control System
System utilizes ultrasound boom height monitoring sensors automatic calibration of which takes just a couple of minutes. Spraying height can be set and be automatically maintained at the preset level which allows for performance of works on plant protection quicker and with more precision -
Technical characteristics Model RSM TS SATELLITE 6200 SPUTNIK Liquid tank volume, l 6 200 Boom width, m 24/27/28/36 Basic width of spacingthe sprayer is designed for, cm 45, 70, 75, 90 Liquid feed pump/drive 0,5-2,5 Liquid feed pump/drive Diaphragm and piston type/from tractor PTO shaft Pump capacity, l/min 260 and 430 (only for 36m boom) Clearance, m 0,7 Track adjustment, m 1,8…2,25 Overall transport width, m 2,25 Water tank capacity, l 15 Capacity of the flushing system tank, l 620 Chemical mixer capacity, l 40 Hydraulic stirrer of ejector type Series GPS/GLONASS Series Spraying control system Agronavigator-plus “Agrosoyuz” Injection sprinklers (-02, -03, -04) Series Automatic switching on/off of sections Series Automatic switching on/off of 4 outermost nozzles on the right and left sides Series Protection of outermost boom sections Series Individual boom nozzle backlight Series Pneumatic brake system Series 20 m hose for extraction of water from external sources Series -
