Trailer sprayers
Forage-harvesting machinesFertilizationGrain-processing machinesAdapters for harvesting machinesMunicipal machinesTillage equipment
-Trailer sprayers RSM TS-3200/4500

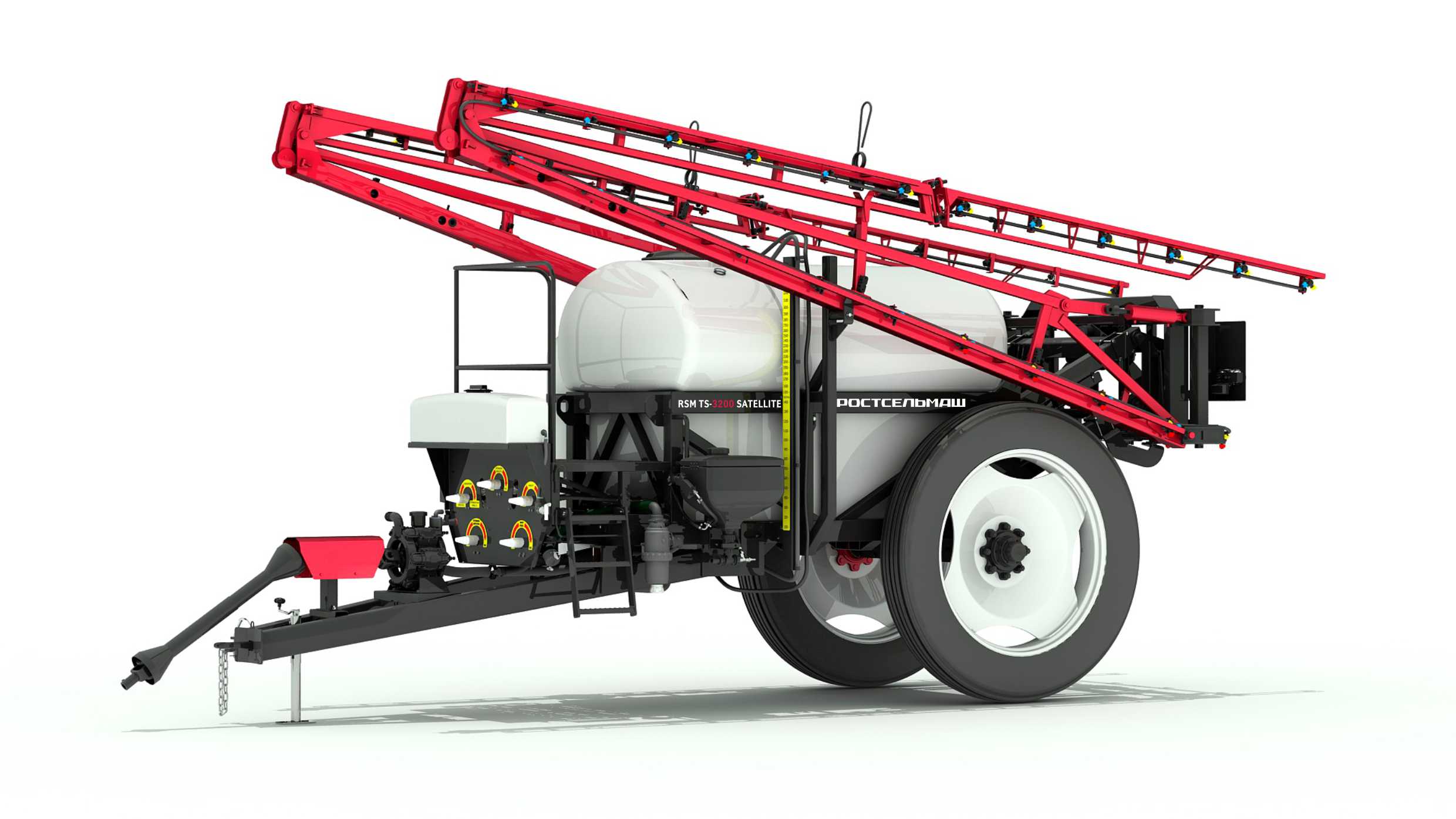

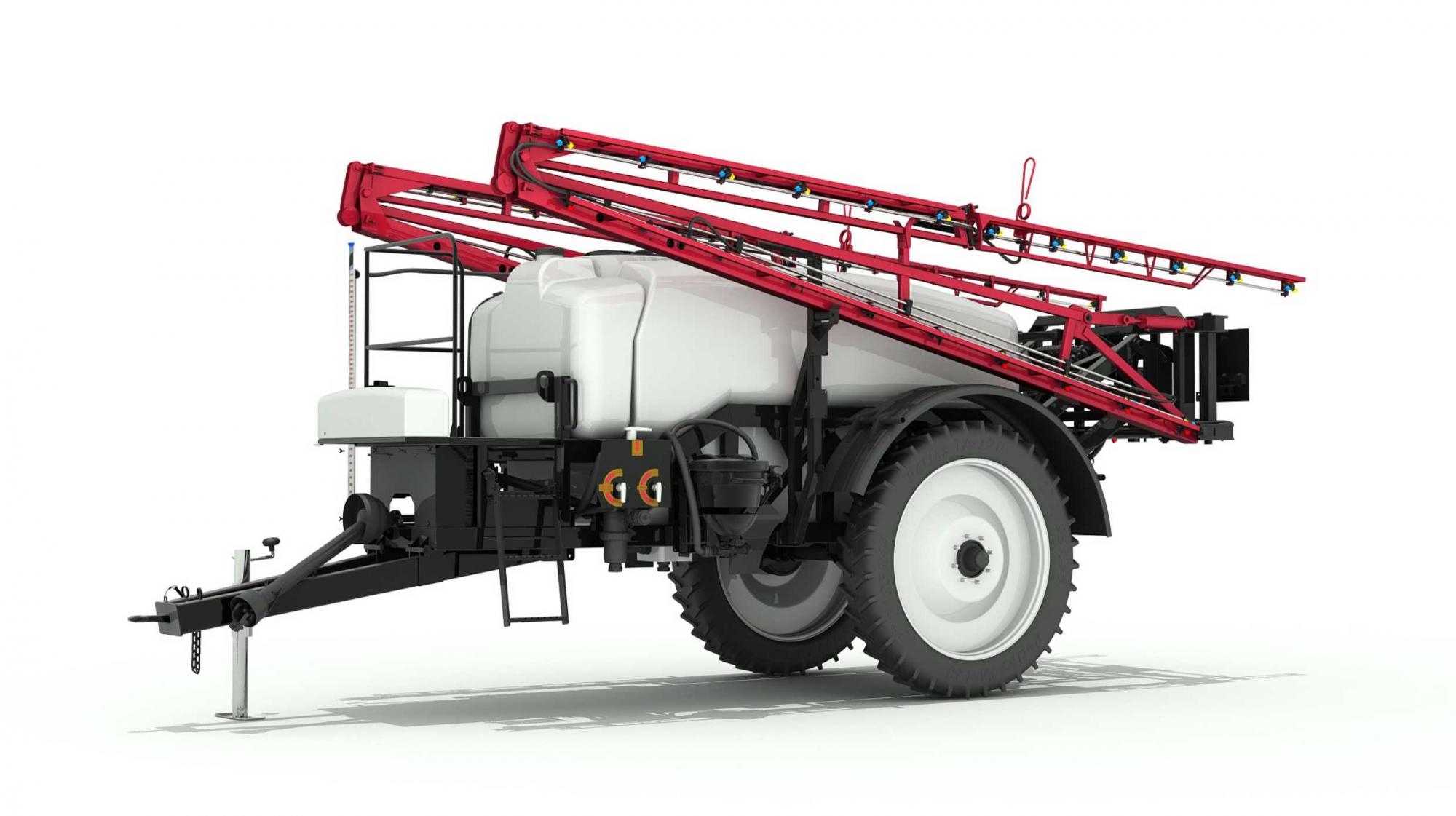

Trailer sprayers RSM TS-3200/4500


  • Trailer sprayers RSM TS-3200/4500
  • Trailer sprayers RSM TS-3200/4500
  • Trailer sprayers RSM TS-3200/4500
  • Trailer sprayers RSM TS-3200/4500
  • Trailer sprayers RSM TS-3200/4500
  • Trailer sprayers RSM TS-3200/4500
  • Trailer sprayers RSM TS-3200/4500
  • Trailer sprayers RSM TS-3200/4500
  • Trailer sprayers RSM TS-3200/4500
  • Trailer sprayers RSM TS-3200/4500
  • Trailer sprayers RSM TS-3200/4500
  • Trailer sprayers RSM TS-3200/4500
Order
Объем бакаДлина штангиСтабилизация штанги HenshenКолеяОбъем миксераПроизводительность насосаGPS навигаторАвтоматическая система поливаНорма выливаРасстояние между форсункамиТрехкорспусное крепление форсунокНеобходимая мощность трактора

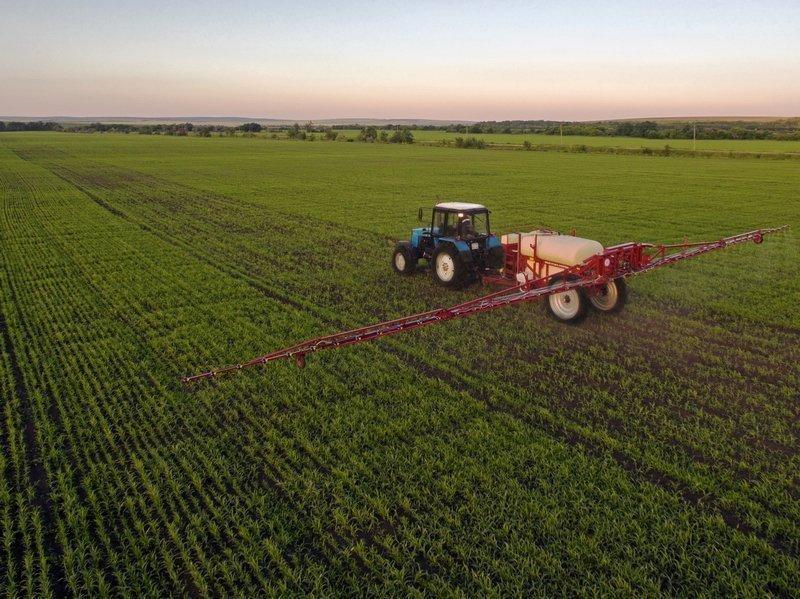

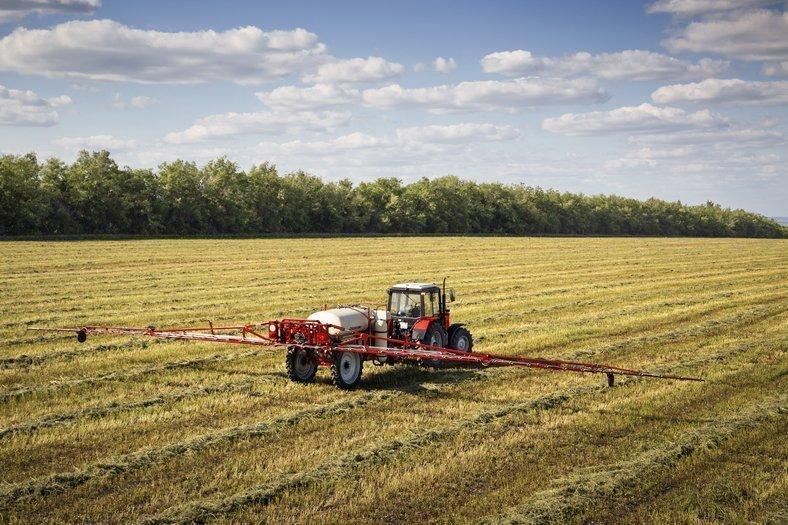

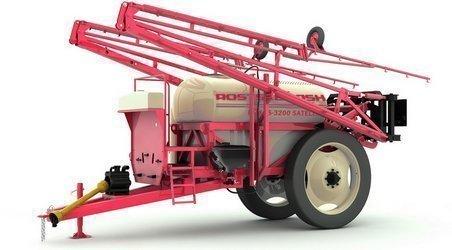

The trailer sprayers produced by Rostselmash are reliable and high-performance machines designed taking into account all the nuances of the process of spraying agricultural plants for efficient operations in fields all over the world.
Our machines are equally efficient in cases of their use in technologies both complete and stripe-type covers. Solution feeding is performed by means of a diaphragm piston pump with a function of self-pumping. Our sprayers are able to apply from 40 to 600 liters of solution per hectare at the speed from 5 up to 18 km/h with the 02 and 04 calibre injection nozzles. The solution rate of application is set by the operator and is automatically maintained at a specified level regardless of the speed of movement, and a computer equipped with a GPS / GLONASS receiver  controls automatically (switching on / off) the irrigation sections. Our sprayer are able to apply from 60 to 400 liters of solution per hectare at the speed up to 15 km/h. The standard of solution application is set up by an operator and automatically maintained at the specified level without regard to travel speed, and a computer equipped with a GPS-receiver perform automatic control (switching on/off) of watering sections.
Control of any process from adjustment of the boom position to solution spraying is performed by means of remote panels in the tractor cab. The sprayer is driven by the tractor OTP shaft.

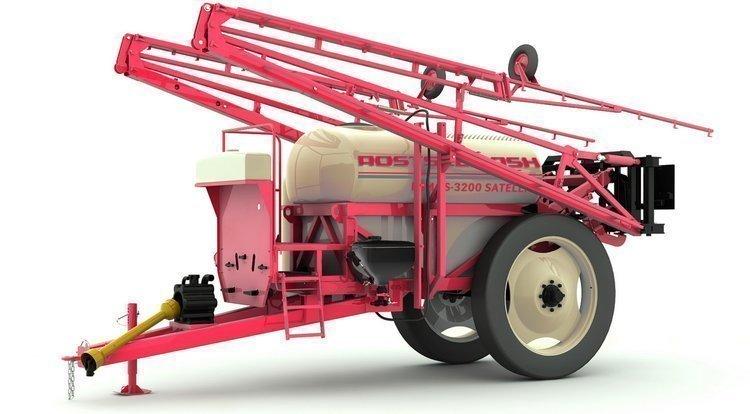

RSM TS-3200 Satellite sprayers are the embodiment of reliability, long operational life, and quality. The sprayers are just the machines which will bring you joy due to their high performance, spraying accuracy, and control simplicity. Rostselmash’s trailed sprayers are good investment, which will bring profit for many years.
Standard equipment:
  • Control computer with GPS direction indicator function
  • Automatic GPS switching on/off watering sections in case of overlap of treated areas
  • Injector nozzles having three dimensions: -02, -03, -04
  • 20 meter long water extraction hose
  • Boom nozzle LED lighting
Options:
  • Automatic GPS control of the 4 extreme (on each side) nozzles
  • Wide wheels 320/85 R38
  • Air brake system
  • Pressure washer with an inertial reel and spraying gun for the external cleaning needs
  • Supplementary tank for cleaning system

Trailer sprayers RSM TS-3200
Share
About the availability of equipment and basic configuration check at the dealership
  • Description
  • Technical parameters
  • Video
  • Ask a question
  • Quality advantages of sprayers RSM TS-3200/4500 Satellite

    1. Chassis and frame

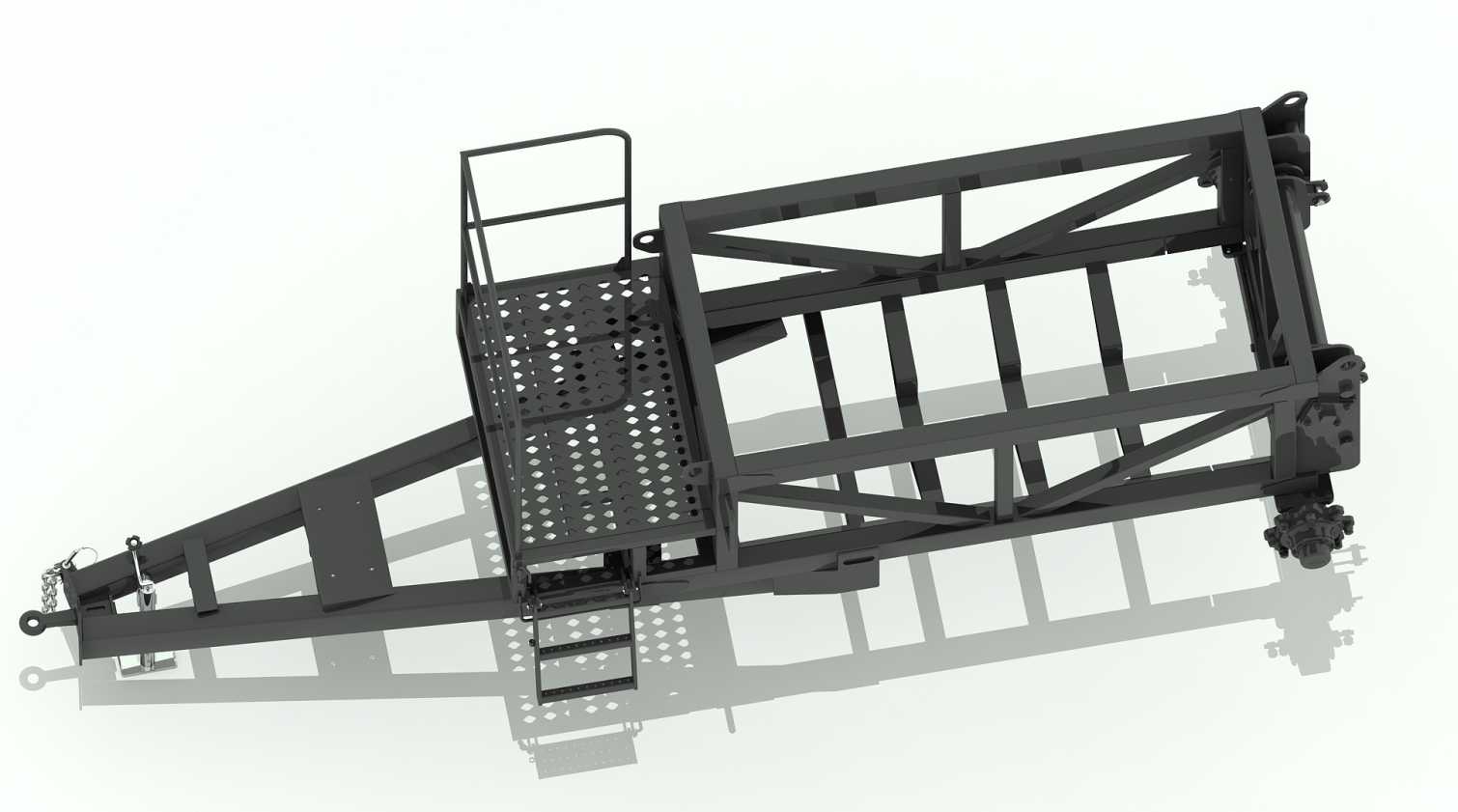

    Reliable and durable frame Reliable and durable frame
    The space frame immune to bend and torsion forces provides reliable fixing and protection of the tank. It provides reliability and secure travel of the sprayer over fields having different relief.
    Due to its low center of gravity the machine has a good stability when running over a field and by a road. To reduce draught resistance the most part of the sprayer total weight is rested on the tractor hitch device.
    Operation with all cultures Operation with all cultures
    The versatile wheeltrack of 1.5-1.8-2.1 m allows using the machine for spraying any kind of cultures with different spaces between rows, and the narrow tires with the width of 270 mm allows spraying beetroot without the risk of root damage.
    2. Control unit
    Application accuracy Application accuracy

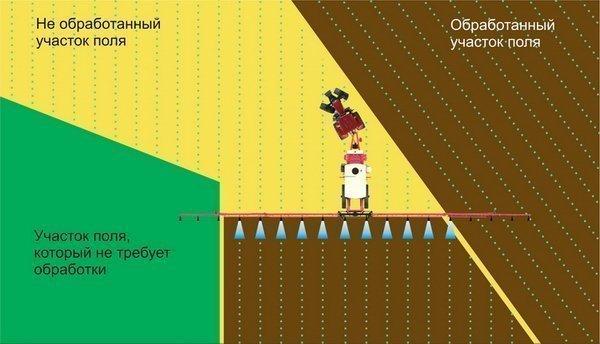

    The sprayer is equipped with a watering control computer having GPS direction indicator function, which allows working according to the technology of accurate farming. The automatic preparations (solutions) flow control unit simplifies the work, enhances the abilities, and increases the sprayer reliability. Besides, the computer allows performing automatic GPS control of watering sections in case of treated areas overlap. The time of the sections switching on /off can be programmed by operators themselves by using overlap percentage ratio.
    Absolute accuracy Absolute accuracy
    Installation of a device for automatic switching on/off of the 4 extreme (right and left) nozzles is optional.
    Operation convenience Operation convenience

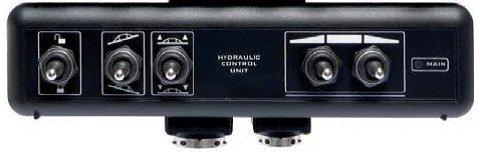

    Boom and its height control system allows changing the height and the angle of treatment promptly.

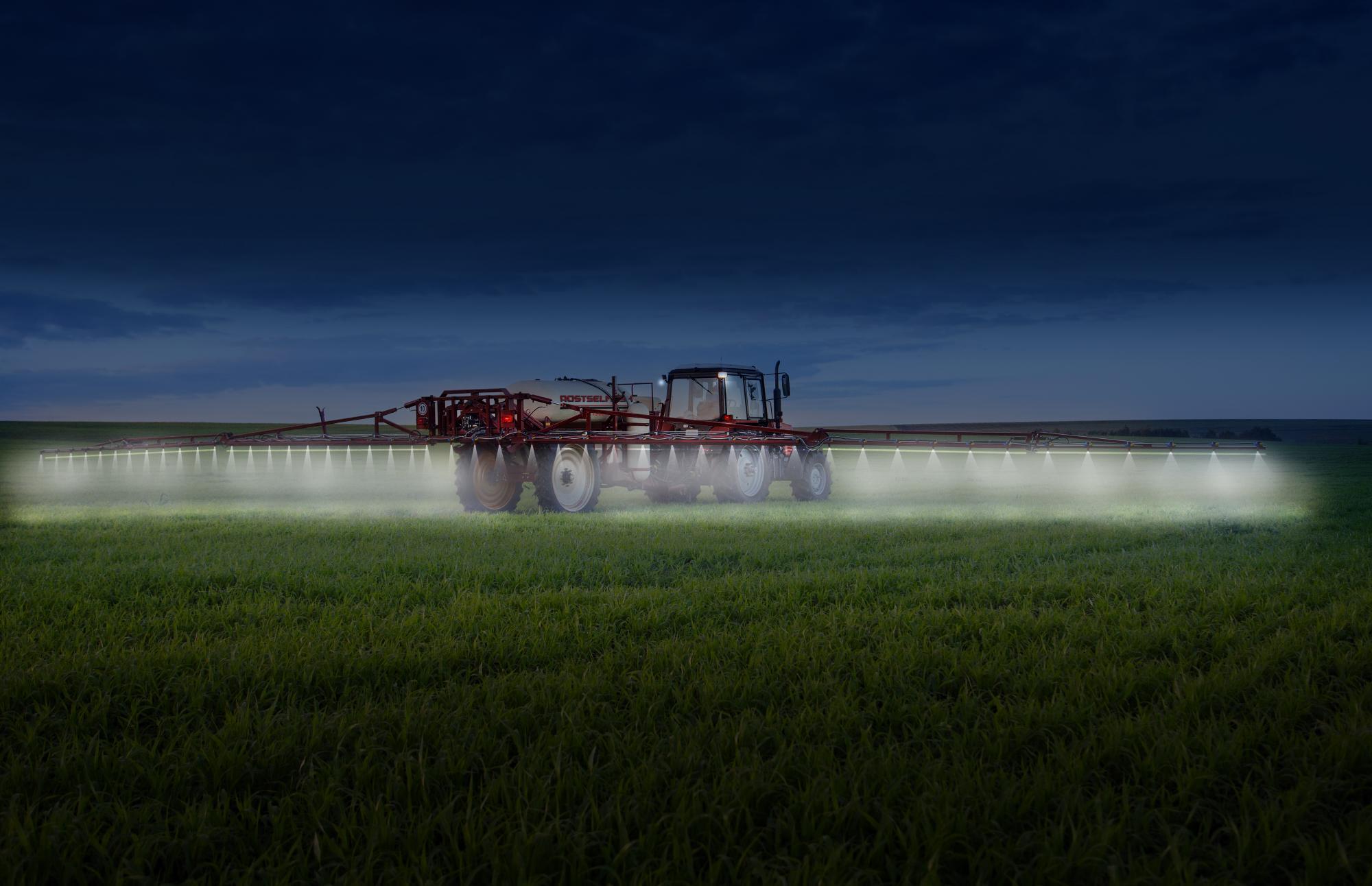

    Boom nozzle LED lighting Boom nozzle LED lighting
    Gives full control over the processing of plants. Single-nozzle lighting allows to see the machine dimensions perfectly, and accurately determine the working capacity of each nozzle on the boom.
    3. Control pulpit

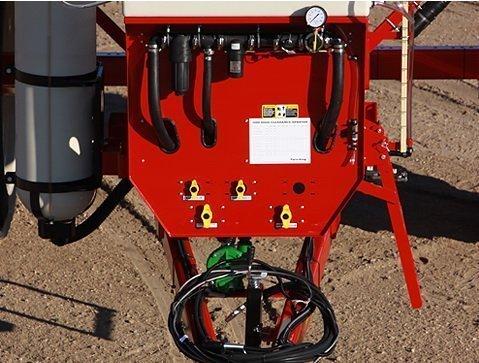

    Centralized control pulpit Centralized control pulpit
    The increased focus in the design of sprayers is implemented on elements such as flow control and operation flow control systems, as well as chemicals feeding system. The centralized control pulpit allows perform all basic operation: tank and sprayers system rinsing, mixer switching on/off system. After the filling and rinsing an operator can wash his/her hands and protective clothes with clean water extracted from a special tank with the capacity of almost 56 liters.
    High maintainability High maintainability
    Application of modular approach in the design of watering equipment (taps, fittings, pipes) provide the highest possible maintainability, and the use of simple, robust, and reliable globe taps allows avoiding idle periods, which is especially important for work within short agricultural terms, when every minute is extremely important.
    4. Booms and sprayers
    Smooth operation Smooth operation
    The nozzles spray water solution evenly and strictly in a specified direction. The patented system of boom hitching provides unshocked run and smooth adjustment of the boom height.

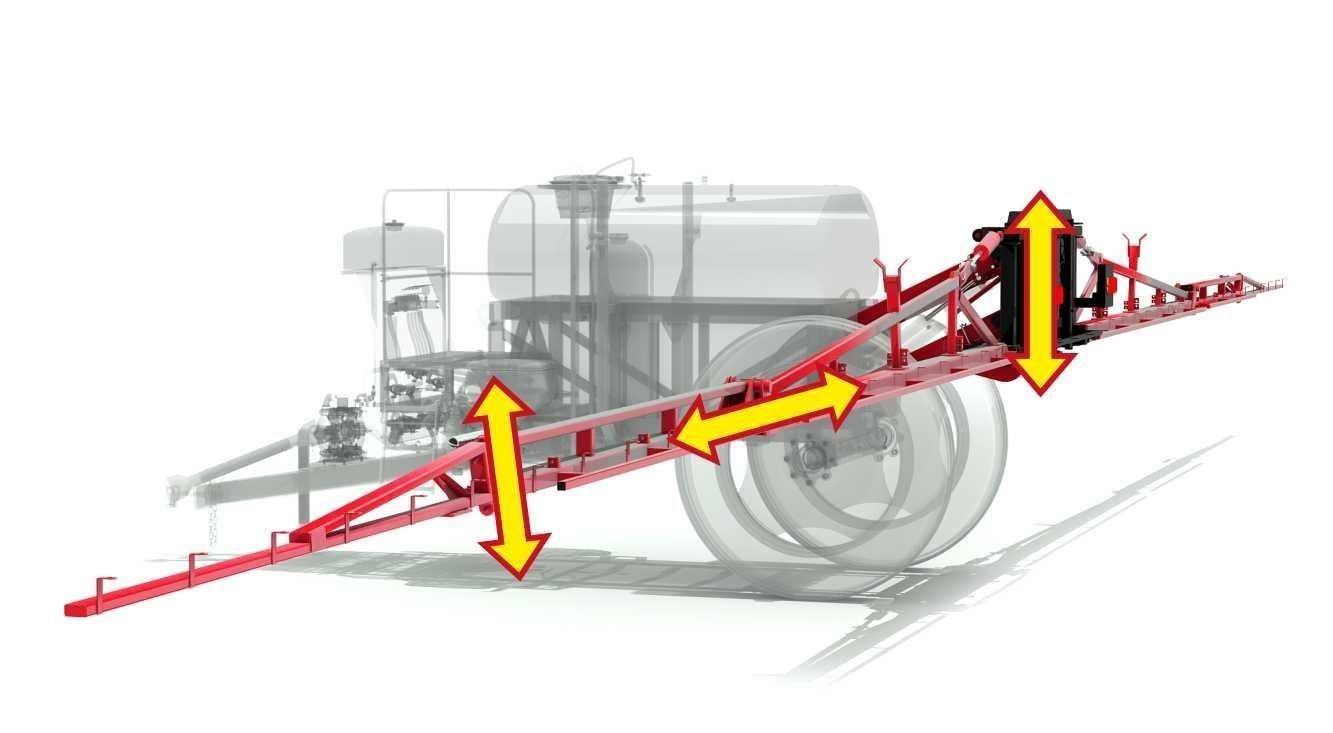

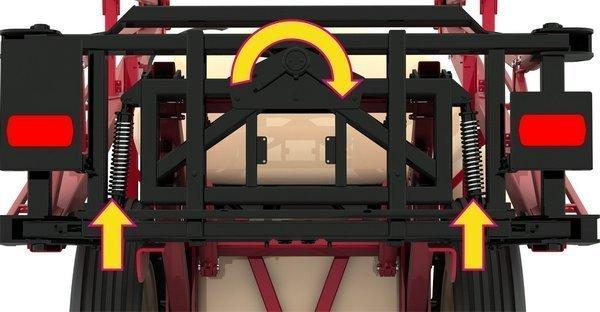

    Damping horizontal oscillations Damping horizontal oscillations

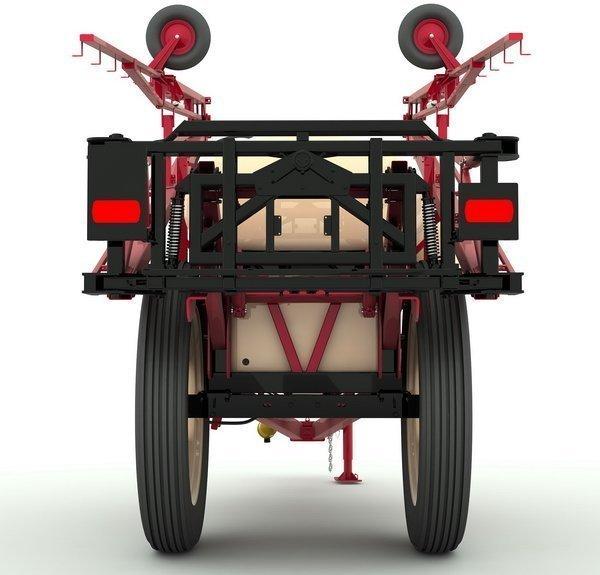

    The pivot axis of the boom is in its highest point, which provides self-alignment according to the principle of pendulum action. Additional springs and shock-absorbers provide stabile position of the boom during operation even on complex agricultural background.
    High-efficient protection of the extreme section and differently oriented articulated links of the mechanical sections provide high-efficient damping of horizontal oscillations.

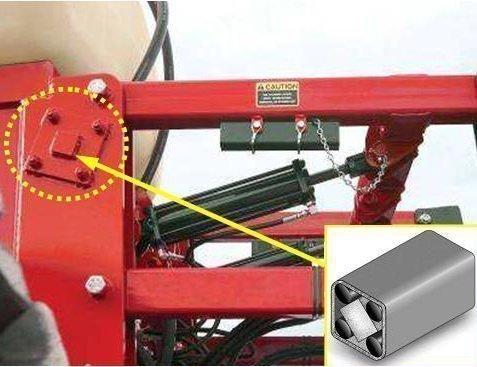

    Unique system of damping horizontal oscillations Unique system of damping horizontal oscillations
    The rubber-metal element produces by Henschen excludes the possibility of boom oscillations and do not need maintenance.
    Reliable damping vertical vibration system Reliable damping vertical vibration system

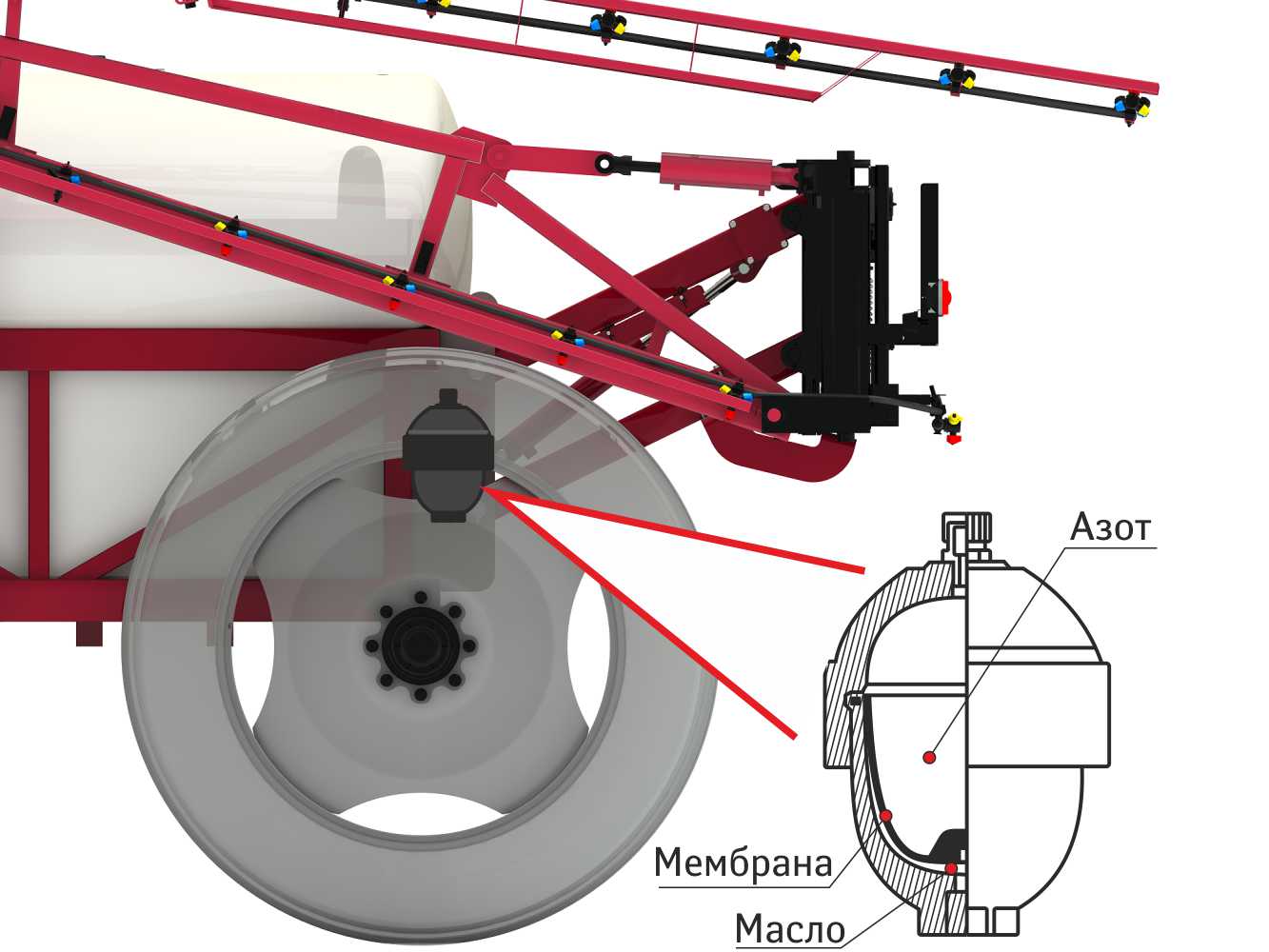

    The trailer sprayers Satellite use a reliable solution for damping vertical vibrations - hydropneumatic accumulator (with nitrogen pumped in under pressure) - which exclude boom oscillations and require minimal maintenance.

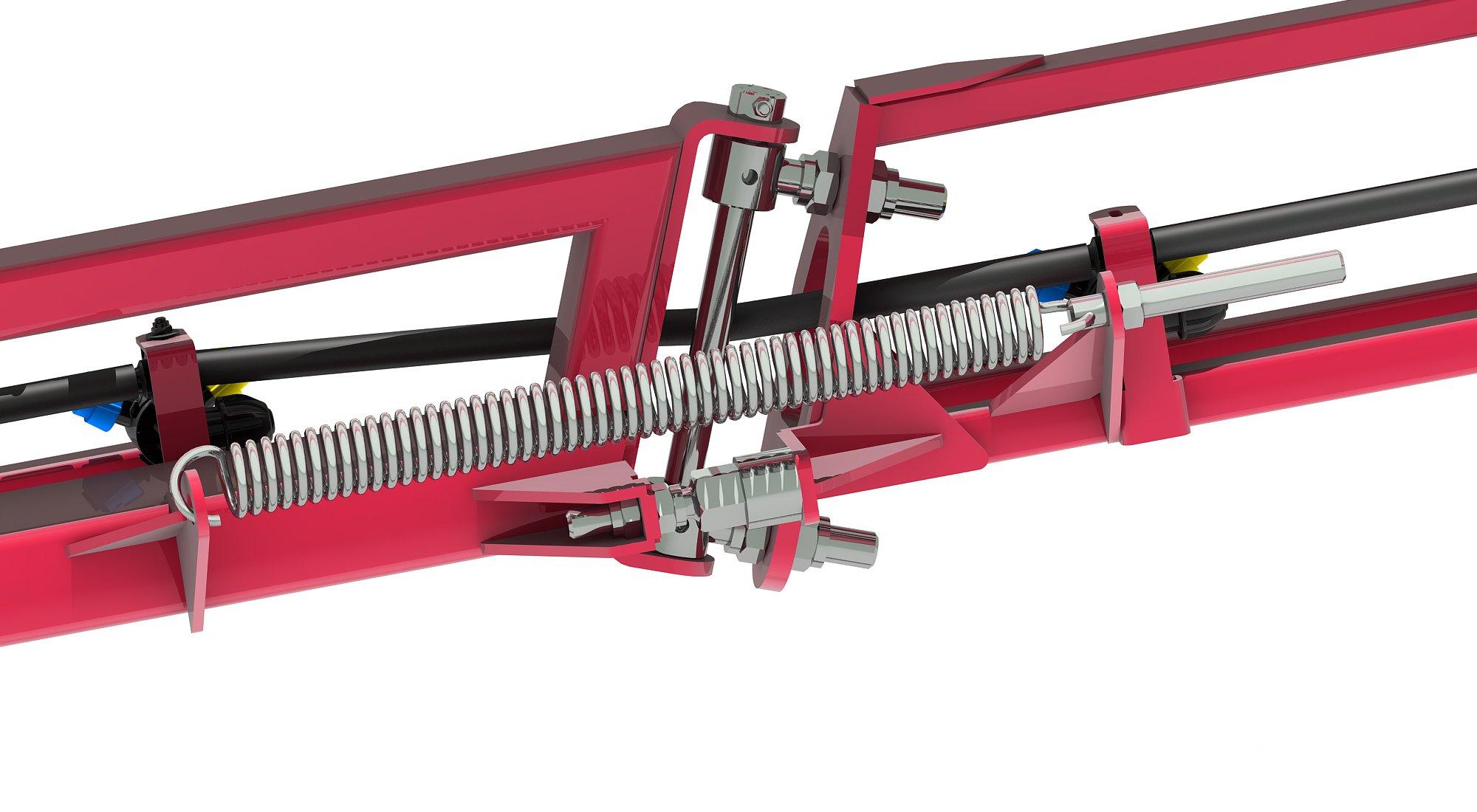

    Protection of the outer boom sections Protection of the outer boom sections
    The boom is equipped with shockproof links, which when in contact with an obstacle, deflect 60° back and 20° up. The shockproof links are returned to their original location due to the action of the spring and their own weight.
    Injector sprayers Injector sprayers Injector sprayers
    The basic equipment includes triple nozzle holders and revolver-type injector sprayers (-02, -03, -04), which allows operating more efficiently under windy weather conditions even when the speed of wind is up to 8-10 m/sec.
    Application rate range at the speed of 10 km/g, l/ha:
    • 67-310 – when using sprayers (-02 yellow, -03 blue, -04 red)
    • Up to 500 when using sprayers (-06 grey)
    • Up to 600 when using sprayers (-08 white)
    5. Sprayer tank and chemical mixer
    Improved mixer Improved mixer
    There is an active chemical mixer of increased capacity (40 liters) installed on the sprayer. At allows mixing both liquid and powder preparations efficiently and with a high performance providing high quality preparation of working mixture.

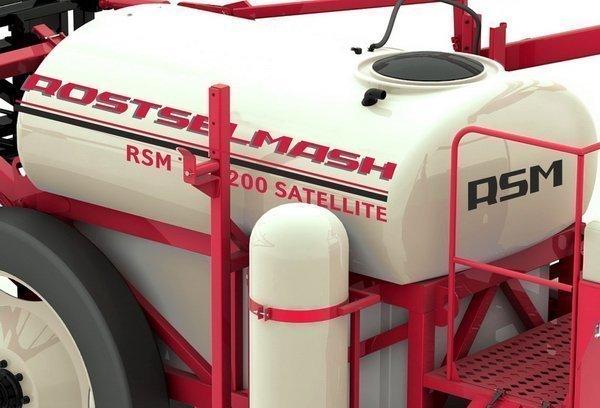

    Solid-cast tank Solid-cast tank
    The solid-cast solution tank is made of special plastic, and the thickness of its walls is 15 mm. It provides high operation characteristics, and its absolutely smooth inner surface excludes solid particles sedimentation of the wall of the tank. The drain channel along the whole length of the tank having the depth of 10 cm provides high-quality and complete feeding of solution to the pump at different angles of tilt of the sprayer. The channel ends in a water well having the depth of 25 cm, which helps to prevent operation of the pump in dry condition.
    High performance High performance
    The high-performance diaphragm piston pump (260 l/min) provides even application of preparations, high-quality preparation of working fluid and active mixing of solution for maintaining stable concentration. The application rate is from 60 to 500 L/ha. Thus, Satellite 3200 can be used for full-volume and low-volume spraying – the most advanced methods of chemicals application.
    The filters with the function of self-cleaning installed on the intake and pressure lines efficiently remove mechanical impurities providing high-quality filtration of solution, increase the convenience of operation, and reduce the machine maintenance time .

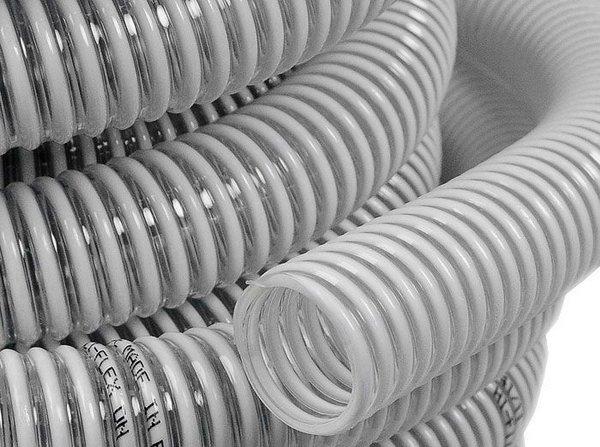

    Water self-intake Water self-intake
    20 meter long water intake hose with a non-return valve and a filter increases the convenience and the operational independence of the machine and allows using the own pump of the sprayer for self-pumping (self-intake) of water from external sources and water reservoirs.

    Documents

    Certificate of Conformity_09.06.2023_Trailed Sprayers Satellite Размер: 483,4 кб
  • Technical characteristics
    Model RSM TS-3200 Low-cost RSM TS-3200 Light RSM TS-3200 Satellite RSM TS-4500 Satellite
    Can be aggregated with tractors of the following drawbar category, h.p. 1,4 2
    Solid-cast tank capacity, L 3 200 4 500
    Operating width, m 18, 24, 27, 28 24, 27, 28, 36
    Basic row width, for which the sprayer is designed, cm 45, 70, 75, 90
    Boom height adjustment, m, min / max 0,5/1,7
    Solution supply pumps diaphragm piston
    Pump transmission from PTO shaft
    Piston pump capacity, l/m 260 or 430 (only for 36m boom)
    Clearance, m 0,7
    Tire size 270/95 R44 (basic), 230/95 R44, 270/95 R42
    Wheel adjustment, m 1,5/1,8/2,1 1,8…2,25
    Overall transport width, m 2,25
    Water tank capacity, l 56
    Tank capacity for cleaning system, l Option (136) 136 136 430
    Supplementary tank for cleaning system, 136 l. Option Option Option -
    Pressure washer with the inertial reel Option Option Option Option
    Chemical mixer capacity, l Option (40) 40 40 40
    Hydraulic mixing machine, ejection type Series Series Series Series
    GPS/GLONASS navigation Option Option Series Series

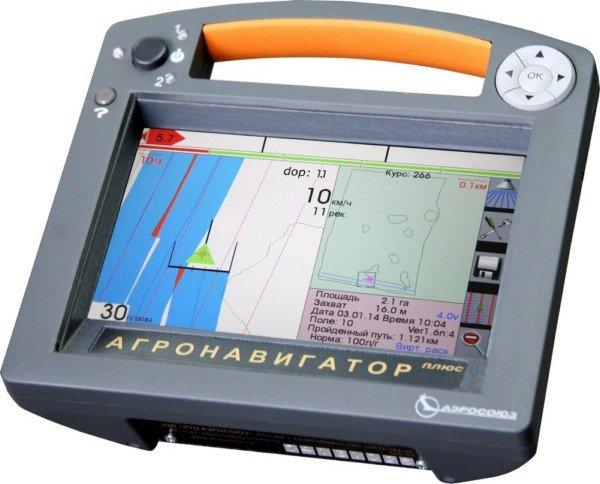

    Wetting controlling system Agronavigator-plus "Aerosoyuz " Option Option Series Series
    Irrigation control system GeoSystem-240 (Bravo 180) Option Series - -
    Injection nozzles (-02, -03, -04) Option Series Series Series
    Slot-type sprayers Series - - -
    Automatic on / off of sections Option Option Series Series
    Auto off / on of the 4th extreme nozzles on the right and left Option Option Option Series
    Protection of the outer boom sections Series Series Series Series
    Boom nozzle lighting Option Option Series Series
    Installation of two headlights on the frame - Series - -
    Air brake system Option Option Option Series
    20 meter long water extraction hose Option Option Series Series
