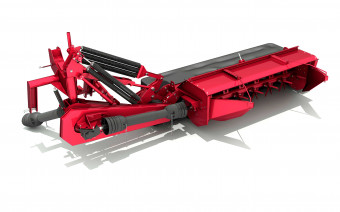

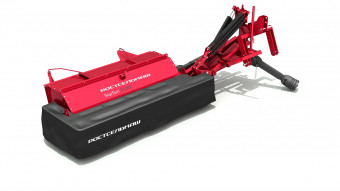

SapSun rotary mower with conditioner will help to achieve the quality standard of hay. It is designed for operation with high-yielder and laid grass. At high forward speeds of 9-15km/h, the machine performs clean mowing, without any problem fluffs and lays the mass into uniform roll. Multifunctional ability of the mower will please the most exacting customers: the machine can also be used for mowing grass and laying it into swath. Such ability appears when working with removed conditioner. The mower provides care of the future crop. And for this purpose, the rotor speed gains 2850 rpm during operation, that not only provides clean cut, but also protects the upper soil layers and grass roots.
Option: cutting discs with three blades.
SapSun rotary mower with conditioner will help to achieve the quality standard of hay. It is designed for operation with high-yielder and laid grass. At high forward speeds of 9-15km/h, the machine performs clean mowing, without any problem fluffs and lays the mass into uniform roll. Multifunctional ability of the mower will please the most exacting customers: the machine can also be used for mowing grass and laying it into swath. Such ability appears when working with removed conditioner. The mower provides care of the future crop. And for this purpose, the rotor speed gains 2850 rpm during operation, that not only provides clean cut, but also protects the upper soil layers and grass roots.
Option: cutting discs with three blades.
About the availability of equipment and basic configuration check at the dealership
- Description
- Technical parameters
- Video
- Ask a question
-
Quality advantages of mounted rotary mowers SapSun
Exemplary quality of hay
Due to special design, the knives throw the mowed mass upwards and backwards along the moving of cutting bar. Thus, when mowing high-yielder grass at high speeds, there are no obstructions in front of the bar, and the mowed mass is not cut twice.
Careful attitude to the root system
The mower does not damage the roots of the mowed culture during operation at speed of 15km/h. It happens due to high rotor speed – 2850 rpm – which increases efficiency, resumption of meadows and possibility of good crop during next mowing.
Fast and easy forage processing
Conditioner with V-type steel flail knives provides uniform fluffing of forage mass along the whole width of grip. The result is shorter period of forage drying on the field and uniformity of drying due to which the highest forage quality is obtained.
Reliable and trouble-free operation
Reliable tensioning device with a soft, but strong spring provides effective tension, continuous and smooth operation of the belt drive, trouble-free and smooth operation of the belt drive.
Reliability of operation and protection from obstacles
When hitting an obstacle, the towing safety device is activated preventing destruction of the machine.
Minimal power consumption
Active cylindrical supply roll on the outer rotors cutterbar direct the crop to the center. Therefore, the crop does not get to have not grass clippings at the next entry of the tractor. Minimum energy costs Active cylindrical feeding drums installed on the end rotors of the cutting beam direct the mowed mass to the center. Therefore, the mowed mass does not get on to the non-mowed grass at the next running of tractor.
Fast aggregating
Convenient and reliable 3-point hitch reduces the time required for mower aggregating with tractor.
Ease of maintenance
Maintenance of SapSun is extremely easy and does notrequire special tools and equipment.
Option: disc plate with three knives.
Discs with three knives (supplied optionally) rotating in opposite direction to each other provide greater overlap on each disk in comparison with discs with two knives. That means:
- 30% reducing load on the rotor discs;
- Fuel savings;
- The uniformity of the process of mowing;
- guarantee of clean cut of stubble in any weather, including wet conditions
-
Technical specification Type Mounted Efficicency, ha/h, up to 3,0 Working width, m, up to 2,4 Mower weight, not more, kg 920 Rotor rpm, up to 2850 Rotor rpm of conditioner, up to 750 Drive Tractor PTO Tractor PTO rpm 540 Consumed power, kW/h.p., not more than 46 Operating forward speed, km/h, up to 15 Plant cutting height, cm±2 8±2 -
-
