Forage-harvesting machines
Forage-harvesting machinesTrailer sprayersFertilizationGrain-processing machinesAdapters for harvesting machinesMunicipal machinesTillage equipment
-
Mowing
RakingPressingAdapters to forage-harvesting combines
-Rotary mower Strige

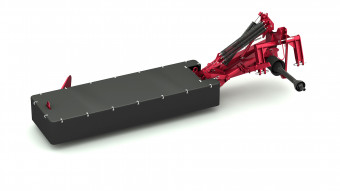

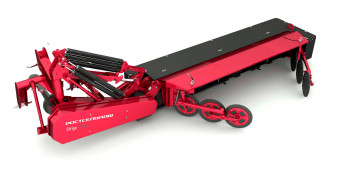

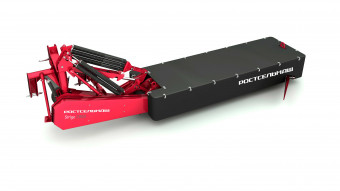

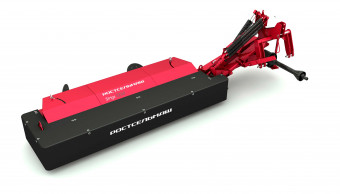

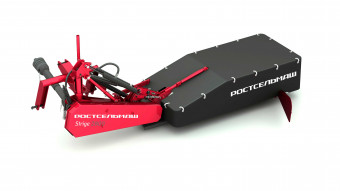

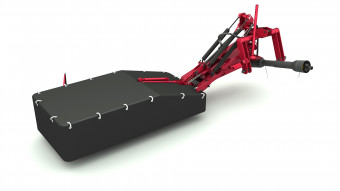

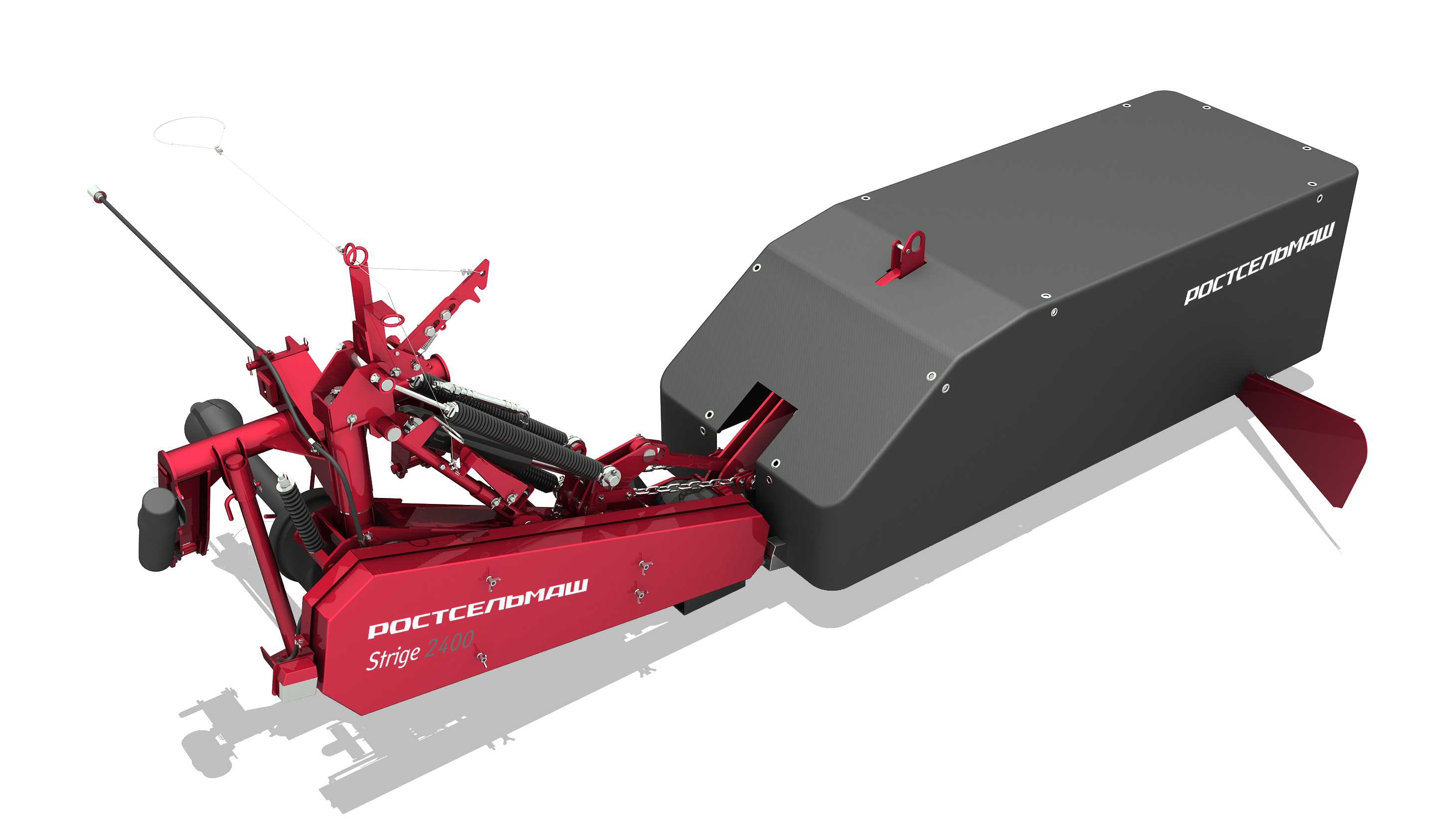

Rotary mower Strige


  • Rotary mower Strige
  • Rotary mower Strige
  • Rotary mower Strige
  • Rotary mower Strige
  • Rotary mower Strige
  • Rotary mower Strige
  • Rotary mower Strige
  • Rotary mower Strige
  • Rotary mower Strige
  • Rotary mower Strige
  • Rotary mower Strige
  • Rotary mower Strige
  • Rotary mower Strige
  • Rotary mower Strige
  • Rotary mower Strige
  • Rotary mower Strige
  • Rotary mower Strige
  • Rotary mower Strige
  • Rotary mower Strige
  • Rotary mower Strige
  • Rotary mower Strige
  • Rotary mower Strige
  • Rotary mower Strige
  • Rotary mower Strige
Order
Working widthWorking widthWorking widthEfficiencyRotor knivesRotor speed, rpmLightWarranty
Strige series mowers are the most lightweight in their class. Due to this aspect, machines Strige 2100/2400/2800 provide minimal fuel consumption and pressure on soil, as well as excellent copying of the field relief. At sufficiently high operating speed, reaching 15km/h, the machines ideally mow high-yielder and laid grass, and uniformly lay the cut grass masses into swath. «Strige 2800»-series mowers due to specially designed cutterbar, that includes three guiding conveyors and field divider, allow to mow mass and lay into even roller widths up to 1.6 m. Continuous functioning of Strige will nicely surprise even the most exacting agricultural goods producers. The mowers will diligently perform their work, demonstrating excellent results. At PTO rotational speed of 540 rpm, they are aggregated with tractors of 0.9-1.4 t.s. drawbar category.
Option: cutting discs cutting discs with three knives (only for Strige-2.4).
Share
About the availability of equipment and basic configuration check at the dealership
  • Description
  • Technical parameters
  • Video
  • Ask a question
  • Through the use of imported components of companies specializing on the release of their products and having the vast experience in this field, mounted rotary mower Strige do not concede to analogues of well-known manufacturers.

    Quality advantages of Strige

    Exemplary quality of hay Exemplary quality of hay
    Due to special design, the knives throw the mowed mass upwards and backwards along the moving of cutting beam. Thus, when mowing high-yielder grass at high speeds, there are no obstructions in front of the beam, and the mowed mass is not cut twice. As the result, the hay has high quality and the energy costs are reduced.
    Protective care of root system Protective care of root system
    Due to high rotor speed – 2850 rpm – the mower does not damage the roots of the mowed culture during operation. Strige gains the speed of 15km/h, which increases the efficiency, renewal of meadows and possibility of good crop during next mowing.
    High-quality of mowing without losses and contamination High-quality of mowing without losses and contamination
    Uniform pressure on the soil and dynamic copying are provided by three spiral springs of balancing mechanism. The result is stable and uniform cut, and minimal contamination of the mass.
    Reliable and continuous operation Reliable and continuous operation
    Reliable tension device with soft but strong spring provides effective tension, continuous and smooth operation of the belt drive.
    Minimum time required for aggregating Minimum time required for aggregating
    Convenient and reliable 3-point hitch reduces the time required for mower aggregating with tractor.
    Ease in maintenance Ease in maintenance
    Maintenance of Strige-2.1/2.4/2.8 is extremely easy and does not require special tools and equipment. All 5 lubrication points are easy to access.
    Long-term service life Long-term service life
    When hitting serious obstacles (e.g. hydrants, poles) unseen in grass, the shear protective elements placed on each rotor are saving the cutting beam from critical damage. This prevents the failure of the other elements of the cutter bar. There is no need to disassemble and change all the toothed heels of the cutter bar, it`s enough to change the shear support and the mower is ready to work.
    Protection from obstacles Protection from obstacles
    When hitting an obstacle, the towing safety device is activated preventing destruction of cutting beam. In order to continue operation, it is required to move back and replace only the cutting element.
    Option: disc plate with three knives Option: disc plate with three knives.
    Discs with three knives (optionally supplied for Strige 2,4) rotating in opposite direction to each other provide greater overlap on each disk in comparison with discs with two knives. That means:
    • 30% reducing load on the rotor discs;
    • Fuel savings;
    • The uniformity of the process of mowing;
    • guarantee of clean cut of stubble in any weather, including wet conditions
  • Technical specification
    Model Strige-2,1 Strige-2,4 Strige-2,8
    Type Mounted
    Efficiency, hectare/h, up to 3,0 3,6 4,0
    Working width, m, up to 2,1 2,4 2,8
    Overall dimensions, mm, not more than
    - length
    - width
    - height

    2220
    3700
    1310

    2220
    4200
    1310

    2160
    4600
    1300
    Mower weight, kg, not more than 430 470 550
    Operating speed, km/h, not more than 15
    Number of rotors 5 6 7
    PTO speed, rpm 540
    Rotor speed, rpm 2850
    Consumed power, kW/h.p., not more than 35 40
    Plant cutting, height, cm+2 8
